ACA38L-ANPXKV (2010)
Toyota Rav4
ILLUST NO. 1 OF 2(0511- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53010B1 |
ACA3#,ALA30,GSA33 GRAY,TRIM1# |
1 | ||
| 73023-53010A1 |
ACA33,38;ACA30,31,ALA30..G IVORY,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53010B1 |
ACA3#,ALA30,GSA33 GRAY,TRIM1# |
1 | ||
| 73024-53010A1 |
ACA33,38;ACA30,31,ALA30..G IVORY,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-42320E1 |
ACA33,38..LHD;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 73210-42320B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73210-42331E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73210-42330E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73210-42330B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73210-42331B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-42140E1 |
ACA33,38..LHD;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 73220-42140B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73220-42300B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73220-42300E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73220-42301B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73220-42301E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-42140B2 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73230-42140E0 |
ACA31,33,38..LHD;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-42120B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 73230-42100E0 |
ACA33,38..LHD;ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 73230-42100B2 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73230-42120E0 |
ACA30,33,38,ALA30..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

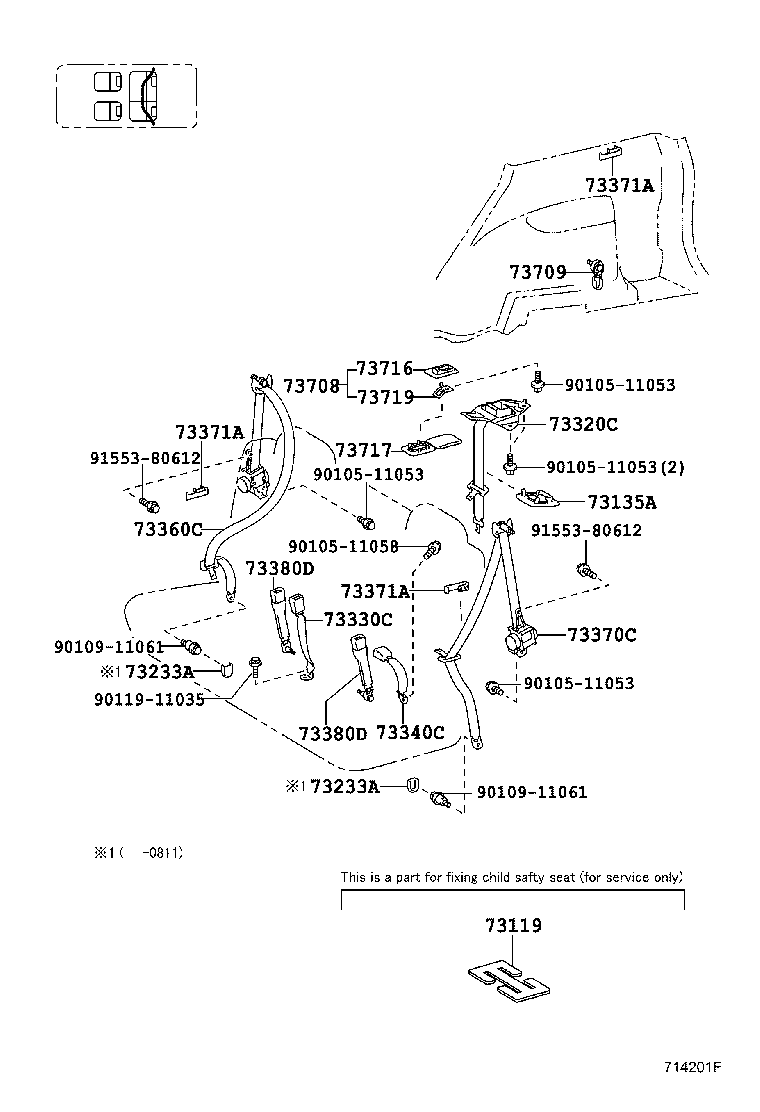

ILLUST NO. 2 OF 2(0511- )ACA33,38,GSA33
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73137-42020A0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) IVORY,TRIM4# |
1 | ||
| 73137-42020B0 |
ACA3#,ALA30,GSA33 GRAY,TRIM1# |
1 | ||
| 73320C - BELT ASSY, REAR SEAT 3 POINT TYPE | ||||
| 73320-42020E1 |
ACA33,38..LHD IVORY,TRIM4# |
1 | ||
| 73320-42020B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73320-42020B5 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73320-42021B5 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73320-42021E2 |
ACA33,38..LHD SAND BEIGE,TRIM4# |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-42090B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73330-42090E0 |
ACA33,38..LHD FAWN,TRIM4# |
1 | ||
| 73330-42090B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-42070E1 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 73340-42070B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73340-42070B5 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73340-42070E3 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE,TRIM4# |
1 | ||
| 73340-42070B2 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-42200B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73360-42200E1 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 73360-42280B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73360-42280E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73360-42281E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73360-42281B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-42110E1 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 73370-42110B3 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73370-42171B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73370-42171E0 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73370-42170E0 |
ACA33,38..LHD SAND BEIGE/IVORY,TRIM4# |
1 | ||
| 73370-42170B3 |
ACA33,38..GCC GRAY,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-42010B0 |
ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-42010B0 |
ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-42010B0 |
ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-42080E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 73380-42080B2 |
ACA33,38..LHD GRAY,TRIM1# |
2 | ||
| 73380-42080B5 |
ACA33,38..GCC GRAY,TRIM1# |
2 | ||
| 73380-42080E3 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE,TRIM4# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-42080E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 73380-42080B2 |
ACA33,38..LHD GRAY,TRIM1# |
2 | ||
| 73380-42080B5 |
ACA33,38..GCC GRAY,TRIM1# |
2 | ||
| 73380-42080E3 |
ACA33,38..LHD;ACA30,ALA3#,ZSA3#..G SAND BEIGE,TRIM4# |
2 | ||
| 73708 - BRACKET SET, TETHER ANCHOR | ||||
| 73708-42030A0 |
ACA33,38..LHD IVORY,TRIM4# |
1 | ||
| 73708-42030B0 |
ACA33,38,GSA33 GRAY,TRIM1# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-42060B0 |
ACA33,38..LHD DK.GRAY,TRIM1#,4# |
2 | ||
| 73716 - PROTECTOR, CHILD RESTRAINT SEAT | ||||
| 73716-42010A0 |
ACA33,38..LHD IVORY,TRIM4# |
1 | ||
| 73716-42010B0 |
ACA33,38,GSA33 GRAY,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-42020B0 |
ACA33,38,GSA33 GRAY,TRIM1# |
1 | ||
| 73717-42020A0 |
ACA33,38..LHD IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-11058 | ||||
| 90109-11061 | ||||
| 90119-11035 | ||||
| 91553-80612 | ||||
