ACA38L-ANPXKV (2010)
Toyota Rav4
Production
Mar 2010
-
Dec 2012
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

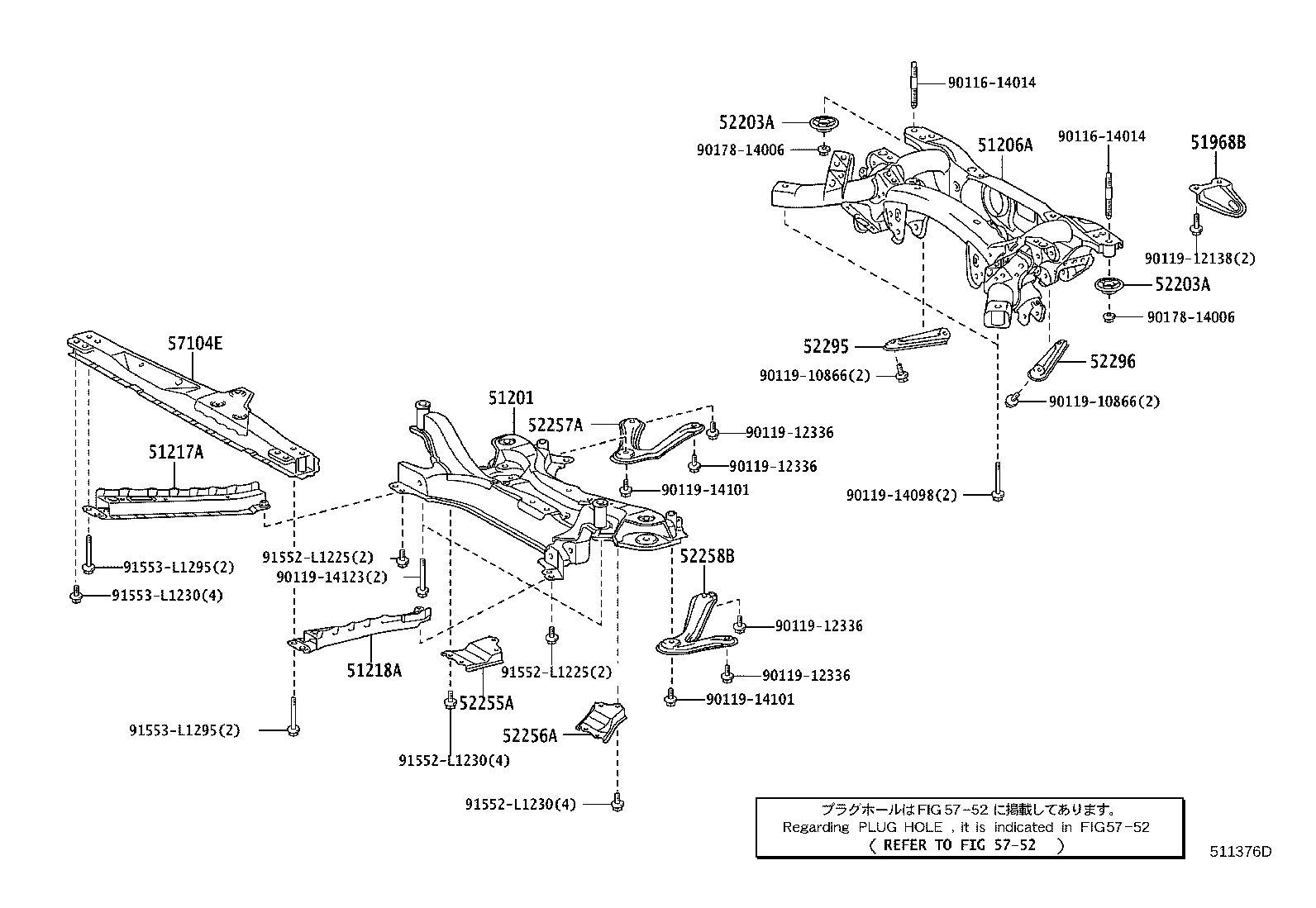

ILLUST NO. 1 OF 2(0511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 51201-42070 |
ACA3#,ALA30 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-42050 |
ACA3#,ALA30,GSA33 |
1 | ||
| 51206-42061 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 51206-42062 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-42020 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 51107-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-42020 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER | ||||
| 52203-42010 |
ACA3#,ALA30,GSA33 |
2 | ||
| 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER | ||||
| 52203-42010 |
ACA3#,ALA30,GSA33 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-12040 |
ACA3#,ALA30,GSA33 |
1 | ||
| 52295-42010 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-42010 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 52296-12010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-42070 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| Common parts | ||||
| 90116-14014 | ||||
| 90119-10866 | ||||
| 90119-12138 | ||||
| 90119-12336 | ||||
| 90119-14098 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90178-14006 | ||||
| 91552-L1225 | ||||
| 91552-L1230 | ||||
| 91553-L1230 | ||||
| 91553-L1295 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(0511- )
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451D - SCREW, NO.1 | ||||
| 90159-60498 |
ACA3#,ALA30,GSA33 |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60498 |
ACA3#,ALA30,GSA33 |
2 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60498 |
ACA3#,ALA30,GSA33 |
2 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90159-60584 | ||||
| 90179-06169 | ||||
| 90189-06027 | ||||
| 90467-07215 | ||||
| 90467-08145 | ||||
| 90467-09227 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5353 | ||||
| 5752 | ||||
