ACA38L-ANPXKV (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )LHD

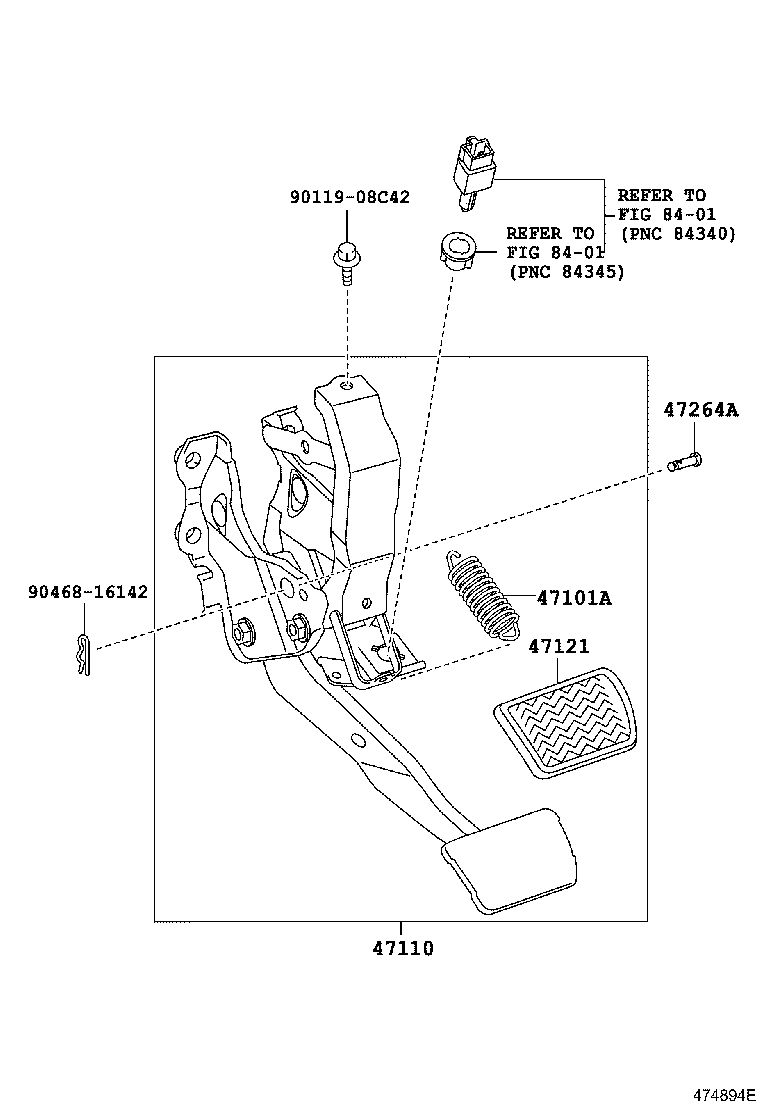

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 8401 8401 9011908C42 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-42020

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-42190

ACA38..4FC;ACA33..G..GEN;ACA33..LHD..4FC..X

 1
47110-42192

ACA33,38..4FC..(GCC,GEN)

 1
47110-42202

ACA33,38..G..GCC

VSC-WITH

 1
47121 - PAD, BRAKE PEDAL
47121-42010

ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

ACA38;ACA33..X;ACA33..LHD..G

 1
Common parts
90119-08C42
90468-16142
Linked diagrams
8401

(0511- )LHD

Click highlighted areas on diagram

W(VSC)

diagram 47101A 47110 47121 47264A 8401 8401 9011908C42 9046815005
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-42020

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-42190

ACA38..4FC;ACA33..G..GEN;ACA33..LHD..4FC..X

 1
47110-42192

ACA33,38..4FC..(GCC,GEN)

 1
47110-42202

ACA33,38..G..GCC

VSC-WITH

 1
47121 - PAD, BRAKE PEDAL
47121-42010

ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

ACA38;ACA33..X;ACA33..LHD..G

 1
Common parts
90119-08C42
90468-15005
Linked diagrams
8401
