ACA38L-ANPXKV (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2AZFE

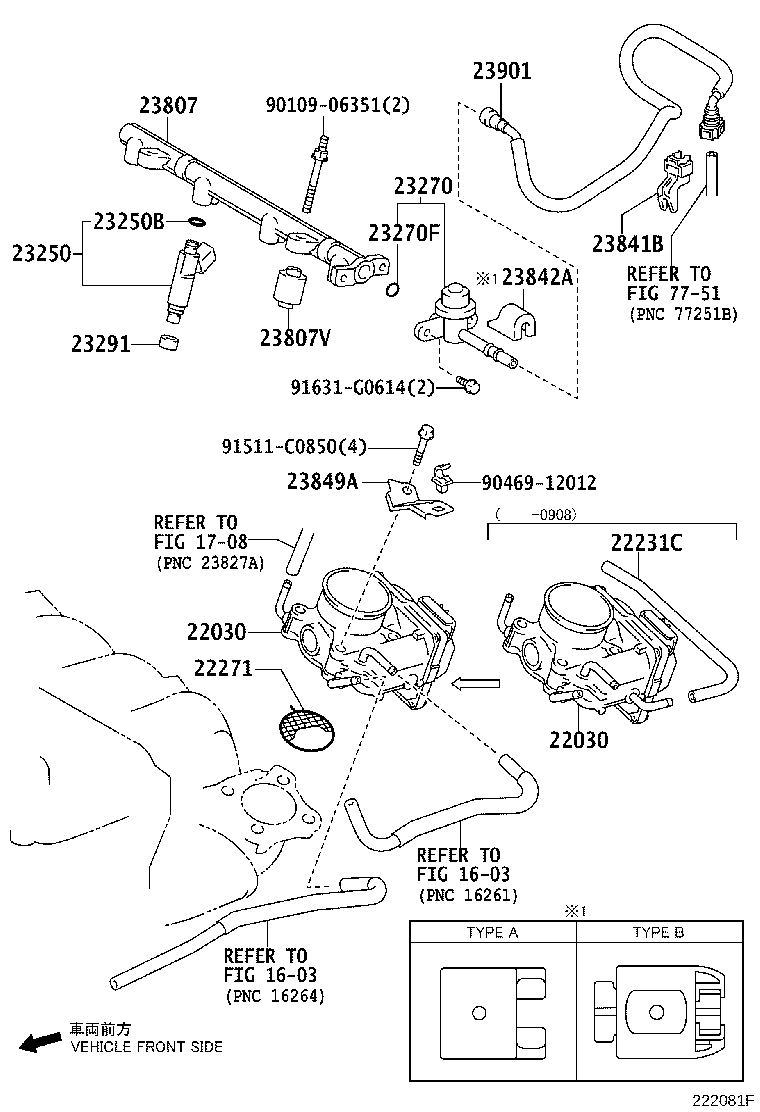

Click highlighted areas on diagram

diagram 1603 1603 1708 22030 22030 22231C 22271 23250 23250B 23270 23270F 23291 23807 23807V 23841B 23842A 23849A 23901 7751 9010906351 9046912012 91511C0850 91631G0614
Part # Description Qty Price
23250 - INJECTOR ASSY, FUEL
23209-28080

1AZFE,2AZFE..ACA3#

 4
23209-28080

1AZFE,2AZFE..ACA3#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1AZFE,2AZFE..ACA3#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28050

1AZFE,2AZFE..ACA3#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1AZFE,2AZFE..ACA3#

 4
23291-23010

1AZFE,2AZFE..ACA3#

 4
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010

1AZFE,2AZFE..ACA3#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1AZFE,2AZFE..ACA3#

TYPE A:REFER ILLUST.

 1
Common parts
90109-06351
90469-12012
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7751
