ACA38L-ANPXKV (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )1AZFE,2AZFE

Click highlighted areas on diagram

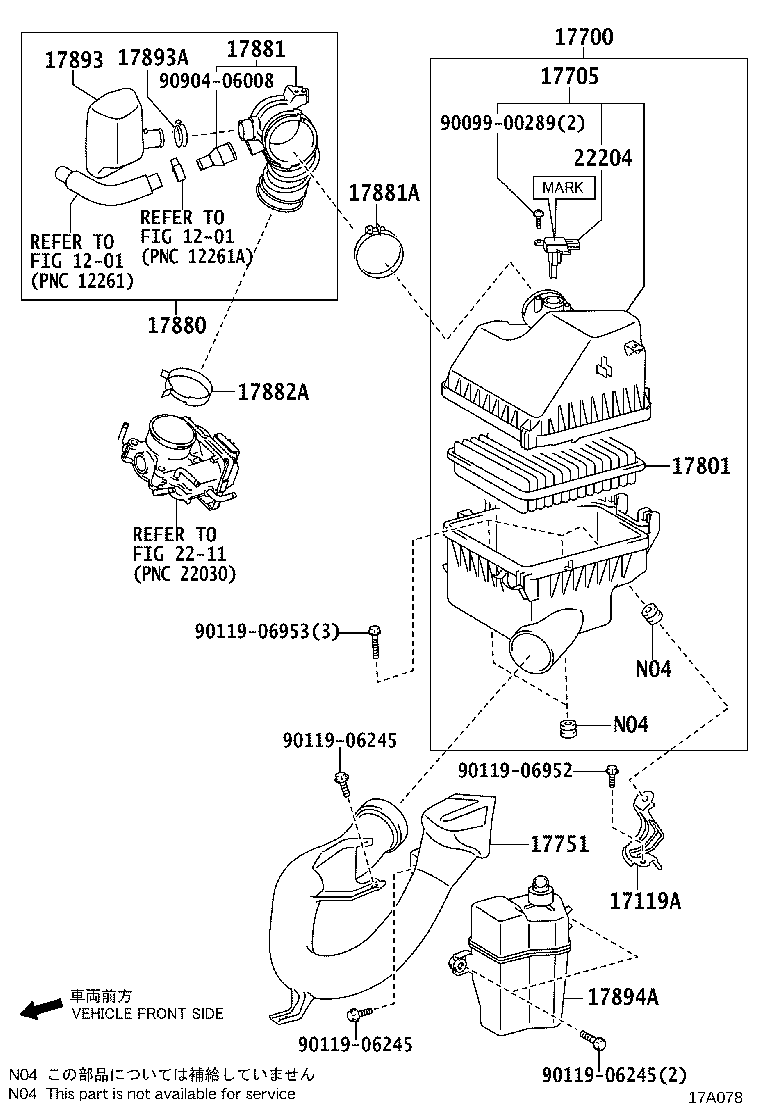

diagram 1201 1201 17119A 17700 17705 17751 17801 17880 17881 17881A 17882A 17893 17893A 17894A 2211 22204 9009900289 9011906245 9011906245 9011906245 9011906952 9011906953 9090406008
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-28300

1AZFE,2AZFE..ACA3#

 1
17700-28302

1AZFE,2AZFE..ACA3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28250

1AZFE,2AZFE..ACA3#

 1
17705-28252

1AZFE,2AZFE..ACA3#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31010

1AZFE,2AZFE..ACA3#

 1
22204-0P010

1AZFE,2AZFE..ACA3#

MARK 22204-0P010

 1
22204-0H010

1AZFE,2AZFE..ACA3#

MARK 22204-0H010

 1
22204-31020

1AZFE,2AZFE..ACA3#

MARK 22204-31020

 1
22204-0T010

1AZFE,2AZFE..ACA3#

MARK 22204-0T010

 1
Common parts
90099-00289
90119-06245
90119-06952
90119-06953
90904-06008
Linked diagrams
1201
2211
