ACA38L-ANMXK (2005)

Toyota Rav4

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

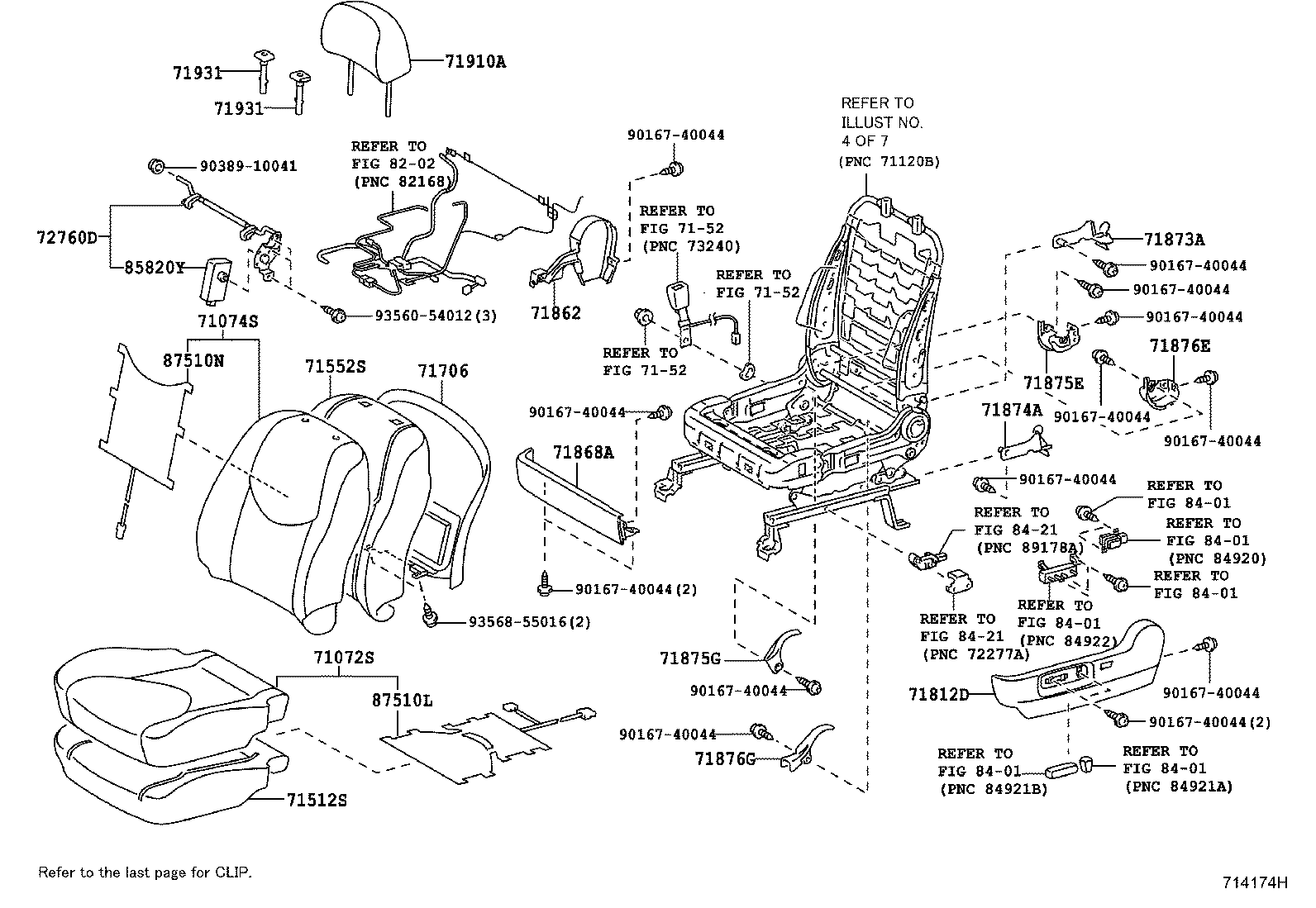

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

Click highlighted areas on diagram

DRIVER SIDE-W(SIDE AIR BAG)

diagram 71072S 71074S 71120B 71200S 71512S 7152 7152 7152 71552S 71706 71812D 71862 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72462A 72478 72495 72526A 73920A 8421 8421 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42190B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71072-42190E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71072-42240B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42240E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71074-42070B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71074-42070E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42090B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42090E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-42170

ACA33,38..LHD..X

 1
71120-42070

ACA33,38..LHD..G

 1
71120-42190

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42080

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42110

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42100

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71200S - SEAT ASSY, FRONT LH
71200-42F00B0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42F30E1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60B4

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42E60E3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42E60E4

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B4

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42F30E2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60E7

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00E1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B6

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42E60B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42F30E5

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-42040

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-42030

ACA33,38..LHD..X

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-42060

ACA33,38,GSA33..X

 1
71551-42120

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71551-42080

ACA33,38,GSA33..G

 1
71552-42020

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42030

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42050

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71812-42100B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71812-42100E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71862-42060B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862-42060E0

ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-42030

ACA30,33,38,ALA30,GSA33

 1
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA30,33,38,ALA30,GSA33

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA30,33,38,ALA30,GSA33

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA30,33,38,ALA30,GSA33

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72462A - COVER, VERTICAL ADJUSTER LH
72462-42010E0

ACA33,38..LHD

FAWN,TRIM4#

 1
72462-42010B1

ACA38;ACA33..LHD..X;ACA33..G..GEN

GRAY,TRIM1#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-60010

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-42010B1

ACA38;ACA33..LHD..X;ACA33..G..GEN

GRAY,TRIM1#

 1
72495-42010E0

ACA33,38..LHD

FAWN,TRIM4#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-42020E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
72526-42020B1

ACA33,38..LHD

GRAY,TRIM1#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-42030

ACA33,38,GSA33

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
73920-42030

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-42160

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42160

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-42120

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42120

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90167-40044
93568-55016
94185-60600
Linked diagrams
7152
8421

ILLUST NO. 2 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

Click highlighted areas on diagram

PASSENGER SIDE-W(SIDE AIR BAG)

diagram 71071S 71073S 71100S 71110A 71511S 7152 7152 7152 71551S 71705 71811D 71861 71873 71874 71875A 71875B 71876A 71876B 71910A 71931 71931 72525A 73910A 87510K 87510M 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-42440E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71071-42440B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71071-42370E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71071-42440E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71071-42440B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71071-42370B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71071-42390B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71071-42441E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71071-42390E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71071-42441E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42350E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71073-42350B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71073-42380B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42470E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42380E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42470B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71100S - SEAT ASSY, FRONT RH
71100-42E20E1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20E2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42E20B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71100-42G20B0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71100-42G20E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20E3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71100-42E20B2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71100-42E20E2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71100-42G20B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71100-42G20E1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20B4

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71100-42E20B3

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71100-42E20E5

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71100-42F20E6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42170

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42150

ACA33,38..LHD..X

 1
71110-42030

ACA33,38..LHD..G

 1
71110-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42040

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71051-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71051-42020

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71051-42010

ACA33,38..LHD..X

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-42070

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71551-42080

ACA33,38,GSA33..G

 1
71551-42060

ACA33,38,GSA33..X

 1
71551-42100

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71551-42100

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-42080E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
71811-42080B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-42070E0

ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71861-42070B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42030

ACA3#,ALA30,GSA33

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA3#,ALA30,GSA33

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA3#,ALA30,GSA33

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA3#,ALA30,GSA33

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-42010E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
72525-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-42030

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
73910-42030

ACA33,38,GSA33

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-42160

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42160

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87510-42120

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510-42120

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
Common parts
90167-40044
93568-55016
94185-60600
Linked diagrams
7152

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

Click highlighted areas on diagram

DRIVER-W(POWER SEAT & SIDE AIR BAG)

diagram 71072S 71074S 71200S 71512S 7152 7152 7152 71552S 71706 71812D 71862 71868A 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72760D 73920A 8202 8401 8401 8401 8401 8401 8401 8421 8421 85820Y 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9038910041 9356054012 9356855016 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42190B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71072-42190E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71072-42240B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42240E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71074-42070B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71074-42070E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42090B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42090E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71200S - SEAT ASSY, FRONT LH
71200-42F00B0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42F30E1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60B4

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42E60E3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42E60E4

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B4

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42F30E2

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1#

 1
71200-42E60E7

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F00E1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71200-42F30B6

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42E60B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71200-42F30E5

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-42040

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-42030

ACA33,38..LHD..X

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-42060

ACA33,38,GSA33..X

 1
71551-42120

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71551-42080

ACA33,38,GSA33..G

 1
71552-42020

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42030

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42050

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71812-42100B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71812-42100E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71862-42060B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862-42060E0

ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-60020E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71868-60020B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71868-60020B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71868-60020E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-42030

ACA30,33,38,ALA30,GSA33

 1
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA30,33,38,ALA30,GSA33

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA30,33,38,ALA30,GSA33

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA30,33,38,ALA30,GSA33

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-33060

ACA33,38..G..GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-42030

ACA33,38,GSA33

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
73920-42030

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
85820Y - MOTOR ASSY, POWER SEAT
85820-60130

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85820-60130

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-42160

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42160

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-42120

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42120

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90167-40044
90389-10041
93560-54012
93568-55016
94185-60600
Linked diagrams
7152
8202
8401
8421

ILLUST NO. 7 OF 7(0511- )

Click highlighted areas on diagram

REAR SEAT:LH

diagram 66994 66994 71016A 71018 71076S 71078S 71499D 7152 7152 7152 71612A 71652S 71693A 71694 71695 71695B 71826B 71829B 71918B 71918B 71931A 71931A 71940A 71960B 72054A 72380 72598 72620C 7262242010 72635 72635 72678 72690A 72736 72740A 72740A 72749 72749 72809A 72830 72840 72868 72869 72987 72997 72998C 7889942010 7889942010 7889942020 7889942020 79958A 79959 79967 79968 9010510539 9010510539 9010510539 9016740044 9016740044 9016740044 9016740044 9016740044 9017608030 9017908241 9017908241 9017908241 9046310060 9046713046 9155380818 9167380616 9326954008 9415080600 9616000900 9616000900
Part # Description Qty Price
66994 - COVER, CUP HOLDER
66994-42010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
66994-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 2
66994 - COVER, CUP HOLDER
66994-42010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
66994-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 2
71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71660-42010

ACA3#,ALA30,GSA33

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-42110

ACA33,38,GSA33

 1
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71076-42410E1

ACA33,38..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71076-42390E0

ACA33,38..X

FAWN,TRIM4#

 1
71076-42400E0

ACA33,38..G

FAWN,TRIM4#

 1
71076-42390B0

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71076-42410B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71076-42400B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-42330B0

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71078-42350B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71078-42350E1

ACA33,38..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71078-42340E0

ACA33,38..G

FAWN,TRIM4#

 1
71078-42330E0

ACA33,38..X

FAWN,TRIM4#

 1
71078-42340B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71499D - DAMPER, REAR SEAT BACK SPRING
71499-42010

ACA3#,ALA30,GSA33

 1
71612A - PAD, REAR SEAT CUSHION, LH
71612-42080

ACA33,38,GSA33

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-42080

ACA33,38,GSA33

 1
71693A - COVER, REAR SEAT CUSHION HINGE, NO.3
71693-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71693-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH
71694-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71694-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71695 - PROTECTOR, REAR SEAT BACK
71695-42030B1

ACA33,38..LHD

GRAY,TRIM1#,LH

 1
71695-42030E0

ACA33,38

FAWN,TRIM4#,LH

 1
71695B - PROTECTOR, REAR SEAT, NO.1 LH
71695-42060

ACA3#,ALA30,GSA33

 2
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71826-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71829-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2
71918-42010

ACA33,38,GSA33

 2
71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2
71918-42010

ACA33,38,GSA33

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 3
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 3
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 3
71931-42020E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 3
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 3
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 3
71931-42020E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-42010B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71940-42010E0

ACA33,38..X

FAWN,TRIM4#

 2
71940-42020E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN)

FAWN,TRIM4#

 2
71940-42030E1

ACA30,33,38,ALA30..G..(ARL,EUR,GEN)

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71940-42020B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71940-42030B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-42010E0

ACA33,38..X

FAWN,TRIM4#

 1
71960-42010B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71960-42020B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71960-42030B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71960-42030E1

ACA30,33,38,ALA30..G..(ARL,EUR,GEN)

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71960-42020E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN)

FAWN,TRIM4#

 1
72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
72054-42020

ACA33,38,GSA33

 1
72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-42020

ACA3#,ALA30,GSA33

RH

 1
72380-42030

ACA3#,ALA30,GSA33

LH

 1
72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH
72597-42010

ACA3#,ALA30,GSA33

 1
72620C - CABLE ASSY, REAR NO.1 SEAT LOCK
72620-42040

ACA33,38,GSA33

 1
72635 - HOOK, REAR SEAT BACK LOCK
72635-13010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#,NO.1

 1
72635-13010B3

ACA33,38..LHD

GRAY,TRIM1#,NO.1

 1
72635-13020B3

ACA33,38..LHD

GRAY,TRIM1#,NO.2

 1
72635-13020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#,NO.2

 1
72635 - HOOK, REAR SEAT BACK LOCK
72635-13010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#,NO.1

 1
72635-13010B3

ACA33,38..LHD

GRAY,TRIM1#,NO.1

 1
72635-13020B3

ACA33,38..LHD

GRAY,TRIM1#,NO.2

 1
72635-13020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#,NO.2

 1
72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH
72678-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72678-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72690A - STRAP ASSY, REAR SEAT LOCK RELEASE
72690-42010B0

ACA33,38..LHD

GRAY,TRIM1#

 1
72690-42010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
72736 - LEVER, REAR SEAT RECLINING RELEASE, LH
72736-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72736-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-42080

ACA33,38,GSA33

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-42080

ACA33,38,GSA33

 1
72749 - SPACER, REAR SEAT RECLINING
72749-48010

ACA3#,ALA30,GSA33

 4
72749 - SPACER, REAR SEAT RECLINING
72749-48010

ACA3#,ALA30,GSA33

 4
72809A - LOCK SUB-ASSY, CENTER ARMREST
72809-42010

ACA3#,ALA30,GSA33

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-42010E0

ACA33,38..X

FAWN,TRIM4#

 1
72830-42010B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
72830-42020B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
72830-42020E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN)

FAWN,TRIM4#

 1
72830-42030E1

ACA30,33,38,ALA30..G..(ARL,EUR,GEN)

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
72830-42030B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
72840 - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-42010B3

ACA33,38..LHD..X

GRAY,TRIM1#

 1
72840-42010E2

ACA33,38..X

FAWN,TRIM4#

 1
72840-42020B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
72840-42030B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
72840-42030E1

ACA30,33,38,ALA30..G..(ARL,EUR,GEN)

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
72840-42020E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN)

FAWN,TRIM4#

 1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72868-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72869 - COVER, CENTER ARMREST HINGE, LH
72869-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72869-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72987 - COVER, REAR SEAT CENTER ARMREST
72987-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72987-42010E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
72997 - COVER, REAR SEAT BACK, LH
72997-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72997-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72998C - COVER, REAR SEAT, LH
72998-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72998-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
79958A - COVER, REAR SEAT REAR BRACKET, LH
79958-42020E0

ACA33,38

FAWN,TRIM4#

 1
79958-42020B1

ACA33,38..LHD

GRAY,TRIM1#

 1
79959 - COVER, RR SEAT LEG
79959-42010E0

ACA33,38

FAWN,TRIM4#

 4
79959-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 4
79967 - COVER, REAR SEAT LEG SIDE, NO.4
79967-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
79967-42010E0

ACA33,38

FAWN,TRIM4#

 1
79968 - COVER, REAR SEAT LEG SIDE, NO.5
79968-42010E0

ACA33,38

FAWN,TRIM4#

 1
79968-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
Common parts
72622-42010
78899-42010
78899-42020
90105-10539
90167-40044
90176-08030
90179-08241
90463-10060
90467-13046
91553-80818
91673-80616
93269-54008
94150-80600
96160-00900
Linked diagrams
7152

ILLUST NO. 1 OF 7(0511-0808)G..GCC ; (0511-0808)ACA33,38..LHD..X; (0511-0812)ACA30,ALA30..LHD..DCR,

Click highlighted areas on diagram

DRIVER SIDE-W(POWER SEAT)

diagram 71072S 71074S 71512S 7152 7152 7152 71552S 71706 71812D 71862 71868A 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72760D 8202 8401 8401 8401 8401 8401 8401 8421 8421 85820Y 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9038910041 9356054012 9356855016
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42190B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71072-42190E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71072-42240B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42240E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71074-42070B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71074-42070E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42090B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42090E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-42040

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-42030

ACA33,38..LHD..X

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-42060

ACA33,38,GSA33..X

 1
71551-42120

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71551-42080

ACA33,38,GSA33..G

 1
71552-42020

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42030

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42050

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71812-42100B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71812-42100E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71862-42060B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862-42060E0

ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-60020E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71868-60020B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71868-60020B3

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71868-60020E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-42030

ACA30,33,38,ALA30,GSA33

 1
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA30,33,38,ALA30,GSA33

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA30,33,38,ALA30,GSA33

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA30,33,38,ALA30,GSA33

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-33060

ACA33,38..G..GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85820Y - MOTOR ASSY, POWER SEAT
85820-60130

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85820-60130

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-42160

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42160

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-42120

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42120

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90167-40044
90389-10041
93560-54012
93568-55016
Linked diagrams
7152
8202
8401
8421

ILLUST NO. 2 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,ALA30..LHD

Click highlighted areas on diagram

PASSENGER SIDE

diagram 71071S 71073S 71110A 71511S 7152 7152 7152 71551S 71705 71811D 71861 71873 71874 71875A 71875B 71876A 71876B 71910A 71931 71931 72525A 87510K 87510M 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-42440E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71071-42440B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71071-42370E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71071-42440E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71071-42440B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71071-42370B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71071-42390B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71071-42441E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71071-42390E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71071-42441E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42350E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71073-42350B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71073-42380B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42470E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42380E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42470B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42170

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42150

ACA33,38..LHD..X

 1
71110-42030

ACA33,38..LHD..G

 1
71110-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42040

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71051-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71051-42020

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71051-42010

ACA33,38..LHD..X

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-42070

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71551-42080

ACA33,38,GSA33..G

 1
71551-42060

ACA33,38,GSA33..X

 1
71551-42100

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71551-42100

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-42080E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
71811-42080B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-42070E0

ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71861-42070B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42030

ACA3#,ALA30,GSA33

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA3#,ALA30,GSA33

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA3#,ALA30,GSA33

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA3#,ALA30,GSA33

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-42010E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
72525-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-42160

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
87510-42160

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87510-42120

ACA33,38,GSA33..G;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510-42120

ACA33,38,GSA33..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
Common parts
90167-40044
93568-55016
Linked diagrams
7152

ILLUST NO. 6 OF 7(0511- )

Click highlighted areas on diagram

REAR SEAT:RH

diagram 71015A 71017 71075S 71077S 7152 71611A 71651S 71691E 71692E 71695 71695A 71825B 71828B 71918A 71918A 71931A 71931A 71940A 72053C 72380 72597A 72620B 72677A 72730A 72735 72749 72749 72995A 72996 7889942010 7889942010 7889942020 7889942020 79957A 79959 79965 79966 9010510539 9010510539 9010510539 9016740044 9016740044 9016740044 9016740044 9017908241 9046310060 9046713046 9167380616 9326954008 9415080600 9616000900 9616000900
Part # Description Qty Price
71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71650-42010

ACA3#,ALA30,GSA33

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-42110

ACA33,38,GSA33

 1
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-42400E0

ACA33,38..G

FAWN,TRIM4#

 1
71075-42390E0

ACA33,38..X

FAWN,TRIM4#

 1
71075-42390B0

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71075-42410E1

ACA33,38..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71075-42400B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71075-42410B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-42360E0

ACA33,38..X

FAWN,TRIM4#

 1
71077-42360B0

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71077-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71077-42370E0

ACA33,38..G

FAWN,TRIM4#

 1
71077-42380E1

ACA33,38..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71077-42380B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71611A - PAD, REAR SEAT CUSHION, RH
71611-42080

ACA33,38,GSA33

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-42080

ACA33,38,GSA33

 1
71691E - COVER, REAR SEAT CUSHION HINGE, NO.1
71691-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71691-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71692E - COVER, REAR SEAT CUSHION HINGE, NO.2
71692-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71692-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71695 - PROTECTOR, REAR SEAT BACK
71695-42030B1

ACA33,38..LHD

GRAY,TRIM1#,LH

 1
71695-42030E0

ACA33,38

FAWN,TRIM4#,LH

 1
71695A - PROTECTOR, REAR SEAT, NO.1 RH
71695-42060

ACA3#,ALA30,GSA33

 2
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71825-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71828-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71918A - SPRING, CENTER SEAT CUSHION CATCH
71918-42010

ACA3#,ALA30,GSA33

INNER

 1
71918-42030

ACA3#,ALA30,GSA33

OUTER

 1
71918A - SPRING, CENTER SEAT CUSHION CATCH
71918-42010

ACA3#,ALA30,GSA33

INNER

 1
71918-42030

ACA3#,ALA30,GSA33

OUTER

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 3
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 3
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 3
71931-42020E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 3
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 3
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 3
71931-42020E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-42010B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71940-42010E0

ACA33,38..X

FAWN,TRIM4#

 2
71940-42020E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN)

FAWN,TRIM4#

 2
71940-42030E1

ACA30,33,38,ALA30..G..(ARL,EUR,GEN)

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71940-42020B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71940-42030B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
72053-42020

ACA33,38,GSA33

 1
72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-42020

ACA3#,ALA30,GSA33

RH

 1
72380-42030

ACA3#,ALA30,GSA33

LH

 1
72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH
72597-42010

ACA3#,ALA30,GSA33

 1
72620B - CABLE ASSY, REAR NO.1 SEAT LOCK
72620-42020

ACA33,38,GSA33

 1
72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH
72677-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72677-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-42080

ACA33,38,GSA33

 1
72735 - LEVER, REAR SEAT RECLINING RELEASE
72735-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72735-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72749 - SPACER, REAR SEAT RECLINING
72749-48010

ACA3#,ALA30,GSA33

 4
72749 - SPACER, REAR SEAT RECLINING
72749-48010

ACA3#,ALA30,GSA33

 4
72995A - COVER, REAR SEAT
72995-42070B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72995-42070E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72996 - COVER, REAR SEAT BACK, RH
72996-42010E0

ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
72996-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
79957A - COVER, REAR SEAT REAR BRACKET, RH
79957-42020E0

ACA33,38

FAWN,TRIM4#

 1
79957-42020B1

ACA33,38..LHD

GRAY,TRIM1#

 1
79959 - COVER, RR SEAT LEG
79959-42010E0

ACA33,38

FAWN,TRIM4#

 4
79959-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 4
79965 - COVER, REAR SEAT LEG SIDE, NO.2
79965-42010E0

ACA33,38

FAWN,TRIM4#

 1
79965-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
79966 - COVER, REAR SEAT LEG SIDE, NO.3
79966-42010E0

ACA33,38

FAWN,TRIM4#

 1
79966-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
Common parts
78899-42010
78899-42020
90105-10539
90167-40044
90179-08241
90463-10060
90467-13046
91673-80616
93269-54008
94150-80600
96160-00900
Linked diagrams
7152

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,ALA30..LHD

Click highlighted areas on diagram

DRIVER SIDE

diagram 71072S 71074S 71120B 71512S 7152 7152 7152 71552S 71706 71812D 71862 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72120 72140A 72462A 72478 72495 72526A 727020K100 727020K100 7270248010 7270258050 7270258050 8421 8421 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42300B2

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71072-42300E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71072-42190B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71072-42190E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71072-42240B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71072-42301E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71072-42240E0

ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42100E0

ACA33,38..LHD..X

FAWN,TRIM4#

 1
71074-42070B1

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71073-42100B1

ACA33,38..LHD..X

GRAY,TRIM1#

 1
71073-42450E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71073-42370E0

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71074-42070E0

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42090B1

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71074-42090E0

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71074-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71073-42450B0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71073-42370B1

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-42170

ACA33,38..LHD..X

 1
71120-42070

ACA33,38..LHD..G

 1
71120-42190

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42080

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42110

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42100

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-42040

ACA30,ALA30..LHD;ACA33,38..LHD..G

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71052-42070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-42030

ACA33,38..LHD..X

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-42060

ACA33,38,GSA33..X

 1
71551-42120

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71551-42080

ACA33,38,GSA33..G

 1
71552-42020

ACA33,38,GSA33..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42030

ACA33,38,GSA33..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71552-42050

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B3

ACA33,38..LHD..G

GRAY,TRIM1#

 1
71771-42010E6

ACA33,38..LHD..G

FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71771-42010E5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71812-42110E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71812-42100B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71812-42100E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
71812-42110B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71862-60100E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71862-42060B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71862-60100B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71862-42060E0

ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-42030

ACA30,33,38,ALA30,GSA33

 1
71873-30070

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA30,33,38,ALA30,GSA33

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-30020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA30,33,38,ALA30,GSA33

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71875-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60150E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-60150B5

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA30,33,38,ALA30,GSA33

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71876-60140

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
71876-60170E0

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876-42050B1

ACA33,38..LHD

GRAY,TRIM1#

 1
71876-60170B6

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42110B1

ACA33,38..LHD..X

GRAY,TRIM1#

 2
71910-42130E1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#

 2
71910-42130E1

ACA33,38..G..GEN;ACA30,ALA30..RHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 2
71910-42110E0

ACA33,38..LHD..X

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
71910-42120E0

ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 2
71910-42130B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 2
71910-42120B1

ACA33,38..LHD..G

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B7

ACA33,38..LHD

W(LOCK)&W(BUTTON),GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B7

ACA33,38..LHD

W(LOCK)&W/O(BUTTON),GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-42040

ACA33,38..LHD

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-42040

ACA33,38..LHD

 1
72462A - COVER, VERTICAL ADJUSTER LH
72462-42010E0

ACA33,38..LHD

FAWN,TRIM4#

 1
72462-42010B1

ACA38;ACA33..LHD..X;ACA33..G..GEN

GRAY,TRIM1#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-60010

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-42010B1

ACA38;ACA33..LHD..X;ACA33..G..GEN

GRAY,TRIM1#

 1
72495-42010E0

ACA33,38..LHD

FAWN,TRIM4#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-42020E0

ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN)

FAWN,TRIM4#

 1
72526-42020B1

ACA33,38..LHD

GRAY,TRIM1#

 1
Common parts
72702-0K100
72702-48010
72702-58050
90167-40044
93568-55016
Linked diagrams
7152
8421

ILLUST NO. 5 OF 7(0511- )

Click highlighted areas on diagram

FRONT SEAT(SEAT TRACK COVER)

diagram 72123A 72124 72127A 72128A 9011910966 9011910966 9011910966 9011910966
Part # Description Qty Price
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-42010E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

FAWN,TRIM4#

 1
72123-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72123-42010E0

ACA33,38;ACA30,ALA30..G..(DCR,DCRE,HTWC)

FAWN,TRIM4#

 1
72124-42010B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
72124-42010E0

ACA30,33,38,ALA30..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72127-42010E0

ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

FAWN,TRIM4#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-42010E0

ACA33,38;ACA30,ALA30..G..(DCR,DCRE,HTWC)

FAWN,TRIM4#

 1
72128-42010B1

ACA33,38..LHD

GRAY,TRIM1#

 1
72128-42020E0

ACA30,33,38,ALA30..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#

 1
72128-42020B1

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

 1
Common parts
90119-10966

(0511- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

ILLUST NO. 4 OF 7(0511-1212)G

Click highlighted areas on diagram

FRONT POWER SEAT FRAME ASSY(LH)

diagram 4131548010 4131548010 4415948020 4415948020 71120B 71643A 71644 85822 85822A 85822B 85822C 9011005011 9011005011 9011005012 9011005013 9014880062 9014880062 9017906178 9017906178 9017908057
Part # Description Qty Price
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-42170

ACA33,38..LHD..X

 1
71120-42070

ACA33,38..LHD..G

 1
71120-42190

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42080

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42110

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71120-42100

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85822 - MOTOR ASSY, POWER SEAT SLIDE, LH
85801-42020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85822A - MOTOR ASSY, POWER SEAT RECLINING, LH
85801-60020

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85822B - MOTOR ASSY, POWER SEAT TILT, LH
85801-60040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
85822C - MOTOR ASSY, POWER SEAT LIFTER, LH
85801-60030

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
41315-48010
44159-48020
90110-05011
90110-05012
90110-05013
90148-80062
90179-06178
90179-08057

ILLUST NO. 3 OF 7(0511-1212)G

Click highlighted areas on diagram

FRONT POWER SEAT FRAME ASSY(RH)

diagram 4131548010 4131548010 4415948020 4415948020 71110A 71643A 71644 85821H 85821J 85821K 85821L 9011005011 9011005011 9011005012 9011005013 9014880062 9014880062 9017906178 9017906178 9017908057
Part # Description Qty Price
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42170

ACA33,38..LHD..X

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42150

ACA33,38..LHD..X

 1
71110-42030

ACA33,38..LHD..G

 1
71110-42040

ACA33,38..LHD..G

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
71110-42040

ACA33,38..LHD..G

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
Common parts
41315-48010
44159-48020
90110-05011
90110-05012
90110-05013
90148-80062
90179-06178
90179-08057
