ACA38L-ANMXK (2008)
Toyota Rav4

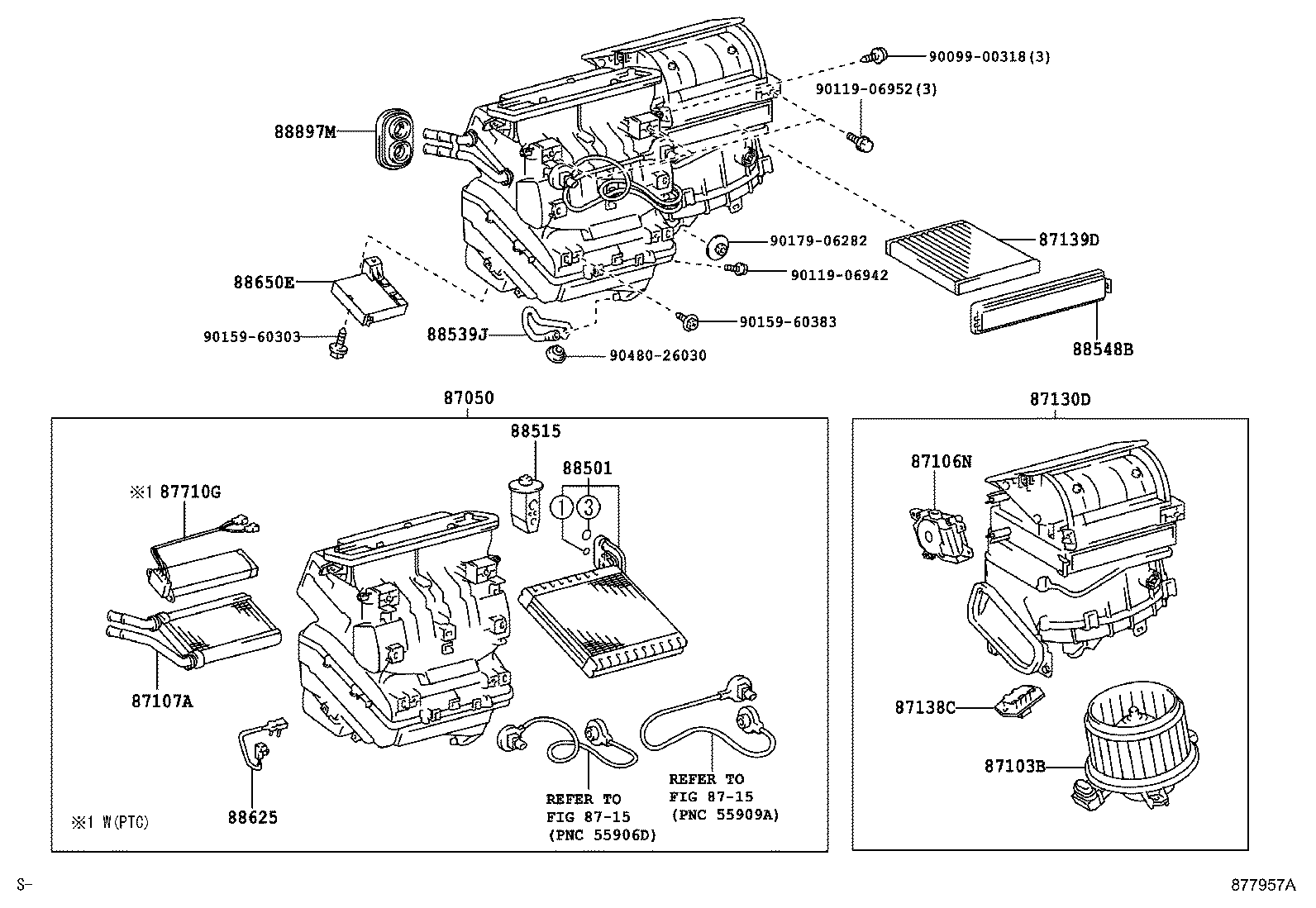

ILLUST NO. 1 OF 2(0511- )LHD..G
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-42010 |
ACA3#,ALA30..LHD..G |
1 | ||
| 82212-12030 |
ACA30,33,38,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42360 |
ACA3#..LHD..X |
1 | ||
| 87050-42380 |
ACA3#..LHD..G |
1 | ||
| 87050-12410 |
ACA30,33,38,ZSA3#..LHD..G |
1 | ||
| 87050-12390 |
ACA30,33,38,ZSA3#..LHD..X |
1 | ||
| 87050-12391 |
ACA3#,ZSA3#..LHD..X |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42100 |
ACA3#,ALA30..LHD..G |
1 | ||
| 87103-42090 |
ACA33,38..LHD..X |
1 | ||
| 87103-42101 |
ACA30,33,38,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87103-42090 |
ACA30,33,38,ALA3#,ZSA3#..LHD..X |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-42080 |
ACA3#..G RH |
1 | ||
| 87106-42090 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..G LH |
1 | ||
| 87106-12170 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..G RH |
1 | ||
| 87106-42090 |
ACA33,38,GSA33..G..(ARL,GEN) LH |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-42080 |
ACA3#..G RH |
1 | ||
| 87106-42090 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..G LH |
1 | ||
| 87106-12170 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..G RH |
1 | ||
| 87106-42090 |
ACA33,38,GSA33..G..(ARL,GEN) LH |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-42100 |
ALA35..G..ATYPE;ALA35..G..DCRE..BTYPE;ACA30,33,38,ALA30,GSA33,ZSA3#..G |
1 | ||
| 87106-42100 |
ACA33,38,GSA33..G..(ARL,GEN) |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ACA33,38..LHD..X |
1 | ||
| 87106-42140 |
ACA33,38..G..GEN |
1 | ||
| 87106-42140 |
ACA30,33,38,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87106-47130 |
ACA3#,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87106-42130 |
ACA30,33,38,ALA3#,ZSA3#..LHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87107-42170 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42220 |
ACA3#..LHD..X |
1 | ||
| 87130-42240 |
ACA3#..LHD..G |
1 | ||
| 87130-12571 |
ACA30,33,38,ZSA3#..LHD..G |
1 | ||
| 87130-12551 |
ACA30,33,38,ZSA3#..LHD..X |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-52020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 87139-52020 |
ACA33,38,GSA33..ARL,GCC,GEN |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 88501-26211 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 88501-72020 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
ACA3#,ALA30 |
1 | ||
| 88515-26070 |
ACA3#,GSA33..X;ZSA3#..X..BTYPE;ZSA30..LHD..CVFC..X..ATYPE |
1 | ||
| 88515-12100 |
ACA3#,ZSA3#..X |
1 | ||
| 88515-42090 |
ACA30,33,38,GSA33,ZSA3# |
1 | ||
| 88515-26070 |
ALA3#;ZSA35..X..ATYPE;ACA3#,ZSA3#..LHD..G;ZSA30..RHD..X..ATYPE;ZSA30..LHD..6F..X..ATYPE |
1 | ||
| 88515-12100 |
ALA3#;ACA3#,ZSA3#..LHD..G |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42060 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 88539-42060 |
ACA30,33,38,ALA3#,ZSA3#..LHD |
1 | ||
| 88539-42061 |
ACA3#,ALA3#,ZSA3#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 88548-42020 |
ACA30,33,38,ALA3#,ZSA3#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 88625-26090 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-42180 |
ACA33,38..X |
1 | ||
| 88650-42180 |
ACA33,38..X..GEN AIR CONDITIONER-MANUAL(DOP) |
1 | ||
| 88650-42240 |
ACA33,38..G..(ARL,GEN) |
1 | ||
| 88650-42340 |
ACA30,33,38,ZSA3#..G |
1 | ||
| 88650-42290 |
ACA30,33,38,ZSA3#..X |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-42010 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87128-42010 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
ILLUST NO. 1 OF 2(0511- )ACA33,38..LHD..X ; (0511- )ACA30,ALA3#,ZSA3#..LHD..4FC,5F,6F,CVFC
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-42360 |
ACA3#..LHD..X |
1 | ||
| 87050-42380 |
ACA3#..LHD..G |
1 | ||
| 87050-12410 |
ACA30,33,38,ZSA3#..LHD..G |
1 | ||
| 87050-12390 |
ACA30,33,38,ZSA3#..LHD..X |
1 | ||
| 87050-12391 |
ACA3#,ZSA3#..LHD..X |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42100 |
ACA3#,ALA30..LHD..G |
1 | ||
| 87103-42090 |
ACA33,38..LHD..X |
1 | ||
| 87103-42101 |
ACA30,33,38,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87103-42090 |
ACA30,33,38,ALA3#,ZSA3#..LHD..X |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ACA33,38..LHD..X |
1 | ||
| 87106-42140 |
ACA33,38..G..GEN |
1 | ||
| 87106-42140 |
ACA30,33,38,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87106-47130 |
ACA3#,ALA3#,ZSA3#..LHD..G |
1 | ||
| 87106-42130 |
ACA30,33,38,ALA3#,ZSA3#..LHD..X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87107-42170 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-42220 |
ACA3#..LHD..X |
1 | ||
| 87130-42240 |
ACA3#..LHD..G |
1 | ||
| 87130-12571 |
ACA30,33,38,ZSA3#..LHD..G |
1 | ||
| 87130-12551 |
ACA30,33,38,ZSA3#..LHD..X |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
ACA33,38..LHD..X |
1 | ||
| 87138-26160 |
ACA30,33,38,ALA3#,ZSA3#..LHD..X |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-52020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 87139-52020 |
ACA33,38,GSA33..ARL,GCC,GEN |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 88501-26211 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 88501-72020 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
ACA3#,ALA30 |
1 | ||
| 88515-26070 |
ACA3#,GSA33..X;ZSA3#..X..BTYPE;ZSA30..LHD..CVFC..X..ATYPE |
1 | ||
| 88515-12100 |
ACA3#,ZSA3#..X |
1 | ||
| 88515-42090 |
ACA30,33,38,GSA33,ZSA3# |
1 | ||
| 88515-26070 |
ALA3#;ZSA35..X..ATYPE;ACA3#,ZSA3#..LHD..G;ZSA30..RHD..X..ATYPE;ZSA30..LHD..6F..X..ATYPE |
1 | ||
| 88515-12100 |
ALA3#;ACA3#,ZSA3#..LHD..G |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42060 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 88539-42060 |
ACA30,33,38,ALA3#,ZSA3#..LHD |
1 | ||
| 88539-42061 |
ACA3#,ALA3#,ZSA3#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 88548-42020 |
ACA30,33,38,ALA3#,ZSA3#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 88625-26090 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-42180 |
ACA33,38..X |
1 | ||
| 88650-42180 |
ACA33,38..X..GEN AIR CONDITIONER-MANUAL(DOP) |
1 | ||
| 88650-42240 |
ACA33,38..G..(ARL,GEN) |
1 | ||
| 88650-42340 |
ACA30,33,38,ZSA3#..G |
1 | ||
| 88650-42290 |
ACA30,33,38,ZSA3#..X |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-42010 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87128-42010 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(0511- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
