ACA38L-ANMXK (2008)

Toyota Rav4

Production Aug 2008 - Dec 2012
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )LHD..4FC,5F,6F

Click highlighted areas on diagram

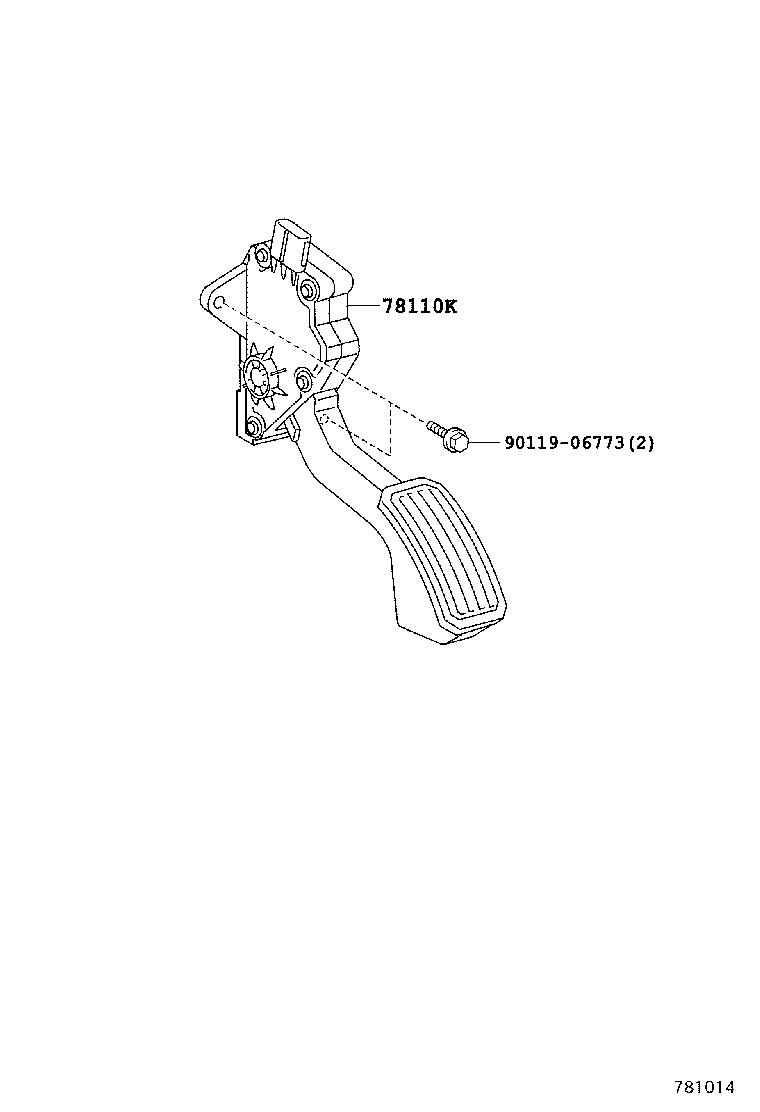

HANG DOWN TYPE

diagram 78110K 9011906773
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-42010

ACA30..LHD..5F;ACA33,38,ALA3#,ZSA3#..LHD..(4FC,5F,6F)

 1
78110-42011

ACA30..LHD..5F;ACA33,38,ALA3#,ZSA3#..LHD..(4FC,5F,6F)

 1
78110-42010

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
Common parts
90119-06773
