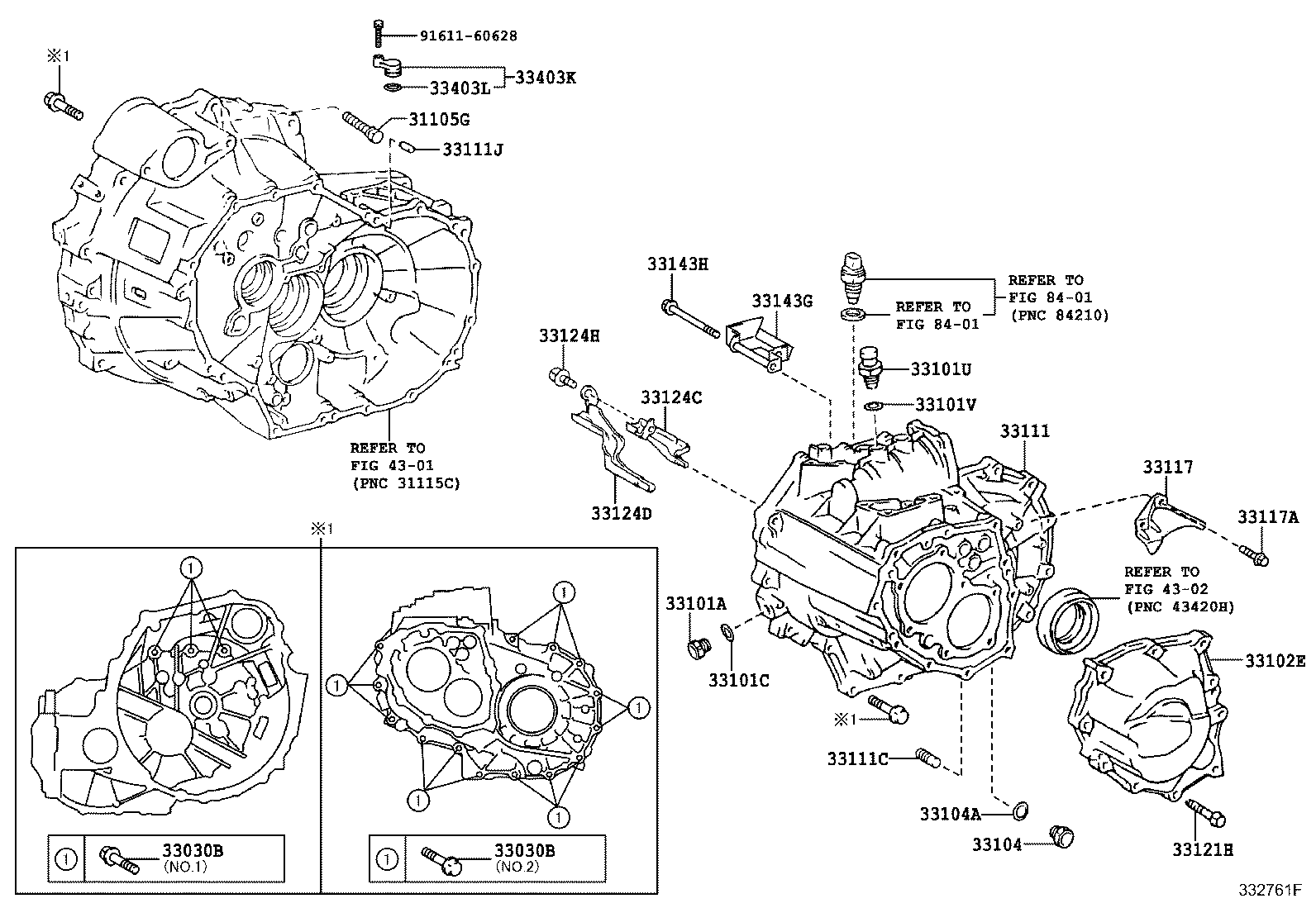

ACA38L-ANMXK (2008)
Toyota Rav4
(0511- )5F
E352,E352F,E359F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12252 |
ACA33,38..5F *12-1.25PX60-30 |
2 | ||
| 90105-12147 |
ACA33,38..5F *12-1.25PX74.5-25 |
1 | ||
| 91512-61065 |
ACA33,38..5F *10-1.25PX65-30 |
1 | ||
| 90119-12252 |
ACA30,33,38,ALA3#..MTM *12-1.25PX60-30 |
2 | ||
| 91512-61065 |
ACA30,33,38,ALA3#..MTM *10-1.25PX65-30 |
1 | ||
| 91512-61060 |
ACA30,33,38,ALA3#..MTM *10-1.25PX60-30 |
2 | ||
| 91512-61060 |
ACA33,38..5F *10-1.25PX60-30 |
2 | ||
| 90105-12147 |
ACA30,33,38..5F *12-1.25PX74.5-25 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ACA33,38..5F *8-1.25PX45-27.5,NO.1 & NO.2 |
17 | ||
| 90105-08126 |
ACA3#..5F *8-1.25PX45-27.5,NO.1 |
3 | ||
| 90105-08086 |
ACA3#..5F *8-1.25PX45-27.5,NO.2 |
14 | ||
| 90105-08126 |
ACA30,33,38..5F *8-1.25PX45-27.5,NO.1 & NO.2 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ACA33,38..5F *8-1.25PX45-27.5,NO.1 & NO.2 |
17 | ||
| 90105-08126 |
ACA3#..5F *8-1.25PX45-27.5,NO.1 |
3 | ||
| 90105-08086 |
ACA3#..5F *8-1.25PX45-27.5,NO.2 |
14 | ||
| 90105-08126 |
ACA30,33,38..5F *8-1.25PX45-27.5,NO.1 & NO.2 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
ACA33,38..5F |
1 | ||
| 90341-18033 |
ACA30,33,38,ALA3#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ACA33,38..5F |
1 | ||
| 90430-18008 |
ACA30,33,38,ALA3#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
ACA30,33,38..5F |
1 | ||
| 90930-03133 |
ACA33,38..5F |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
ACA3#..5F |
1 | ||
| 33102E - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-33012 |
ACA33,38..5F |
1 | ||
| 33102-33012 |
ACA30,33,38..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
ACA33,38..5F |
1 | ||
| 90341-18006 |
ACA30,33,38,ALA3#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ACA33,38..5F |
1 | ||
| 90430-18008 |
ACA30,33,38,ALA3#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-42040 |
ACA33,38..5F |
1 | ||
| 33101-42040 |
ACA30,33,38..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ACA33,38..5F L=23,OD=8 |
6 | ||
| 90250-08054 |
ACA30,33,38..5F L=23,OD=8 |
6 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33107-20010 |
ACA30,33,38..5F |
1 | ||
| 33107-20010 |
ACA33,38..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 91641-H0820 |
ACA33,38..5F |
2 | ||
| 91641-H0820 |
ACA30,33,38..5F |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08273 |
ACA30,33,38..5F |
10 | ||
| 90105-08273 |
ACA33,38..5F |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-28050 |
ACA30,33,38..5F |
1 | ||
| 33124-28050 |
ACA33,38..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-28060 |
ACA33,38..5F |
1 | ||
| 33124-28060 |
ACA30,33,38..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08830 |
ACA33,38..5F |
2 | ||
| 90119-08830 |
ACA30,33,38..5F |
2 | ||
| 33143G - BAFFLE, TRANSMISSION OIL | ||||
| 33143-42010 |
ACA33,38..5F |
1 | ||
| 33143-42010 |
ACA30,33,38..5F |
1 | ||
| 33143H - BOLT(FOR TRANSMISSION OIL BAFFLE) | ||||
| 90119-08439 |
ACA33,38..5F |
1 | ||
| 90119-08439 |
ACA30,33,38..5F |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-20230 |
ACA30,33,38,ALA3#,ZSA3#..MTM |
1 | ||
| 33403-20230 |
ACA33,38..5F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24018 |
ACA30,33,38,ALA3#,ZSA3#..MTM |
1 | ||
| 96711-24018 |
ACA33,38..5F |
1 | ||
| Common parts | ||||
| 91611-60628 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
