ACA33L-ANPXKV (2005)
Toyota Rav4

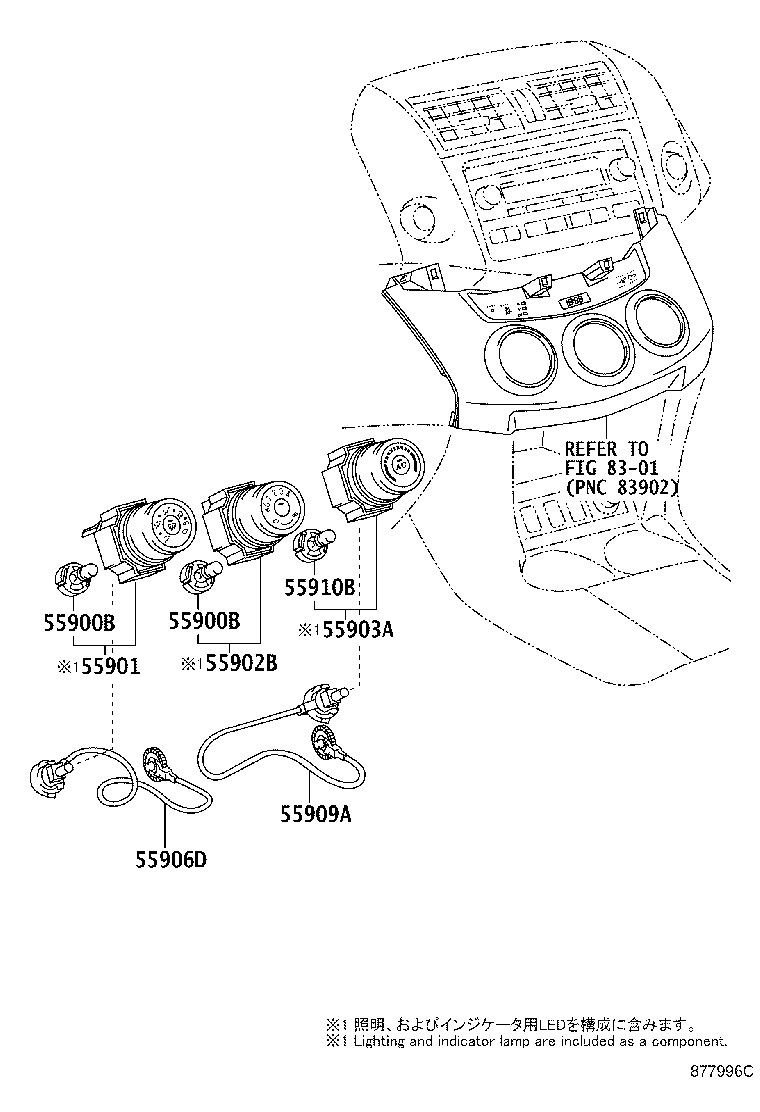

ILLUST NO. 1 OF 3(0511-0808)ACA33,38,GSA33..X ; (0511-0812)ACA30,ALA30 ; (0808- )ACA33,38,GSA33..
CONTROL PANEL---MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-01122 |
ACA33,38,GSA33..X 14V 1.8W |
1 | ||
| 90010-01122 |
ACA33,38,GSA33..X 14V 1.8W |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-01122 |
ACA33,38,GSA33..X 14V 1.8W |
1 | ||
| 90010-01122 |
ACA33,38,GSA33..X 14V 1.8W |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-42010 |
ACA33,38,GSA33..X |
1 | ||
| 55901-42010 |
ACA33,38,GSA33..X |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-42020 |
ACA33,38,GSA33..X |
1 | ||
| 55902-42020 |
ACA33,38,GSA33..X |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-42010 |
ACA33,38,GSA33..X |
1 | ||
| 55903-42010 |
ACA33,38,GSA33..X |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-26060 |
ACA33,38,GSA33..X |
1 | ||
| 55906-26060 |
ACA33,38,GSA33..X |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-26080 |
ACA33,38,GSA33..X |
1 | ||
| 55909-26080 |
ACA33,38,GSA33..X |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
ACA33,38,GSA33..X |
1 | ||
| 90010-01122 |
ACA33,38,GSA33..X |
1 | ||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 3 OF 3(0511- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-42020 |
ACA30,31,33,ALA30..LHD..G..(EUR,GCC) |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-51010 |
ACA30,31,33,ALA30..G..(EUR,GCC) |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 88790-22131 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ACA30,31,33,ALA30..G..(EUR,GCC) |
1 | ||
ILLUST NO. 2 OF 3(0511- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-42050 |
ACA33..G..GCC;ACA30,31,ALA30..LHD |
1 | ||
| 55843-42050 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-42070 |
ACA33..G..GCC;ACA30,31,ALA30..LHD |
1 | ||
| 55844-42070 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-42060 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 55845-42060 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-42030 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 55870-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-42030 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 55950-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-42090 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87211-42090 |
ACA33..G..GCC;ACA30,31,ALA30..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-42100 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87211-42100 |
ACA33..G..GCC;ACA30,31,ALA30..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 87212-42050 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-42040 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87213-42040 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 87215-42050 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-42070 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87220-42070 |
ACA33..G..GCC;ACA30,31,ALA30..LHD |
1 | ||
| Common parts | ||||
| 90467-07215 | ||||
| 93568-55014 | ||||

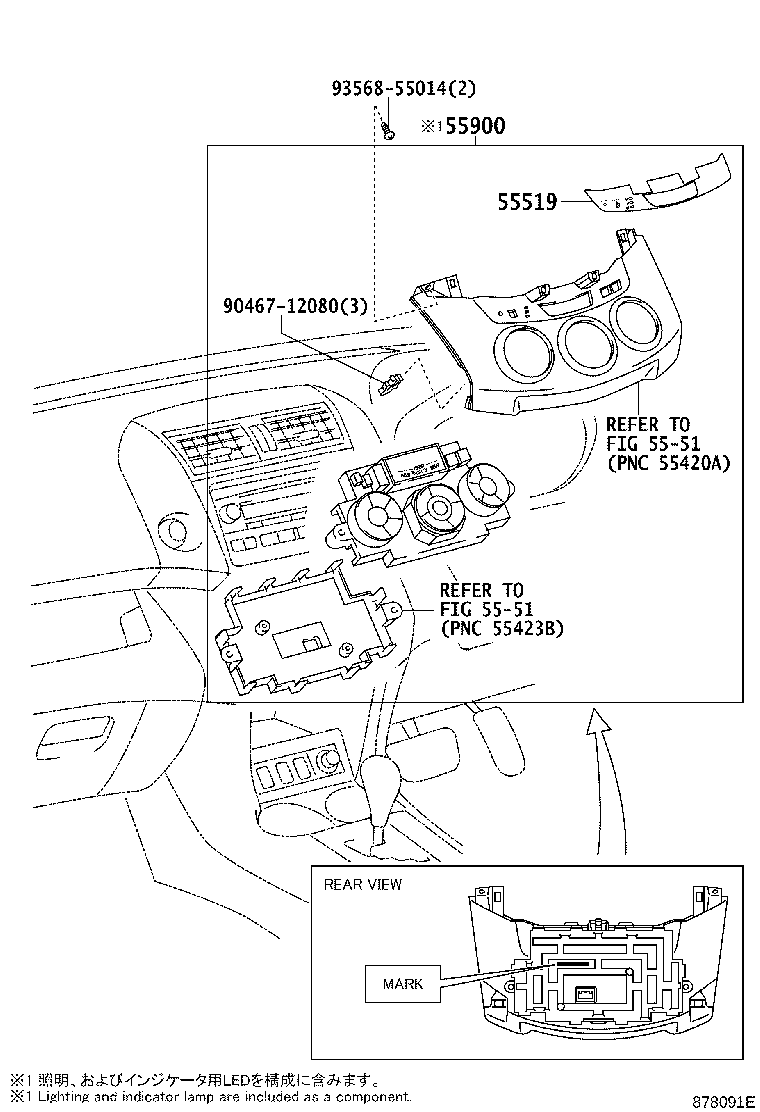

ILLUST NO. 1 OF 3(0511-0808)ACA33,38,GSA33..G ; (0511-0812)ACA30,31,ALA30..G ; (0808- )ARL ; (080
CONTROL PANEL---AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-42140 |
ACA33..G..GCC |
1 | ||
| 55519-42140 |
ACA33..G..GCC |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-42270B0 |
ACA33,38..LHD..G GRAY,TRIM1#,4#,MARK=55900-42270 |
1 | ||
| 55900-42270B0 |
ACA33,38..LHD..G GRAY,TRIM1#,4#,MARK=55900-42270 |
1 | ||
| 55900-42270 |
ACA33,38..LHD..G MARK=55900-42270 |
1 | ||
| 55900-42270 |
ACA33,38..LHD..G MARK=55900-42270 |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
