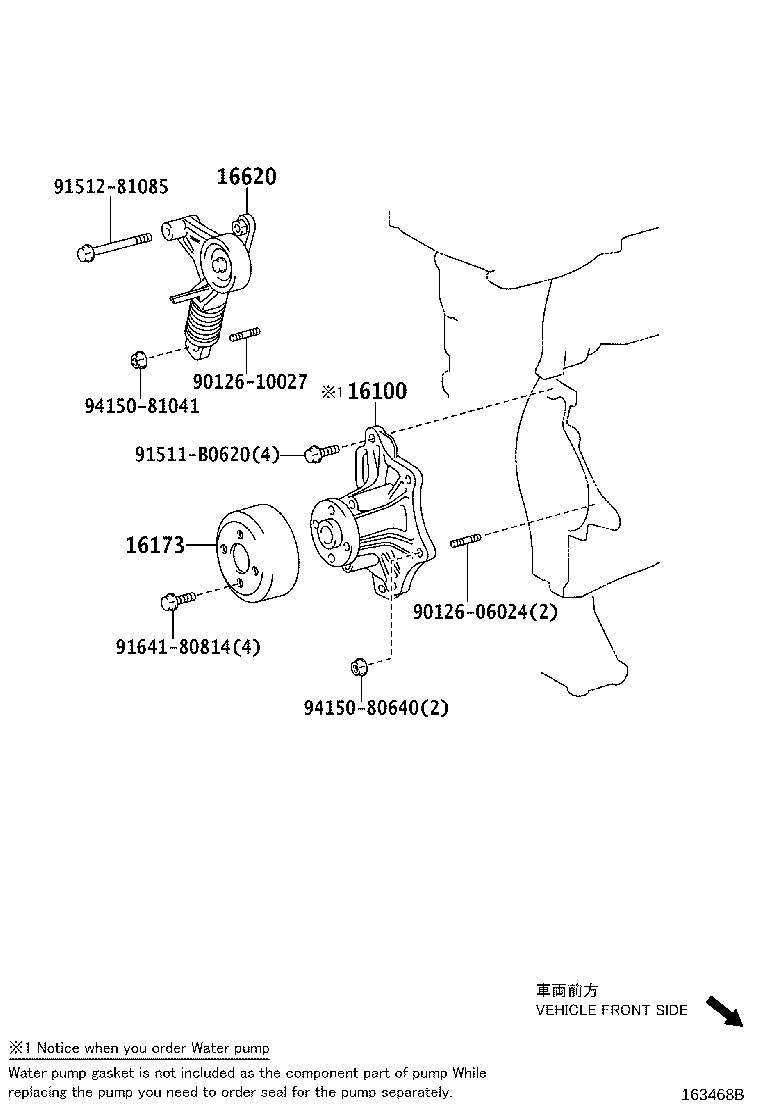

Toyota Rav4 ACA33 WATER PUMP - JDM Part Detective

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-28040	1AZFE,2AZFE..ACA3#	11/2005 - 01/2007	1
16100-28041	2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN	01/2007 - 08/2008	1
16173 - PULLEY, WATER PUMP
16173-28020	2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN	11/2005 - 08/2008	1
16173-28020	2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31	11/2005 - 12/2008	1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-28020	2AZFE..ACA33,38 OTICS	11/2005 - 10/2006	1
16601-28021	2AZFE..ACA31,33,38 OTICS	10/2006 - 04/2008	1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-28020	2AZFE..ACA33,38 OTICS	11/2005 - 10/2006	1
16601-28021	2AZFE..ACA31,33,38 OTICS	10/2006 - 04/2008	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28040	2AZFE..ACA33,38	11/2005 - 10/2006	1
16620-28041	2AZFE..ACA31,33,38	10/2006 - 04/2008	1
16620-0H020	2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN	04/2008 - 08/2008	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28040	2AZFE..ACA33,38	11/2005 - 10/2006	1
16620-28041	2AZFE..ACA31,33,38	10/2006 - 04/2008	1
16620-0H020	2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN	04/2008 - 08/2008	1
Common parts
90105-10509
90126-06024
90126-10027
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041

ACA33L-ANPXKV (2005)
