ACA33L-ANMXK (2005)
Toyota Rav4
(0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31,ALA30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

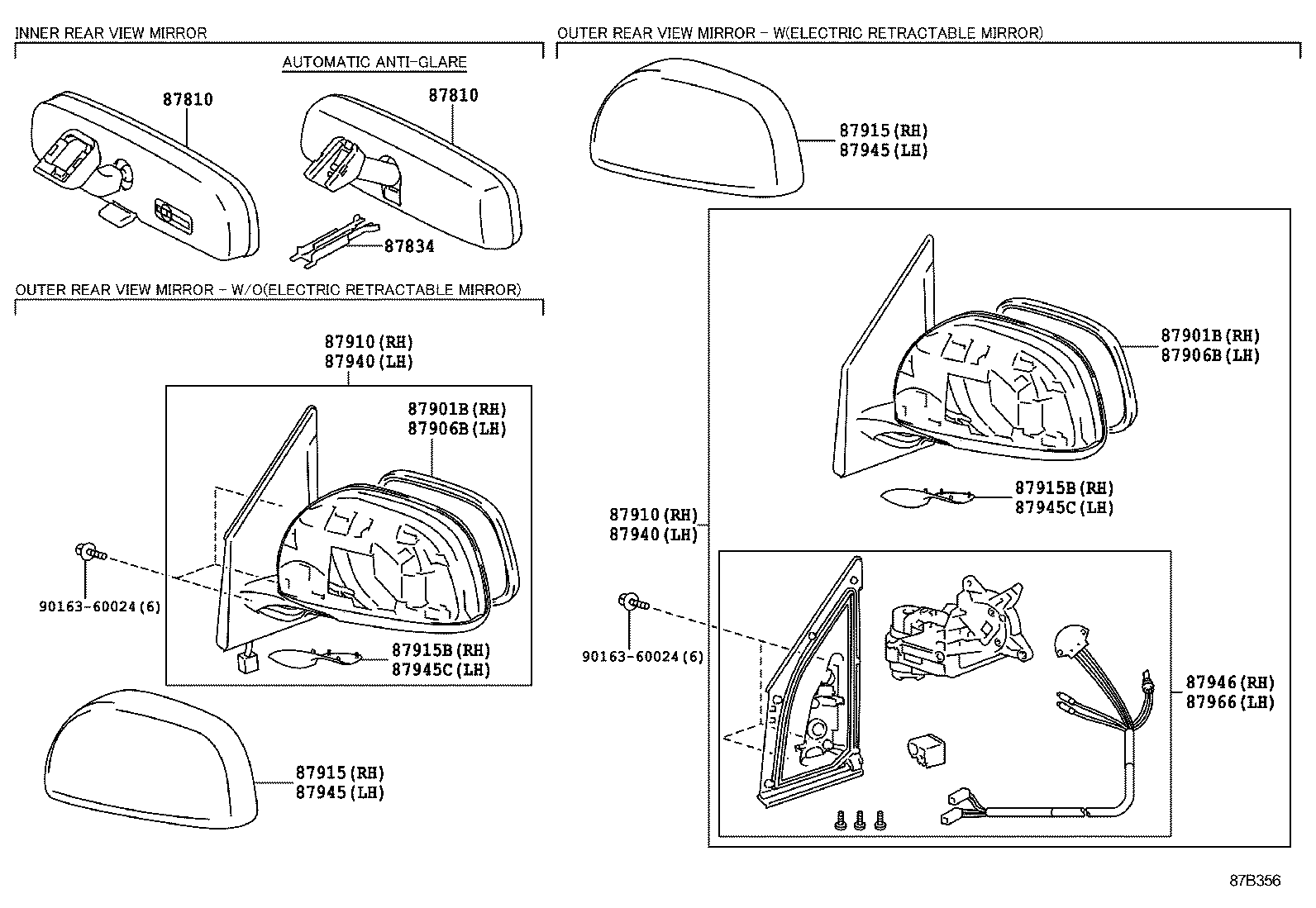

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
ACA3#,ALA30 |
1 | ||
| 87810-52041 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
ACA3#,ALA30 |
1 | ||
| 87810-52041 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42A20 |
ACA33,38..X..GEN |
1 | ||
| 87931-42890 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42A20 |
ACA33,38..X..GEN |
1 | ||
| 87931-42890 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42790 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X |
1 | ||
| 87961-52730 |
ACA33,38..X..GEN |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42790 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X |
1 | ||
| 87961-52730 |
ACA33,38..X..GEN |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42890 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X NO PAINT REQ. |
1 | ||
| 87910-42A20 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42890 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X NO PAINT REQ. |
1 | ||
| 87910-42A20 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42031A1 |
ACA33,38,GSA33..G WHITE PEARL CS.,070 |
1 | ||
| 87915-42031C0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR BLACK,202 |
1 | ||
| 87915-42031B1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 87915-42031D0 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 87915-42031E0 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 87915-42041 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87915-42031G1 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 87915-42031J0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42031J1 |
ACA30,31,ALA30;ACA33,38..G..GEN DK.BLUE MC.,8S6 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42031A1 |
ACA33,38,GSA33..G WHITE PEARL CS.,070 |
1 | ||
| 87915-42031C0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR BLACK,202 |
1 | ||
| 87915-42031B1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 87915-42031D0 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 87915-42031E0 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 87915-42041 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87915-42031G1 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 87915-42031J0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42031J1 |
ACA30,31,ALA30;ACA33,38..G..GEN DK.BLUE MC.,8S6 |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42090 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42090 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42860 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87940-42830 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42860 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87940-42830 |
ACA33,38..G..GEN;ACA30,ALA30..LHD..X NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42031E0 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 87945-42031A1 |
ACA33,38,GSA33..G WHITE PEARL CS.,070 |
1 | ||
| 87945-42031C0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR BLACK,202 |
1 | ||
| 87945-42031J0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42031D0 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 87945-42031J1 |
ACA30,31,ALA30;ACA33,38..G..GEN DK.BLUE MC.,8S6 |
1 | ||
| 87945-42031G1 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 87945-42031B1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 87945-42041 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42031E0 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 87945-42031A1 |
ACA33,38,GSA33..G WHITE PEARL CS.,070 |
1 | ||
| 87945-42031C0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR BLACK,202 |
1 | ||
| 87945-42031J0 |
ACA33..X..GCC;ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42031D0 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 87945-42031J1 |
ACA30,31,ALA30;ACA33,38..G..GEN DK.BLUE MC.,8S6 |
1 | ||
| 87945-42031G1 |
ACA33..X..GCC;ACA33,GSA33..ARL;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 87945-42031B1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 87945-42041 |
ACA33,38..X..GEN NO PAINT REQ. |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42090 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42090 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
