ACA33L-ANMXK (2005)

Toyota Rav4

Production Nov 2005 - Aug 2008
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA33..G..GCC,GEN ; (0511- )ACA33,38,GSA33..ARL,EUR ; (0511- )ACA3

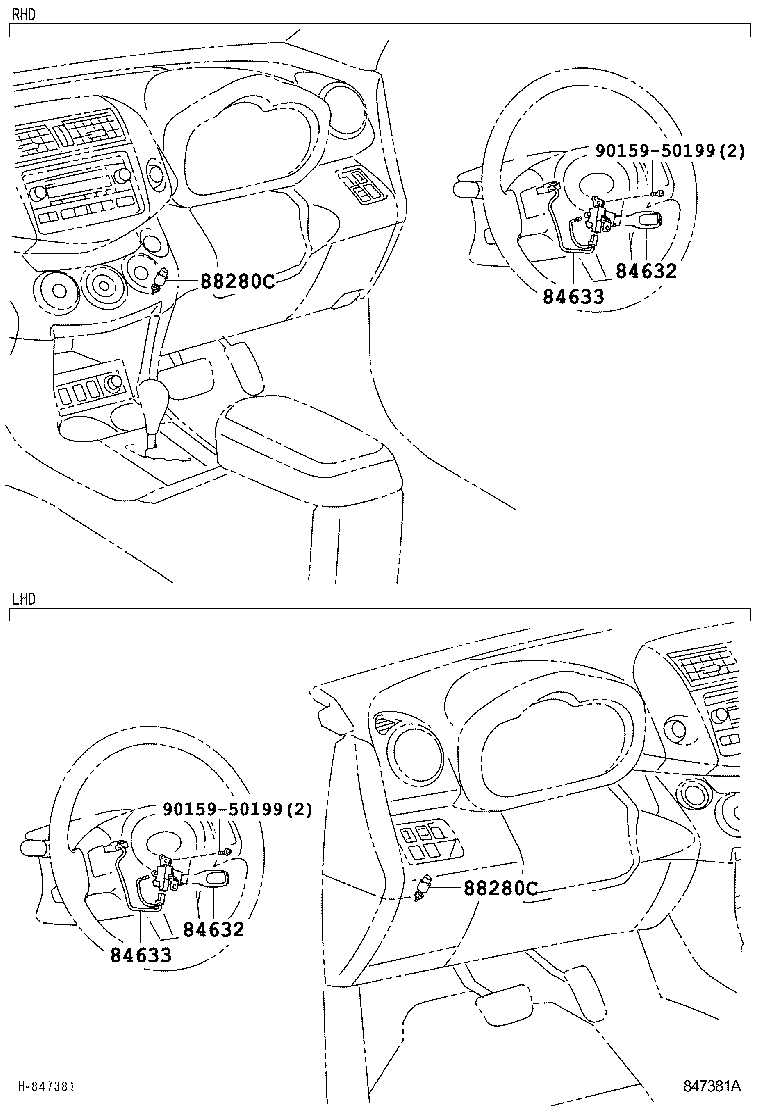

Click highlighted areas on diagram

diagram 84632 84632 84633 84633 88280C 88280C 9015950199 9015950199
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

ACA33,38..G..GEN;ACA33,GSA33..ARL

 1
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

ACA33,38..G..GEN;ACA33,GSA33..ARL

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

ACA33,38..G..GEN

AUDIO-AM/FM,CASSETTE,CD

 1
84633-42030

ACA33..X..ARL;ACA33,38..G..GEN

 1
84633-48020

ACA33,38..G..GEN

AUDIO-AM/FM,CASSETTE,CD6CH

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

ACA33,38..G..GEN

AUDIO-AM/FM,CASSETTE,CD

 1
84633-42030

ACA33..X..ARL;ACA33,38..G..GEN

 1
84633-48020

ACA33,38..G..GEN

AUDIO-AM/FM,CASSETTE,CD6CH

 1
Common parts
90159-50199
