ACA33L-ANMXK (2005)
Toyota Rav4
ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD
DRIVER SIDE-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42190B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71072-42190E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71072-42240B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42240E0 |
ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42100E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71074-42070B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42100B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370E0 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71074-42070E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42090E0 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42450B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42170 |
ACA33,38..LHD..X |
1 | ||
| 71120-42070 |
ACA33,38..LHD..G |
1 | ||
| 71120-42190 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42080 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42110 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42100 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42F00B0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42F30E1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B4 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42E60E3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42E60E4 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B4 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42F30E2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60E7 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00E1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B6 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42E60B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42F30E5 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-42040 |
ACA30,ALA30..LHD;ACA33,38..LHD..G |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-42030 |
ACA33,38..LHD..X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42120 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71552-42020 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42030 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B3 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71771-42010E6 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71812-42100B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71812-42100E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71862-42060B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-42060E0 |
ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE) FAWN,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71875-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71875-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71876-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42110B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130E1 |
ACA33,38..G..GEN;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71910-42110E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-42010E0 |
ACA33,38..LHD FAWN,TRIM4# |
1 | ||
| 72462-42010B1 |
ACA38;ACA33..LHD..X;ACA33..G..GEN GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-42010B1 |
ACA38;ACA33..LHD..X;ACA33..G..GEN GRAY,TRIM1# |
1 | ||
| 72495-42010E0 |
ACA33,38..LHD FAWN,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42020E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72526-42020B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73920-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||

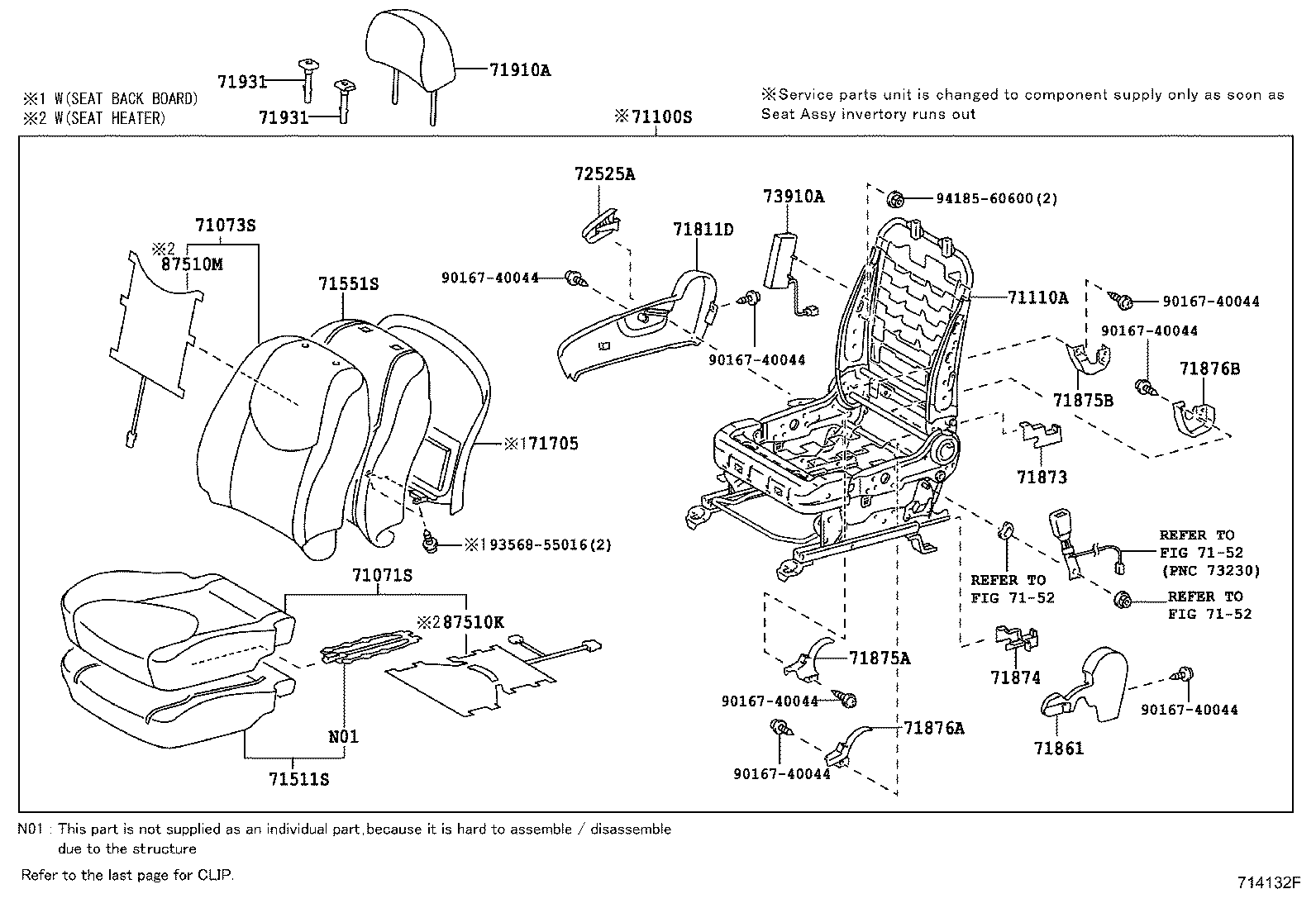

ILLUST NO. 2 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD
PASSENGER SIDE-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42440E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-42370E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71071-42440E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71071-42370B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71071-42390B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71071-42441E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42390E0 |
ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71071-42441E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42100B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71073-42350E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42370E0 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71073-42350B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42100E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71073-42380B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42470E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42470B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71073-42450B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42E20E1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20E2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42E20B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71100-42G20B0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71100-42G20E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20E3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100-42E20B2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71100-42E20E2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20B3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100-42G20B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71100-42G20E1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20B4 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100-42E20B3 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100-42E20E5 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F20E6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42170 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42150 |
ACA33,38..LHD..X |
1 | ||
| 71110-42030 |
ACA33,38..LHD..G |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71051-42020 |
ACA30,ALA30..LHD;ACA33,38..LHD..G |
1 | ||
| 71051-42010 |
ACA33,38..LHD..X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42070 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42100 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42100 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B3 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42080E0 |
ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71811-42080B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070E0 |
ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE) FAWN,TRIM4# |
1 | ||
| 71861-42070B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71875-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71876-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42110B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130E1 |
ACA33,38..G..GEN;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71910-42110E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010E0 |
ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72525-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

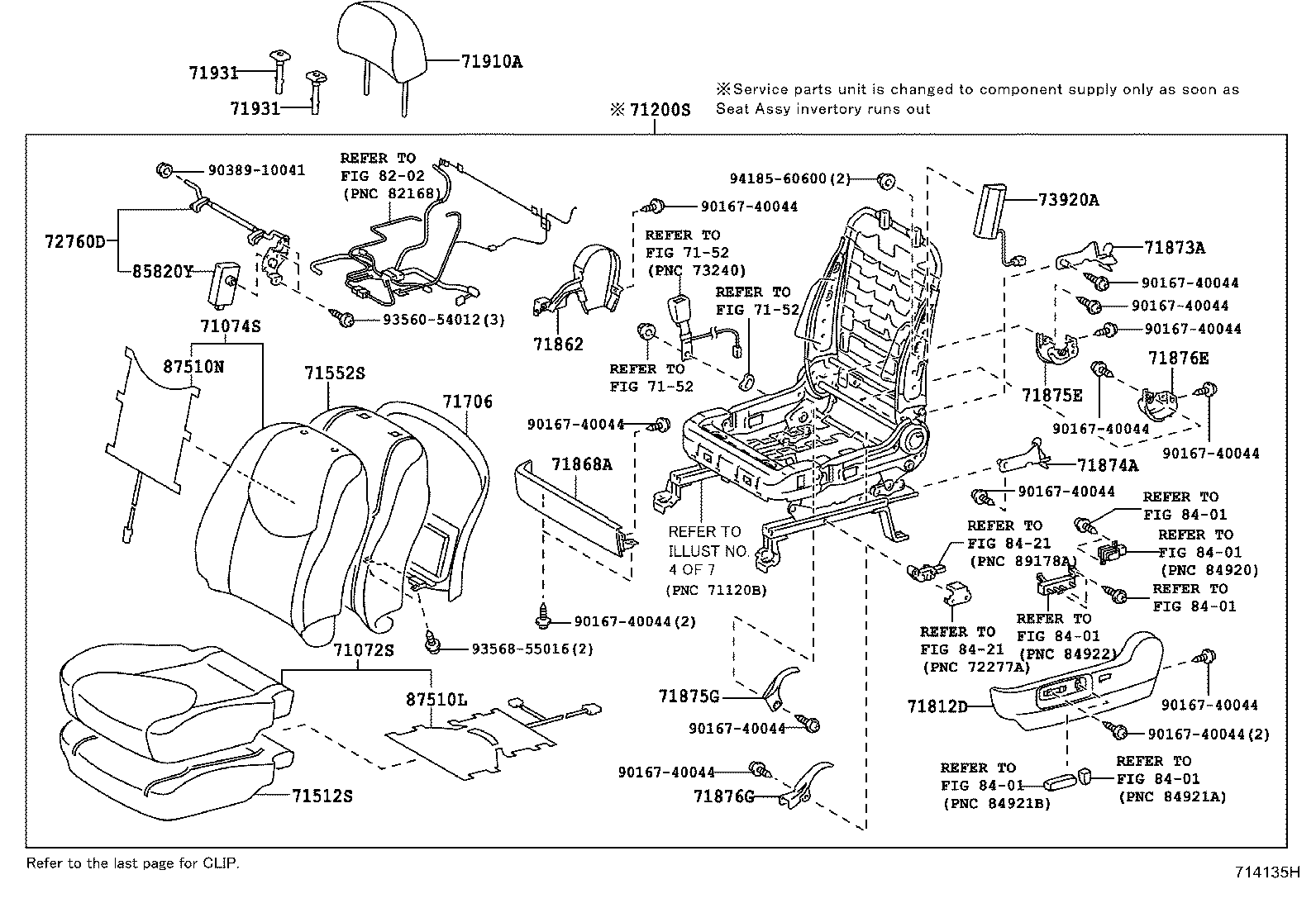

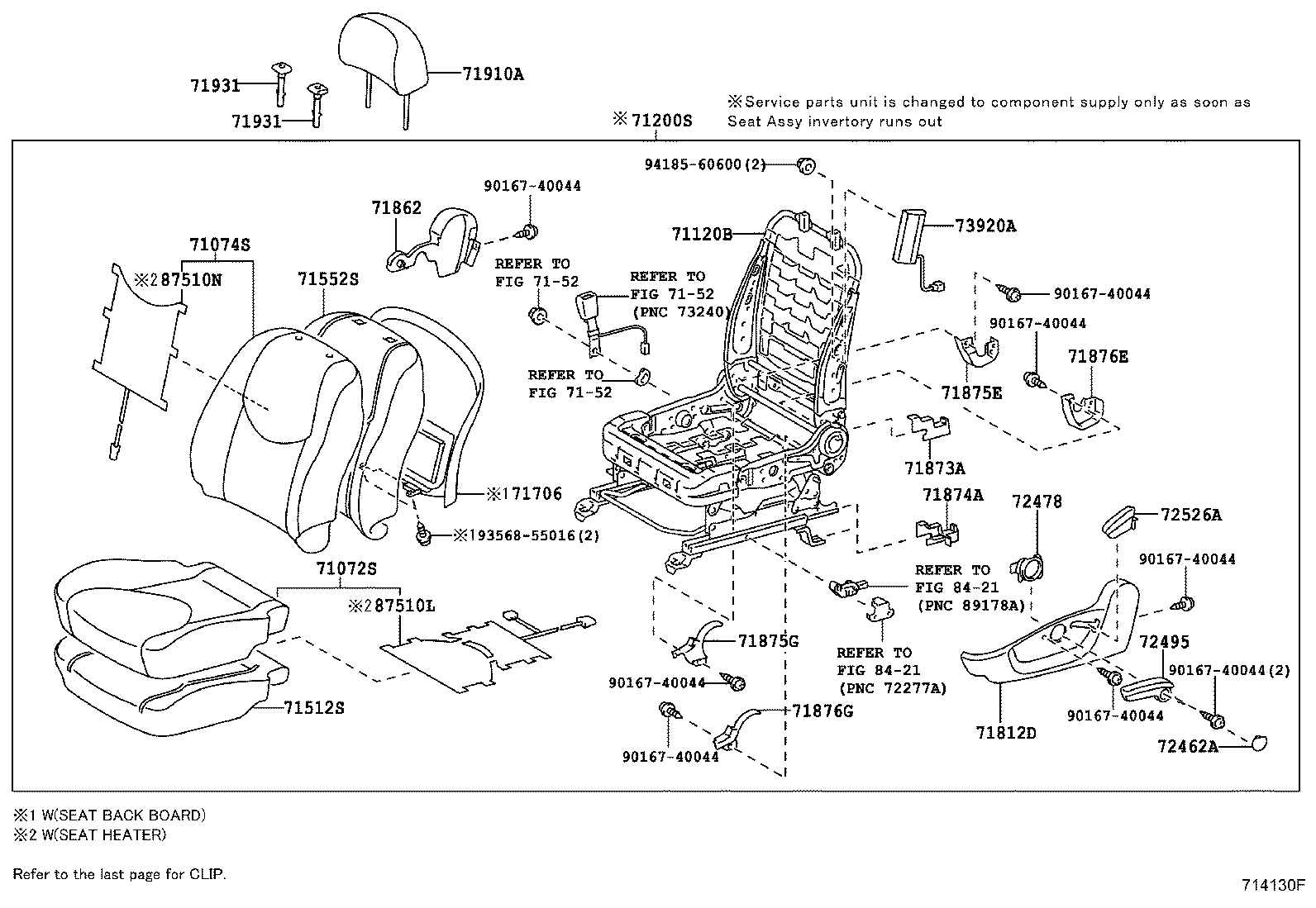

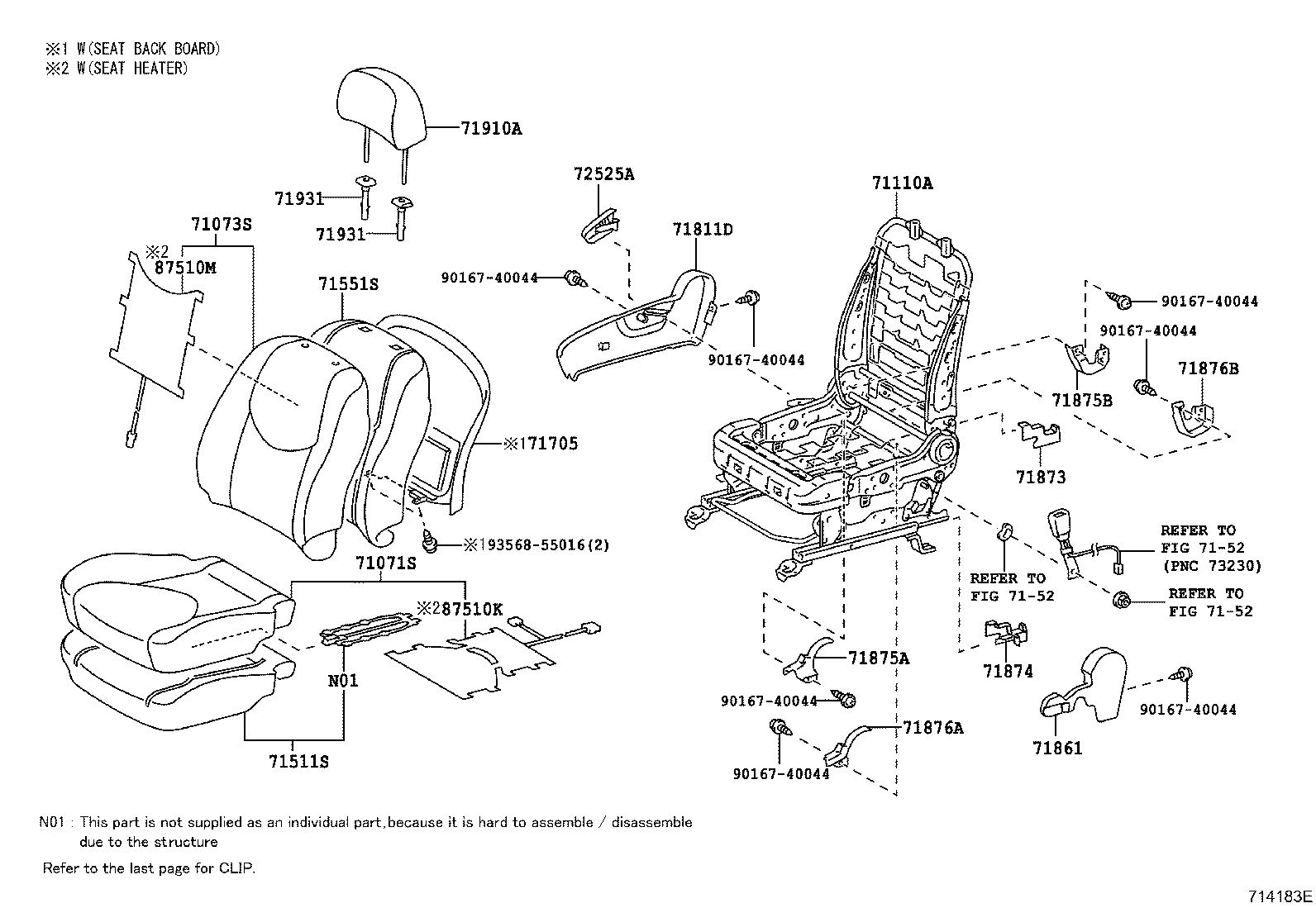

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD
DRIVER-W(POWER SEAT & SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42190B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71072-42190E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71072-42240B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42240E0 |
ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42100E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71074-42070B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42100B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370E0 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71074-42070E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42090E0 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42450B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42F00B0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42F30E1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B4 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42E60E3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42E60E4 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B4 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42F30E2 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60E7 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F00E1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42F30B6 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42E60B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42F30E5 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-42040 |
ACA30,ALA30..LHD;ACA33,38..LHD..G |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-42030 |
ACA33,38..LHD..X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42120 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71552-42020 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42030 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B3 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71771-42010E6 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71812-42100B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71812-42100E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71862-42060B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-42060E0 |
ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE) FAWN,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71868-60020B3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71868-60020B3 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71868-60020E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71875-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71875-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71876-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42110B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130E1 |
ACA33,38..G..GEN;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71910-42110E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-33060 |
ACA33,38..G..GEN SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73920-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85820-60130 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 7 OF 7(0511- )
REAR SEAT:LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66994 - COVER, CUP HOLDER | ||||
| 66994-42010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 66994-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
2 | ||
| 66994 - COVER, CUP HOLDER | ||||
| 66994-42010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 66994-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
2 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-42110 |
ACA33,38,GSA33 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-42410E1 |
ACA33,38..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71076-42390E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 71076-42400E0 |
ACA33,38..G FAWN,TRIM4# |
1 | ||
| 71076-42390B0 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71076-42410B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71076-42400B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-42330B0 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71078-42350B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71078-42350E1 |
ACA33,38..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71078-42340E0 |
ACA33,38..G FAWN,TRIM4# |
1 | ||
| 71078-42330E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 71078-42340B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71499D - DAMPER, REAR SEAT BACK SPRING | ||||
| 71499-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-42080 |
ACA33,38,GSA33 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-42080 |
ACA33,38,GSA33 |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71693-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71694-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-42030B1 |
ACA33,38..LHD GRAY,TRIM1#,LH |
1 | ||
| 71695-42030E0 |
ACA33,38 FAWN,TRIM4#,LH |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-42060 |
ACA3#,ALA30,GSA33 |
2 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71826-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71829-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2 | ||||
| 71918-42010 |
ACA33,38,GSA33 |
2 | ||
| 71918B - SPRING, CENTER SEAT CUSHION CATCH, NO.2 | ||||
| 71918-42010 |
ACA33,38,GSA33 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42010B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71940-42010E0 |
ACA33,38..X FAWN,TRIM4# |
2 | ||
| 71940-42020E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71940-42030E1 |
ACA30,33,38,ALA30..G..(ARL,EUR,GEN) SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71940-42020B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71940-42030B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-42010E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 71960-42010B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71960-42020B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71960-42030B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71960-42030E1 |
ACA30,33,38,ALA30..G..(ARL,EUR,GEN) SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71960-42020E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-42020 |
ACA33,38,GSA33 |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42020 |
ACA3#,ALA30,GSA33 RH |
1 | ||
| 72380-42030 |
ACA3#,ALA30,GSA33 LH |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72597-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-42040 |
ACA33,38,GSA33 |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-13010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4#,NO.1 |
1 | ||
| 72635-13010B3 |
ACA33,38..LHD GRAY,TRIM1#,NO.1 |
1 | ||
| 72635-13020B3 |
ACA33,38..LHD GRAY,TRIM1#,NO.2 |
1 | ||
| 72635-13020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4#,NO.2 |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-13010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4#,NO.1 |
1 | ||
| 72635-13010B3 |
ACA33,38..LHD GRAY,TRIM1#,NO.1 |
1 | ||
| 72635-13020B3 |
ACA33,38..LHD GRAY,TRIM1#,NO.2 |
1 | ||
| 72635-13020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4#,NO.2 |
1 | ||
| 72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH | ||||
| 72678-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72678-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-42010B0 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72690-42010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72736 - LEVER, REAR SEAT RECLINING RELEASE, LH | ||||
| 72736-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72736-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-42080 |
ACA33,38,GSA33 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-42080 |
ACA33,38,GSA33 |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3#,ALA30,GSA33 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3#,ALA30,GSA33 |
4 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-42010E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 72830-42010B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 72830-42020B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 72830-42020E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72830-42030E1 |
ACA30,33,38,ALA30..G..(ARL,EUR,GEN) SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 72830-42030B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-42010B3 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 72840-42010E2 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 72840-42020B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 72840-42030B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72840-42030E1 |
ACA30,33,38,ALA30..G..(ARL,EUR,GEN) SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 72840-42020E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72868-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72869-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72987-42010E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72997-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72998C - COVER, REAR SEAT, LH | ||||
| 72998-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72998-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-42020E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79958-42020B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-42010E0 |
ACA33,38 FAWN,TRIM4# |
4 | ||
| 79959-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
4 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79967-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 79967-42010E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79968 - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79968-42010E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79968-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72622-42010 | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90176-08030 | ||||
| 90179-08241 | ||||
| 90463-10060 | ||||
| 90467-13046 | ||||
| 91553-80818 | ||||
| 91673-80616 | ||||
| 93269-54008 | ||||
| 94150-80600 | ||||
| 96160-00900 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,ALA30..LHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42440E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-42370E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71071-42440E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71071-42370B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71071-42390B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71071-42441E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42390E0 |
ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71071-42441E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42100B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71073-42350E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42370E0 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71073-42350B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42100E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71073-42380B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42470E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42470B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71073-42450B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42170 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42150 |
ACA33,38..LHD..X |
1 | ||
| 71110-42030 |
ACA33,38..LHD..G |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71051-42020 |
ACA30,ALA30..LHD;ACA33,38..LHD..G |
1 | ||
| 71051-42010 |
ACA33,38..LHD..X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42070 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42100 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42100 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B3 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42080E0 |
ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71811-42080B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070E0 |
ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE) FAWN,TRIM4# |
1 | ||
| 71861-42070B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71875-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71876-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42110B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130E1 |
ACA33,38..G..GEN;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71910-42110E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010E0 |
ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72525-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 6 OF 7(0511- )
REAR SEAT:RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-42110 |
ACA33,38,GSA33 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-42400E0 |
ACA33,38..G FAWN,TRIM4# |
1 | ||
| 71075-42390E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 71075-42390B0 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71075-42410E1 |
ACA33,38..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71075-42400B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71075-42410B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42360E0 |
ACA33,38..X FAWN,TRIM4# |
1 | ||
| 71077-42360B0 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71077-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71077-42370E0 |
ACA33,38..G FAWN,TRIM4# |
1 | ||
| 71077-42380E1 |
ACA33,38..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71077-42380B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-42080 |
ACA33,38,GSA33 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-42080 |
ACA33,38,GSA33 |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71691-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71692-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-42030B1 |
ACA33,38..LHD GRAY,TRIM1#,LH |
1 | ||
| 71695-42030E0 |
ACA33,38 FAWN,TRIM4#,LH |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71695-42060 |
ACA3#,ALA30,GSA33 |
2 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71825-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71828-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 71918A - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42010 |
ACA3#,ALA30,GSA33 INNER |
1 | ||
| 71918-42030 |
ACA3#,ALA30,GSA33 OUTER |
1 | ||
| 71918A - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42010 |
ACA3#,ALA30,GSA33 INNER |
1 | ||
| 71918-42030 |
ACA3#,ALA30,GSA33 OUTER |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931-42020E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42010B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71940-42010E0 |
ACA33,38..X FAWN,TRIM4# |
2 | ||
| 71940-42020E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(ARL,EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71940-42030E1 |
ACA30,33,38,ALA30..G..(ARL,EUR,GEN) SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71940-42020B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71940-42030B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-42020 |
ACA33,38,GSA33 |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42020 |
ACA3#,ALA30,GSA33 RH |
1 | ||
| 72380-42030 |
ACA3#,ALA30,GSA33 LH |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-42010 |
ACA3#,ALA30,GSA33 |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-42020 |
ACA33,38,GSA33 |
1 | ||
| 72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH | ||||
| 72677-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72677-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-42080 |
ACA33,38,GSA33 |
1 | ||
| 72735 - LEVER, REAR SEAT RECLINING RELEASE | ||||
| 72735-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72735-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3#,ALA30,GSA33 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
ACA3#,ALA30,GSA33 |
4 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-42070B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72995-42070E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-42010E0 |
ACA33..X..GCC;ACA33,38..ARL,GEN;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 72996-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-42020E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79957-42020B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-42010E0 |
ACA33,38 FAWN,TRIM4# |
4 | ||
| 79959-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
4 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-42010E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79965-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79966-42010E0 |
ACA33,38 FAWN,TRIM4# |
1 | ||
| 79966-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 90463-10060 | ||||
| 90467-13046 | ||||
| 91673-80616 | ||||
| 93269-54008 | ||||
| 94150-80600 | ||||
| 96160-00900 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,ALA30..LHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42300B2 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42190B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71072-42190E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71072-42240B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71072-42301E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42240E0 |
ACA30,33,38,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42100E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
1 | ||
| 71074-42070B1 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42100B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370E0 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71074-42070E0 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42090E0 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42450B0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42170 |
ACA33,38..LHD..X |
1 | ||
| 71120-42070 |
ACA33,38..LHD..G |
1 | ||
| 71120-42190 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42080 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42110 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42100 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-42040 |
ACA30,ALA30..LHD;ACA33,38..LHD..G |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71052-42070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71512-42030 |
ACA33,38..LHD..X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42120 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71552-42020 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42030 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B3 |
ACA33,38..LHD..G GRAY,TRIM1# |
1 | ||
| 71771-42010E6 |
ACA33,38..LHD..G FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812-42110E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71812-42100B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71812-42100E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71812-42110B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71862-60100E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71862-42060B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71862-60100B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-42060E0 |
ACA38;ACA33..LHD..X;ALA30..RHD..G;ACA30,33..G..(EUR,GEN);ALA30..LHD..G..(DCR,DCRE) FAWN,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60150E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71875-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71875-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-60150B5 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-60140 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71876-60170E0 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71876-42050E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..G..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 71876-42050B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 71876-60170B6 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42110B1 |
ACA33,38..LHD..X GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130E1 |
ACA33,38..G..GEN;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71910-42110E0 |
ACA33,38..LHD..X FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA30,33,38,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA33,38..LHD..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA33,38..LHD W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA33,38..LHD W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-42040 |
ACA33,38..LHD |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-42040 |
ACA33,38..LHD |
1 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-42010E0 |
ACA33,38..LHD FAWN,TRIM4# |
1 | ||
| 72462-42010B1 |
ACA38;ACA33..LHD..X;ACA33..G..GEN GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
ACA38;ACA33..LHD..X;ACA33..G..GEN |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-42010B1 |
ACA38;ACA33..LHD..X;ACA33..G..GEN GRAY,TRIM1# |
1 | ||
| 72495-42010E0 |
ACA33,38..LHD FAWN,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42020E0 |
ACA38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(DCR,DCRE,HTWC)..(EUR,GEN) FAWN,TRIM4# |
1 | ||
| 72526-42020B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 5 OF 7(0511- )
FRONT SEAT(SEAT TRACK COVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42010E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 72123-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72123-42010E0 |
ACA33,38;ACA30,ALA30..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 72124-42010B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 72124-42010E0 |
ACA30,33,38,ALA30..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72127-42010E0 |
ACA33,38;ACA30,31,ALA30..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42010E0 |
ACA33,38;ACA30,ALA30..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 72128-42010B1 |
ACA33,38..LHD GRAY,TRIM1# |
1 | ||
| 72128-42020E0 |
ACA30,33,38,ALA30..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 72128-42020B1 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10966 | ||||
(0511- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 4 OF 7(0511-1212)G
FRONT POWER SEAT FRAME ASSY(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42170 |
ACA33,38..LHD..X |
1 | ||
| 71120-42070 |
ACA33,38..LHD..G |
1 | ||
| 71120-42190 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42080 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42110 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42100 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-42020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-60020 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-60040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-60030 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48020 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
ILLUST NO. 3 OF 7(0511-1212)G
FRONT POWER SEAT FRAME ASSY(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42170 |
ACA33,38..LHD..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42150 |
ACA33,38..LHD..X |
1 | ||
| 71110-42030 |
ACA33,38..LHD..G |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42040 |
ACA33,38..LHD..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48020 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
