ACA31L-AWPGKW (2007)

Toyota Rav4

Production Jan 2007 - Dec 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

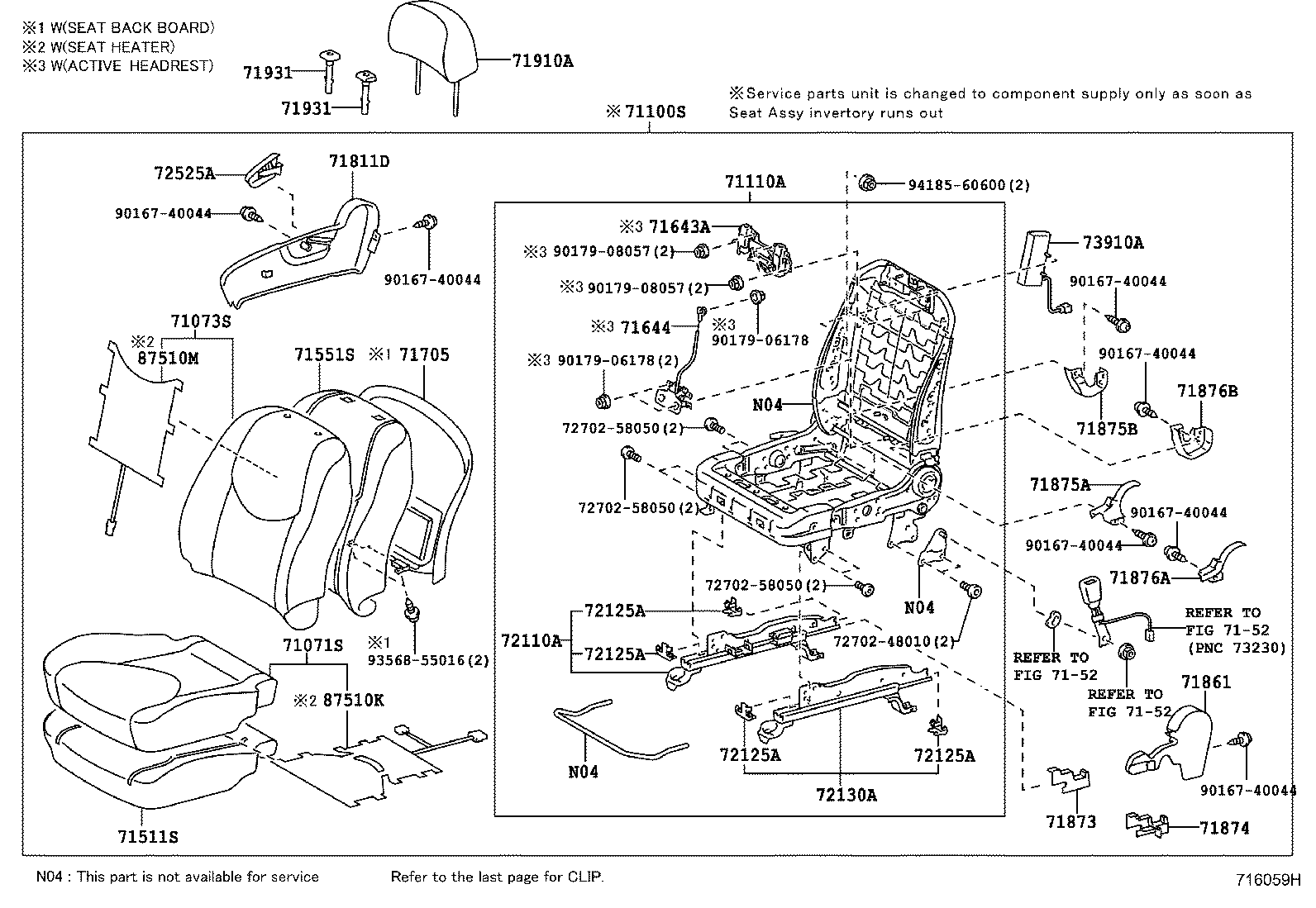

Click highlighted areas on diagram

DRIVER SIDE-W(SIDE AIR BAG)

diagram 71072S 71074S 71120B 71200S 71512S 7152 7152 7152 71552S 71706 71812D 71862 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72462A 72478 72495 72526A 73920A 8421 8421 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B3

ACA31

DK.GRAY,TRIM1#

 1
71072-42300E1

ACA31

FAWN,TRIM4#

 1
71072-42301B3

ACA31

DK.GRAY,TRIM1#

 1
71072-42301E1

ACA31

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-42130B2

ACA31

DK.GRAY,TRIM1#

 1
71074-42130E1

ACA31

FAWN,TRIM4#

 1
71074-42130E3

ACA31

FAWN,TRIM4#

 1
71074-42130B4

ACA31

DK.GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-42090

ACA31

 1
71200S - SEAT ASSY, FRONT LH
71200-42E30B4

ACA31

DK.GRAY,TRIM1#

 1
71200-42E30E3

ACA31

FAWN,TRIM4#

 1
71200-42E30E5

ACA31

FAWN,TRIM4#

 1
71200-42E30B5

ACA31

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-42070

ACA31

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-42050

ACA31

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B2

ACA30,31,ALA30..G

DK.GRAY,TRIM1#

 1
71771-42010E1

ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110E0

ACA31

FAWN,TRIM4#

 1
71812-42110B0

ACA31

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA31

FAWN,TRIM4#

 1
71862-60100B0

ACA31

DK.GRAY,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA31

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-30020

ACA31

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60140

ACA31

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150B0

ACA31

DK.GRAY,TRIM1#

 1
71876-60150E0

ACA31

FAWN,TRIM4#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60140

ACA31

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA31

FAWN,TRIM4#

 1
71876-60170B0

ACA31

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42130B2

ACA31

DK.GRAY,TRIM1#

 2
71910-42130E1

ACA31

FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-42030

ACA30,31,ALA30

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-42160

ACA31

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-42120

ACA31

 1
Common parts
90167-40044
93568-55016
94185-60600
Linked diagrams
7152
8421

ILLUST NO. 2 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

Click highlighted areas on diagram

PASSENGER SIDE-W(SIDE AIR BAG)

diagram 71071S 71073S 71100S 71110A 71511S 7152 7152 7152 71551S 71705 71811D 71861 71873 71874 71875A 71875B 71876A 71876B 71910A 71931 71931 72525A 73910A 87510K 87510M 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9356855016 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-42440B3

ACA31

DK.GRAY,TRIM1#

 1
71071-42440E1

ACA31

FAWN,TRIM4#

 1
71071-42441E1

ACA31

FAWN,TRIM4#

 1
71071-42441B3

ACA31

DK.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-42470E1

ACA31

FAWN,TRIM4#

 1
71073-42470B2

ACA31

DK.GRAY,TRIM1#

 1
71073-42470B4

ACA31

DK.GRAY,TRIM1#

 1
71073-42470E3

ACA31

FAWN,TRIM4#

 1
71100S - SEAT ASSY, FRONT RH
71100-42F10E2

ACA31

FAWN,TRIM4#

 1
71100-42F10B3

ACA31

DK.GRAY,TRIM1#

 1
71100-42F10B4

ACA31

DK.GRAY,TRIM1#

 1
71100-42F10E4

ACA31

FAWN,TRIM4#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42020

ACA30,31,ALA30..LHD

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-42041

ACA31

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-42100

ACA30,31,ALA30

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71771-42010E1

ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71771-42010B2

ACA30,31,ALA30..G

DK.GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-42080E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
71811-42080B0

ACA30,31,ALA30..LHD

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-42070E0

ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71861-42070B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42030

ACA3#,ALA30,GSA33

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA3#,ALA30,GSA33

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-42050B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA3#,ALA30,GSA33

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-42050B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA3#,ALA30,GSA33

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42130B2

ACA31

DK.GRAY,TRIM1#

 2
71910-42130E1

ACA31

FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-42010B0

ACA30,31,ALA30..LHD

DK.GRAY,TRIM1#

 1
72525-42010E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-42030

ACA30,31,ALA30

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-42160

ACA31

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87510-42120

ACA31

 1
Common parts
90167-40044
93568-55016
94185-60600
Linked diagrams
7152

ILLUST NO. 1 OF 7(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD

Click highlighted areas on diagram

DRIVER-W(POWER SEAT & SIDE AIR BAG)

diagram 71072S 71074S 71200S 71512S 7152 7152 7152 71552S 71706 71812D 71862 71868A 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72760D 73920A 8202 8401 8401 8401 8401 8401 8401 8421 8421 85820Y 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9038910041 9356054012 9356855016 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-42300B3

ACA31

DK.GRAY,TRIM1#

 1
71072-42300E1

ACA31

FAWN,TRIM4#

 1
71072-42301B3

ACA31

DK.GRAY,TRIM1#

 1
71072-42301E1

ACA31

FAWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-42130B2

ACA31

DK.GRAY,TRIM1#

 1
71074-42130E1

ACA31

FAWN,TRIM4#

 1
71074-42130E3

ACA31

FAWN,TRIM4#

 1
71074-42130B4

ACA31

DK.GRAY,TRIM1#

 1
71200S - SEAT ASSY, FRONT LH
71200-42E30B4

ACA31

DK.GRAY,TRIM1#

 1
71200-42E30E3

ACA31

FAWN,TRIM4#

 1
71200-42E30E5

ACA31

FAWN,TRIM4#

 1
71200-42E30B5

ACA31

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-42070

ACA31

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-42050

ACA31

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71771-42010B2

ACA30,31,ALA30..G

DK.GRAY,TRIM1#

 1
71771-42010E1

ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-42110E0

ACA31

FAWN,TRIM4#

 1
71812-42110B0

ACA31

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100E0

ACA31

FAWN,TRIM4#

 1
71862-60100B0

ACA31

DK.GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-60020E0

ACA31

FAWN,TRIM4#

 1
71868-60020B2

ACA31

DK.GRAY,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-30070

ACA31

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-30020

ACA31

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60140

ACA31

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-60150B0

ACA31

DK.GRAY,TRIM1#

 1
71876-60150E0

ACA31

FAWN,TRIM4#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60140

ACA31

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-60170E0

ACA31

FAWN,TRIM4#

 1
71876-60170B0

ACA31

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42130B2

ACA31

DK.GRAY,TRIM1#

 2
71910-42130E1

ACA31

FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-42030

ACA30,31,ALA30

 1
85820Y - MOTOR ASSY, POWER SEAT
85820-60130

ACA31

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-42160

ACA31

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-42120

ACA31

 1
Common parts
90167-40044
90389-10041
93560-54012
93568-55016
94185-60600
Linked diagrams
7152
8202
8401
8421

ILLUST NO. 2 OF 7(0808- )GCC,GEN ; (0812- )LHD..EUR

Click highlighted areas on diagram

PASSENGER SIDE-W(SIDE AIR BAG)

diagram 71071S 71073S 71100S 71110A 71511S 7152 7152 7152 71551S 71643A 71644 71705 71811D 71861 71873 71874 71875A 71875B 71876A 71876B 71910A 71931 71931 72110A 72125A 72125A 72125A 72125A 72130A 72525A 7270248010 7270258050 7270258050 7270258050 73910A 87510K 87510M 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017906178 9017906178 9017908057 9017908057 9356855016 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-42440B3

ACA31

DK.GRAY,TRIM1#

 1
71071-42440E1

ACA31

FAWN,TRIM4#

 1
71071-42441E1

ACA31

FAWN,TRIM4#

 1
71071-42441B3

ACA31

DK.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-42470E1

ACA31

FAWN,TRIM4#

 1
71073-42470B2

ACA31

DK.GRAY,TRIM1#

 1
71073-42470B4

ACA31

DK.GRAY,TRIM1#

 1
71073-42470E3

ACA31

FAWN,TRIM4#

 1
71100S - SEAT ASSY, FRONT RH
71100-42F10E2

ACA31

FAWN,TRIM4#

 1
71100-42F10B3

ACA31

DK.GRAY,TRIM1#

 1
71100-42F10B4

ACA31

DK.GRAY,TRIM1#

 1
71100-42F10E4

ACA31

FAWN,TRIM4#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42020

ACA30,31,ALA30..LHD

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-42041

ACA31

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-42100

ACA30,31,ALA30

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71771-42010E1

ACA30,31,ALA30..G

FAWN,TRIM4#

 1
71771-42010B2

ACA30,31,ALA30..G

DK.GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-42080E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
71811-42080B0

ACA30,31,ALA30..LHD

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-42070E0

ACA38;ACA33..LHD..X;ALA30..LHD..G;ACA30,31,33..G..(EUR,GEN);ALA30..RHD..G..(DCR,DCRE)

FAWN,TRIM4#

 1
71861-42070B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42030

ACA3#,ALA30,GSA33

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

ACA3#,ALA30,GSA33

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-42050B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71875-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

ACA3#,ALA30,GSA33

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-42050B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

DK.GRAY,TRIM1#

 1
71876-42050E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(EUR,GEN)

FAWN,TRIM4#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

ACA3#,ALA30,GSA33

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-42130B2

ACA31

DK.GRAY,TRIM1#

 2
71910-42130E1

ACA31

FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71930-42020E0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71931-42020B4

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030E3

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W(BUTTON),FAWN,TRIM4#

 2
71930-52030B0

ACA30,31,33,ALA30,GSA33..ARL,EUR

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E0

ACA38;ACA33..LHD..X;ACA30,31,33,ALA30..G..(DCR,DCRE,HTWC)..(EUR,GEN)

W(LOCK)&W/O(BUTTON),FAWN,TRIM4#

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-42010B0

ACA30,31,ALA30..LHD

DK.GRAY,TRIM1#

 1
72525-42010E0

ACA31,38;ACA33..LHD..X;ACA30,33,ALA30..LHD..G..(EUR,GEN)

FAWN,TRIM4#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-42030

ACA30,31,ALA30

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-42160

ACA31

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87510-42120

ACA31

 1
Common parts
72702-48010
72702-58050
90167-40044
90179-06178
90179-08057
93568-55016
94185-60600
Linked diagrams
7152

ILLUST NO. 4 OF 7(0511-1212)G

Click highlighted areas on diagram

FRONT POWER SEAT FRAME ASSY(LH)

diagram 4131548010 4131548010 4415948020 4415948020 71120B 71643A 71644 85822 85822A 85822B 85822C 9011005011 9011005011 9011005012 9011005013 9014880062 9014880062 9017906178 9017906178 9017908057
Part # Description Qty Price
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-42090

ACA31

 1
85822 - MOTOR ASSY, POWER SEAT SLIDE, LH
85801-42020

ACA31

 1
85822A - MOTOR ASSY, POWER SEAT RECLINING, LH
85801-60020

ACA31

 1
85822B - MOTOR ASSY, POWER SEAT TILT, LH
85801-60040

ACA31

 1
85822C - MOTOR ASSY, POWER SEAT LIFTER, LH
85801-60030

ACA31

 1
Common parts
41315-48010
44159-48020
90110-05011
90110-05012
90110-05013
90148-80062
90179-06178
90179-08057

ILLUST NO. 3 OF 7(0511-1212)G

Click highlighted areas on diagram

FRONT POWER SEAT FRAME ASSY(RH)

diagram 4131548010 4131548010 4415948020 4415948020 71110A 71643A 71644 85821H 85821J 85821K 85821L 9011005011 9011005011 9011005012 9011005013 9014880062 9014880062 9017906178 9017906178 9017908057
Part # Description Qty Price
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-42020

ACA30,31,ALA30..LHD

 1
Common parts
41315-48010
44159-48020
90110-05011
90110-05012
90110-05013
90148-80062
90179-06178
90179-08057
