ACA31L-AWPGKW (2007)

Toyota Rav4

Production Jan 2007 - Dec 2008
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0812)ALA30 ; (0511- )ACA38..GEN ; (0511- )ACA30,31,33,GSA33 ; (0812-

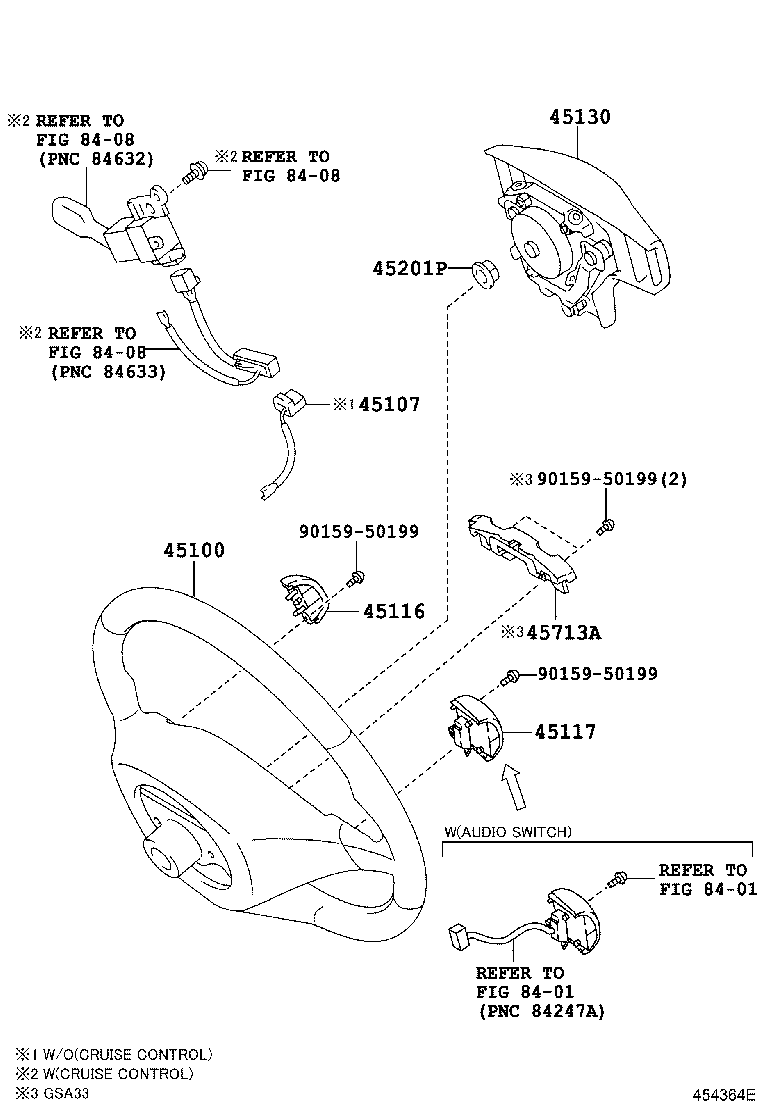

Click highlighted areas on diagram

3-SPOKE,TYPE A

diagram 45100 45107 45116 45117 45130 45201P 45713A 8401 8401 8408 8408 8408 9015950199 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-42141B0

ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

 1
45100-42141B0

ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

 1
45100-42151B0

ACA30,31,ALA30..G

3-SPOKE,LEATHER,CRUISE CONTROL-WITH(ELECTRIC,W/VSC),DK.GRAY,TRIM1#,4#

 1
45100-42151B0

ACA30,31,ALA30..G

3-SPOKE,LEATHER,CRUISE CONTROL-WITH(ELECTRIC,W/VSC),DK.GRAY,TRIM1#,4#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-42010

GSA33;ACA30,31,33,ALA30..G..(ARL,EUR,GCC)

 1
45116-42010

GSA33;ACA30,31,33,ALA30..G..(ARL,EUR,GCC)

 1
45130 - BUTTON ASSY, HORN
45130-42100B0

ACA30,31,33,ALA30..G..(EUR,GCC)

DK.GRAY,TRIM1#,4#

 1
45130-42100B0

ACA30,31,33,ALA30..G..(EUR,GCC)

DK.GRAY,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ACA30,31,ALA30

 1
90179-12071

ACA30,31,ALA30

 1
Common parts
90159-50199
Linked diagrams
8401
8408
