ACA30R-AWMGKW (2008)
Toyota Rav4
(0511- )

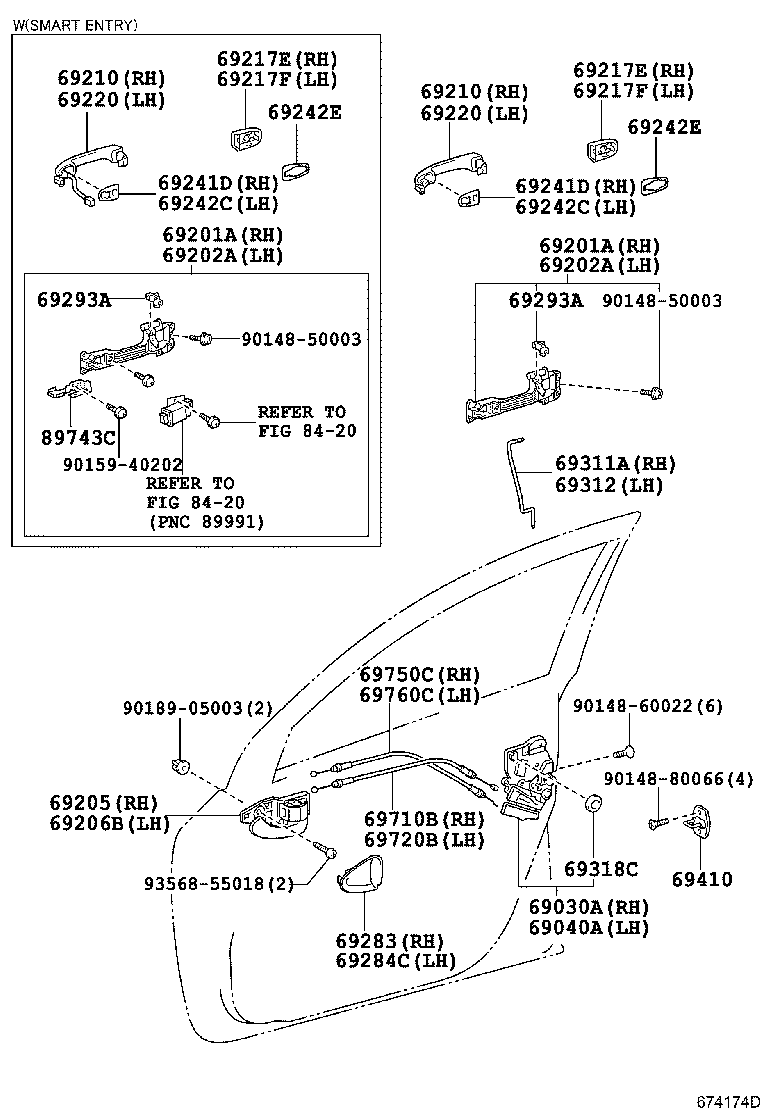

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-53080 |
ACA30,ALA30..RHD |
1 | ||
| 69030-53080 |
ACA30,ALA3#,ZSA3#..RHD |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-53090 |
ACA30,ALA30..RHD |
1 | ||
| 69040-53090 |
ACA30,ALA3#,ZSA3#..RHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-42040 |
ACA30,ALA30..RHD |
1 | ||
| 69201-42050 |
ACA30,ALA30..RHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 69201-42050 |
ACA30,ALA3#,ZSA3#..RHD..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 69201-42040 |
ACA30,ALA3#,ZSA3#..RHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-42040 |
ACA30,ALA30..RHD |
1 | ||
| 69201-42050 |
ACA30,ALA30..RHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 69201-42050 |
ACA30,ALA3#,ZSA3#..RHD..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 69201-42040 |
ACA30,ALA3#,ZSA3#..RHD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 69202-52020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69202-52040 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 69202-52020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69202-52040 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-33090B0 |
ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 69205-33090B0 |
ACA30,33,ALA3#,ZSA3#..G..EUR DK.GRAY,TRIM1#,4# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-33100B0 |
ACA30,33,ALA3#,ZSA3#..G..EUR DK.GRAY,TRIM1#,4# |
1 | ||
| 69206-33100B0 |
ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12320C1 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BLACK,202 |
1 | ||
| 69210-12320B3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320J8 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),SILVER ME.,1F7 |
1 | ||
| 69210-12320D6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),RED M.M.,3R3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITH(SMART KEY & CRUISE CONTROL),SUPER WHITE 2,040 |
1 | ||
| 69210-12320G5 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITH(SMART KEY & CRUISE CONTROL),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220A0 |
ACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC SUPER WHITE 2,040 |
1 | ||
| 69210-12320G6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),LT.GREEN ME.,6T6 |
1 | ||
| 69210-12320E3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BEIGE ME.,4R4 |
1 | ||
| 69211-12220P2 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY MC.,1E0 |
1 | ||
| 69211-12220G4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 69211-12220C1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC BLACK,202 |
1 | ||
| 69211-12220R9 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320K4 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69211-12220P6 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 69211-12220Q0 |
ACA33,GSA33..ARL,GCC;ACA30,33,38,ALA30..G..(EUR,GEN) DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220R8 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220E4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 69211-12220X4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 69210-12320G5 |
ACA30,33,ALA3#,ZSA3#..G..EUR..ATYPE WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GREEN MC.,6T3 |
1 | ||
| 69210-12320J9 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320D5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. RED M.M.,3Q3 |
1 | ||
| 69211-12220X2 |
ACA30,33,ALA3#,ZSA3#..EUR DK. RED M.M.,3Q3 |
1 | ||
| 69210-12320B6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 69210-12320C1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BLACK,202 |
1 | ||
| 69210-12320J9 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320B7 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 69210-12320D6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),RED M.M.,3R3 |
1 | ||
| 69210-12320L1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BRONZE M.M.,4T3 |
1 | ||
| 69210-12320A5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 69210-12320L2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 69211-1222003 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69210-12320P2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 69211-12220X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69211-12220P9 |
ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC DK. STEEL MC.,1H2 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12320C1 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BLACK,202 |
1 | ||
| 69210-12320B3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320J8 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B7 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),SILVER ME.,1F7 |
1 | ||
| 69210-12320D6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),RED M.M.,3R3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITH(SMART KEY & CRUISE CONTROL),SUPER WHITE 2,040 |
1 | ||
| 69210-12320G5 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITH(SMART KEY & CRUISE CONTROL),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220A0 |
ACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC SUPER WHITE 2,040 |
1 | ||
| 69210-12320G6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),LT.GREEN ME.,6T6 |
1 | ||
| 69210-12320E3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BEIGE ME.,4R4 |
1 | ||
| 69211-12220P2 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY MC.,1E0 |
1 | ||
| 69211-12220G4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 69211-12220C1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC BLACK,202 |
1 | ||
| 69211-12220R9 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320K4 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69211-12220P6 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 69211-12220Q0 |
ACA33,GSA33..ARL,GCC;ACA30,33,38,ALA30..G..(EUR,GEN) DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220R8 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220E4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 69211-12220X4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 69210-12320G5 |
ACA30,33,ALA3#,ZSA3#..G..EUR..ATYPE WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GREEN MC.,6T3 |
1 | ||
| 69210-12320J9 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320D5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. RED M.M.,3Q3 |
1 | ||
| 69211-12220X2 |
ACA30,33,ALA3#,ZSA3#..EUR DK. RED M.M.,3Q3 |
1 | ||
| 69210-12320B6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 69210-12320C1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BLACK,202 |
1 | ||
| 69210-12320J9 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320B7 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 69210-12320D6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),RED M.M.,3R3 |
1 | ||
| 69210-12320L1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BRONZE M.M.,4T3 |
1 | ||
| 69210-12320A5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 69210-12320L2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 69211-1222003 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69210-12320P2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 69211-12220X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69211-12220P9 |
ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC DK. STEEL MC.,1H2 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-42020C0 |
ACA30,33,ALA30,GSA33..RHD BLACK,202 |
1 | ||
| 69217-42020Q1 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G DK.GREEN MC.,6T3 |
1 | ||
| 69217-42020A3 |
ACA33,GSA33..X..ARL;ACA30,ALA30..RHD..(DCR,DCRE,HTWC) SUPER WHITE 2,040 |
1 | ||
| 69217-42020X4 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G RED M.M.,3R3 |
1 | ||
| 69217-42020G5 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G LT.GREEN ME.,6T6 |
1 | ||
| 69217-42020V0 |
ACA30,33,ALA30,GSA33..RHD GRAYISH BLUE ME.,8R3 |
1 | ||
| 69217-42020R9 |
ACA30,33,ALA30,GSA33..RHD DK.BLUE MC.,8S6 |
1 | ||
| 69217-42020X2 |
ACA30,ALA3#,ZSA3#..RHD DK. RED M.M.,3Q3 |
1 | ||
| 69217-42020P6 |
ACA30,33,ALA30,GSA33..RHD SILVER ME.,1F7 |
1 | ||
| 69217-42020E5 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G BEIGE ME.,4R4 |
1 | ||
| 69217-42020P2 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY MC.,1E0 |
1 | ||
| 69217-42020K5 |
ACA30,ALA3#,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69217-42020P9 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD DK. STEEL MC.,1H2 |
1 | ||
| 69217-4202004 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69217-42020X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-42020C0 |
ACA30,33,ALA30,GSA33..RHD BLACK,202 |
1 | ||
| 69217-42020Q1 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G DK.GREEN MC.,6T3 |
1 | ||
| 69217-42020A3 |
ACA33,GSA33..X..ARL;ACA30,ALA30..RHD..(DCR,DCRE,HTWC) SUPER WHITE 2,040 |
1 | ||
| 69217-42020X4 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G RED M.M.,3R3 |
1 | ||
| 69217-42020G5 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G LT.GREEN ME.,6T6 |
1 | ||
| 69217-42020V0 |
ACA30,33,ALA30,GSA33..RHD GRAYISH BLUE ME.,8R3 |
1 | ||
| 69217-42020R9 |
ACA30,33,ALA30,GSA33..RHD DK.BLUE MC.,8S6 |
1 | ||
| 69217-42020X2 |
ACA30,ALA3#,ZSA3#..RHD DK. RED M.M.,3Q3 |
1 | ||
| 69217-42020P6 |
ACA30,33,ALA30,GSA33..RHD SILVER ME.,1F7 |
1 | ||
| 69217-42020E5 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G BEIGE ME.,4R4 |
1 | ||
| 69217-42020P2 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY MC.,1E0 |
1 | ||
| 69217-42020K5 |
ACA30,ALA3#,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69217-42020P9 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD DK. STEEL MC.,1H2 |
1 | ||
| 69217-4202004 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69217-42020X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-12040B8 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY MC.,1E0 |
1 | ||
| 69217-12040C1 |
ACA30,33,ALA30,GSA33..RHD BLACK,202 |
1 | ||
| 69217-12040E7 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G BEIGE ME.,4R4 |
1 | ||
| 69217-12040G9 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G LT.GREEN ME.,6T6 |
1 | ||
| 69217-12040R5 |
ACA30,33,ALA30,GSA33..RHD DK.BLUE MC.,8S6 |
1 | ||
| 69217-12040G8 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G DK.GREEN MC.,6T3 |
1 | ||
| 69217-12040D9 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G RED M.M.,3R3 |
1 | ||
| 69217-12040P1 |
ACA30,33,ALA30,GSA33..RHD SILVER ME.,1F7 |
1 | ||
| 69217-12040A0 |
ACA33,GSA33..X..ARL;ACA30,ALA30..RHD..(DCR,DCRE,HTWC) SUPER WHITE 2,040 |
1 | ||
| 69217-12040R6 |
ACA30,33,ALA30,GSA33..RHD GRAYISH BLUE ME.,8R3 |
1 | ||
| 69217-12040K5 |
ACA30,ALA3#,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69217-12040D7 |
ACA30,ALA3#,ZSA3#..RHD DK. RED M.M.,3Q3 |
1 | ||
| 69217-12040A9 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69217-12040P5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD DK. STEEL MC.,1H2 |
1 | ||
| 69217-12040D9 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-12040B8 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY MC.,1E0 |
1 | ||
| 69217-12040C1 |
ACA30,33,ALA30,GSA33..RHD BLACK,202 |
1 | ||
| 69217-12040E7 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G BEIGE ME.,4R4 |
1 | ||
| 69217-12040G9 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G LT.GREEN ME.,6T6 |
1 | ||
| 69217-12040R5 |
ACA30,33,ALA30,GSA33..RHD DK.BLUE MC.,8S6 |
1 | ||
| 69217-12040G8 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G DK.GREEN MC.,6T3 |
1 | ||
| 69217-12040D9 |
ACA33,GSA33..ARL;ACA30,ALA30..RHD..G RED M.M.,3R3 |
1 | ||
| 69217-12040P1 |
ACA30,33,ALA30,GSA33..RHD SILVER ME.,1F7 |
1 | ||
| 69217-12040A0 |
ACA33,GSA33..X..ARL;ACA30,ALA30..RHD..(DCR,DCRE,HTWC) SUPER WHITE 2,040 |
1 | ||
| 69217-12040R6 |
ACA30,33,ALA30,GSA33..RHD GRAYISH BLUE ME.,8R3 |
1 | ||
| 69217-12040K5 |
ACA30,ALA3#,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69217-12040D7 |
ACA30,ALA3#,ZSA3#..RHD DK. RED M.M.,3Q3 |
1 | ||
| 69217-12040A9 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69217-12040P5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD DK. STEEL MC.,1H2 |
1 | ||
| 69217-12040D9 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320B3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320E3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BEIGE ME.,4R4 |
1 | ||
| 69210-12320D6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),RED M.M.,3R3 |
1 | ||
| 69210-12320B7 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),SILVER ME.,1F7 |
1 | ||
| 69210-12320J9 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITH(SMART KEY & CRUISE CONTROL),SUPER WHITE 2,040 |
1 | ||
| 69210-12320G6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),LT.GREEN ME.,6T6 |
1 | ||
| 69211-12220P2 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320C1 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BLACK,202 |
1 | ||
| 69210-12320G5 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITH(SMART KEY & CRUISE CONTROL),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220X4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 69211-12220P6 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 69211-12220C1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC BLACK,202 |
1 | ||
| 69211-12220G4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 69210-12320J8 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220A0 |
ACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC SUPER WHITE 2,040 |
1 | ||
| 69211-12220E4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 69211-12220Q0 |
ACA33,GSA33..ARL,GCC;ACA30,33,38,ALA30..G..(EUR,GEN) DK.GREEN MC.,6T3 |
1 | ||
| 69210-12320G5 |
ACA30,33,ALA3#,ZSA3#..G..EUR..ATYPE WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220R8 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220X2 |
ACA30,33,ALA3#,ZSA3#..EUR DK. RED M.M.,3Q3 |
1 | ||
| 69211-12220R9 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320K4 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-12320D5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. RED M.M.,3Q3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 69210-12320B7 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 69210-12320J9 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320C1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BLACK,202 |
1 | ||
| 69210-12320L1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BRONZE M.M.,4T3 |
1 | ||
| 69210-12320P2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 69210-12320B6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 69210-12320D6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),RED M.M.,3R3 |
1 | ||
| 69211-12220X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69210-12320L2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 69210-12320A5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220P9 |
ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC DK. STEEL MC.,1H2 |
1 | ||
| 69211-1222003 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320B3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320E3 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BEIGE ME.,4R4 |
1 | ||
| 69210-12320D6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),RED M.M.,3R3 |
1 | ||
| 69210-12320B7 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),SILVER ME.,1F7 |
1 | ||
| 69210-12320J9 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITH(SMART KEY & CRUISE CONTROL),SUPER WHITE 2,040 |
1 | ||
| 69210-12320G6 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),LT.GREEN ME.,6T6 |
1 | ||
| 69211-12220P2 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY MC.,1E0 |
1 | ||
| 69210-12320C1 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),BLACK,202 |
1 | ||
| 69210-12320G5 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITH(SMART KEY & CRUISE CONTROL),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220X4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) RED M.M.,3R3 |
1 | ||
| 69211-12220P6 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC SILVER ME.,1F7 |
1 | ||
| 69211-12220C1 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC BLACK,202 |
1 | ||
| 69211-12220G4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) LT.GREEN ME.,6T6 |
1 | ||
| 69210-12320J8 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220A0 |
ACA33,GSA33..X..(ARL,GCC);ACA30,ALA30..DCR,DCRE,HTWC SUPER WHITE 2,040 |
1 | ||
| 69211-12220E4 |
ACA33,GSA33..ARL,GCC;ACA3#,ALA30..G..(EUR,GEN) BEIGE ME.,4R4 |
1 | ||
| 69211-12220Q0 |
ACA33,GSA33..ARL,GCC;ACA30,33,38,ALA30..G..(EUR,GEN) DK.GREEN MC.,6T3 |
1 | ||
| 69210-12320G5 |
ACA30,33,ALA3#,ZSA3#..G..EUR..ATYPE WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GREEN MC.,6T3 |
1 | ||
| 69211-12220R8 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC DK.BLUE MC.,8S6 |
1 | ||
| 69211-12220X2 |
ACA30,33,ALA3#,ZSA3#..EUR DK. RED M.M.,3Q3 |
1 | ||
| 69211-12220R9 |
ACA33,38..G..GEN;ACA30,31,33,ALA30,GSA33..ARL,EUR,GCC GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320K4 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.VIOLET M.M.,9AF |
1 | ||
| 69210-12320D5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. RED M.M.,3Q3 |
1 | ||
| 69210-12320A0 |
ACA30,ALA3#,ZSA3#..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SUPER WHITE 2,040 |
1 | ||
| 69210-12320B7 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SILVER ME.,1F7 |
1 | ||
| 69210-12320J9 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAYISH BLUE ME.,8R3 |
1 | ||
| 69210-12320C1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BLACK,202 |
1 | ||
| 69210-12320L1 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BRONZE M.M.,4T3 |
1 | ||
| 69210-12320P2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK. STEEL MC.,1H2 |
1 | ||
| 69210-12320B6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAY ME.,1G3 |
1 | ||
| 69210-12320D6 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),RED M.M.,3R3 |
1 | ||
| 69211-12220X4 |
ACA30,ALA3#,ZSA3#..RHD RED M.M.,3R3 |
1 | ||
| 69210-12320L2 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),BEIGE ME.,4T8 |
1 | ||
| 69210-12320A5 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),WHITE PEARL CS.,070 |
1 | ||
| 69211-12220P9 |
ACA33,38..G..GEN;ACA3#,ALA3#,GSA33,ZSA3#..ARL,EUR,GCC DK. STEEL MC.,1H2 |
1 | ||
| 69211-1222003 |
ACA30,ALA30..RHD..G..ATYPE WHITE PEARL CS.,070 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69241-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69241-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
ACA3#,ALA30,GSA33 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
ACA3#,ALA30,GSA33 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-33040B0 |
ACA33,38;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-33040B0 |
ACA33,38;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
ACA33..G..GCC;ACA30,31,ALA30 RH |
1 | ||
| 69293-12040 |
ACA33..G..GCC;ACA30,31,ALA30 LH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
ACA33..G..GCC;ACA30,31,ALA30 RH |
1 | ||
| 69293-12040 |
ACA33..G..GCC;ACA30,31,ALA30 LH |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-42030 |
ACA3#,ALA30 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-42030 |
ACA3#,ALA30 |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-47020 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),LH |
1 | ||
| 89743-47010 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),RH |
1 | ||
| 89743-47010 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),RH |
1 | ||
| 89743-47020 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL),LH |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90189-05003 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
