ACA30L-AWPGKW (2005)

Toyota Rav4

Production Nov 2005 - Dec 2008
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

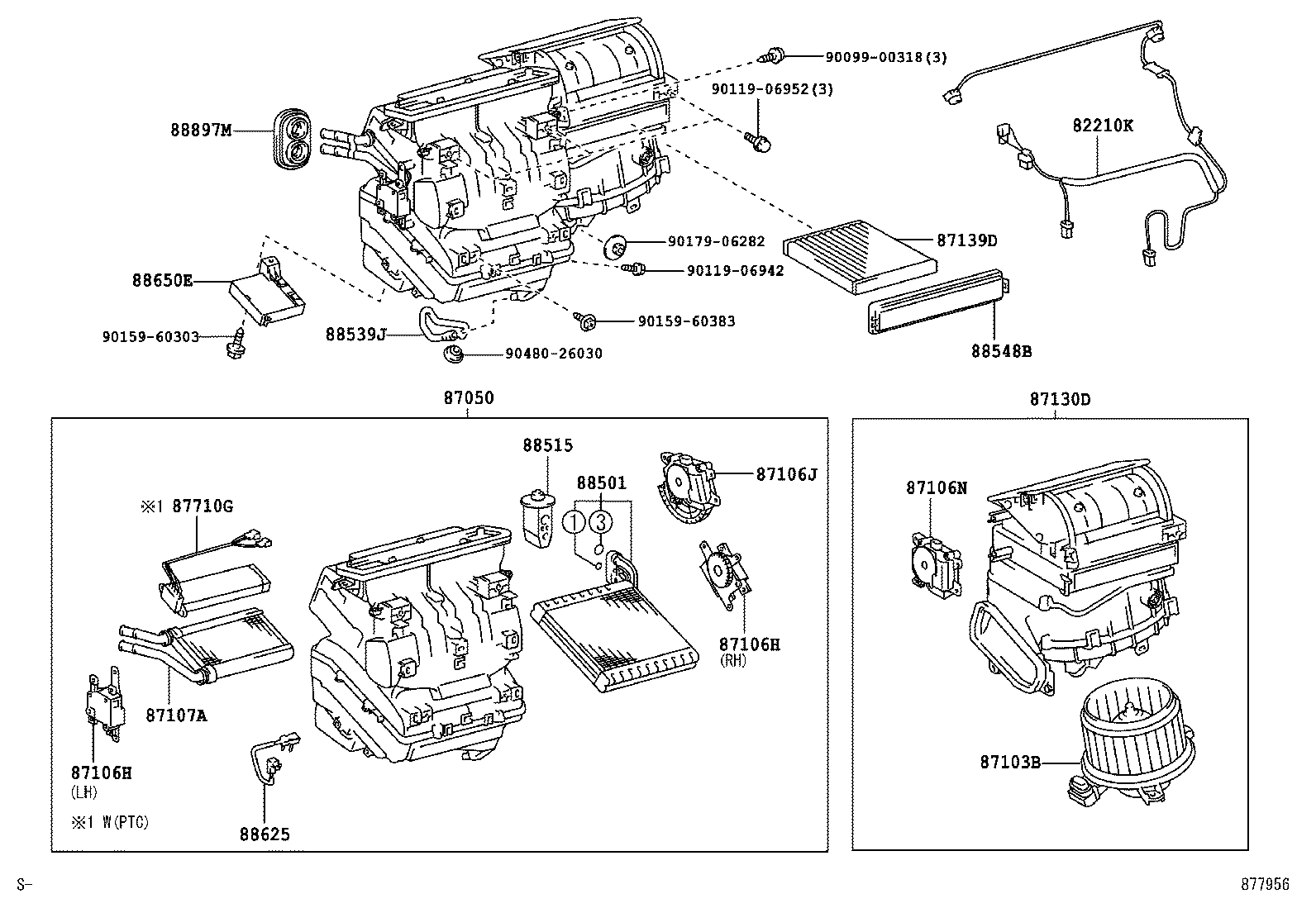

ILLUST NO. 1 OF 2(0511- )LHD..G

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 82210K 87050 87103B 87106H 87106H 87106J 87106N 87107A 87130D 87139D 87710G 88501 88515 88539J 88548B 88625 88650E 88897M 9009900318 9011906942 9011906952 9015960303 9015960383 9017906282 9048026030
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-42010

ACA3#,ALA30..LHD..G

 1
82212-42010

ACA30,ALA30..LHD..G

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
82212-42010

ACA30,ALA30..LHD..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

 1
82212-12030

ACA30,ALA30..LHD..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

 1
82212-42010

ACA30,ALA30..LHD..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

 1
82212-12030

ACA30,ALA30..LHD..G..(DCR,DCRL,HTWC)

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
82212-12030

ACA3#,ALA30..LHD..G

 1
82212-12030

ACA30,ALA30..LHD..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42380

ACA3#..LHD..G

 1
87050-42360

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87050-42400

ACA30..LHD

AIR CONDITIONER-WITHOUT

 1
87050-12390

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87050-12430

ACA30..LHD

AIR CONDITIONER-WITHOUT

 1
87050-12410

ACA30,31,33..LHD..G..(EUR,GCC)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42100

ACA3#,ALA30..LHD..G

 1
87103-42090

ACA30,ALA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87103-42090

ACA30,ALA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87103-42101

ACA30,31,33,ALA30..LHD..G..(EUR,GCC)

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-42080

ACA3#..G

RH

 1
87106-42090

ACA30,31,33,ALA30..G..(EUR,GCC)

LH

 1
87106-12170

ACA30,31,33,ALA30..G..(EUR,GCC)

RH

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-42080

ACA3#..G

RH

 1
87106-42090

ACA30,31,33,ALA30..G..(EUR,GCC)

LH

 1
87106-12170

ACA30,31,33,ALA30..G..(EUR,GCC)

RH

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-42100

ACA30,31,33,ALA30..G..(EUR,GCC)

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42130

ACA30,ALA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87106-42130

ACA30,ALA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87106-42140

ACA30,31,33,ALA30..LHD..G..(EUR,GCC)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170

ACA33..G..GCC;ACA30,31,ALA30

 1
87130D - BLOWER ASSY
87130-42220

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-42220

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-12550

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-42240

ACA3#..LHD..G

 1
87130-12550

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-12570

ACA3#..LHD..G

 1
87130-12551

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-12551

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-12571

ACA30,31,33..LHD..G..(EUR,GCC)

 1
87139D - ELEMENT, AIR REFINER
87139-52020

ACA3#,ALA30,GSA33

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26211

ACA33..G..GCC;ACA30,31,ALA30

 1
88501-26210

ACA3#,ALA30,GSA33

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

ACA3#,ALA30

 1
88515-42090

ACA3#,ALA30,GSA33

 1
88539J - HOSE, DRAIN COOLER
88539-42060

ACA33..G..GCC;ACA30,31,ALA30..LHD

 1
88548B - CASE, AIR FILTER
88548-42020

ACA33..G..GCC;ACA30,31,ALA30..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

ACA33..G..GCC;ACA30,31,ALA30

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42240

ACA30,31,33..G..(EUR,GCC)

 1
88650-42240

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
88650-42180

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

 1
88650-42180

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-42010

ACA33..G..GCC;ACA30,31,ALA30

 1
Common parts
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030

ILLUST NO. 2 OF 2(0511- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

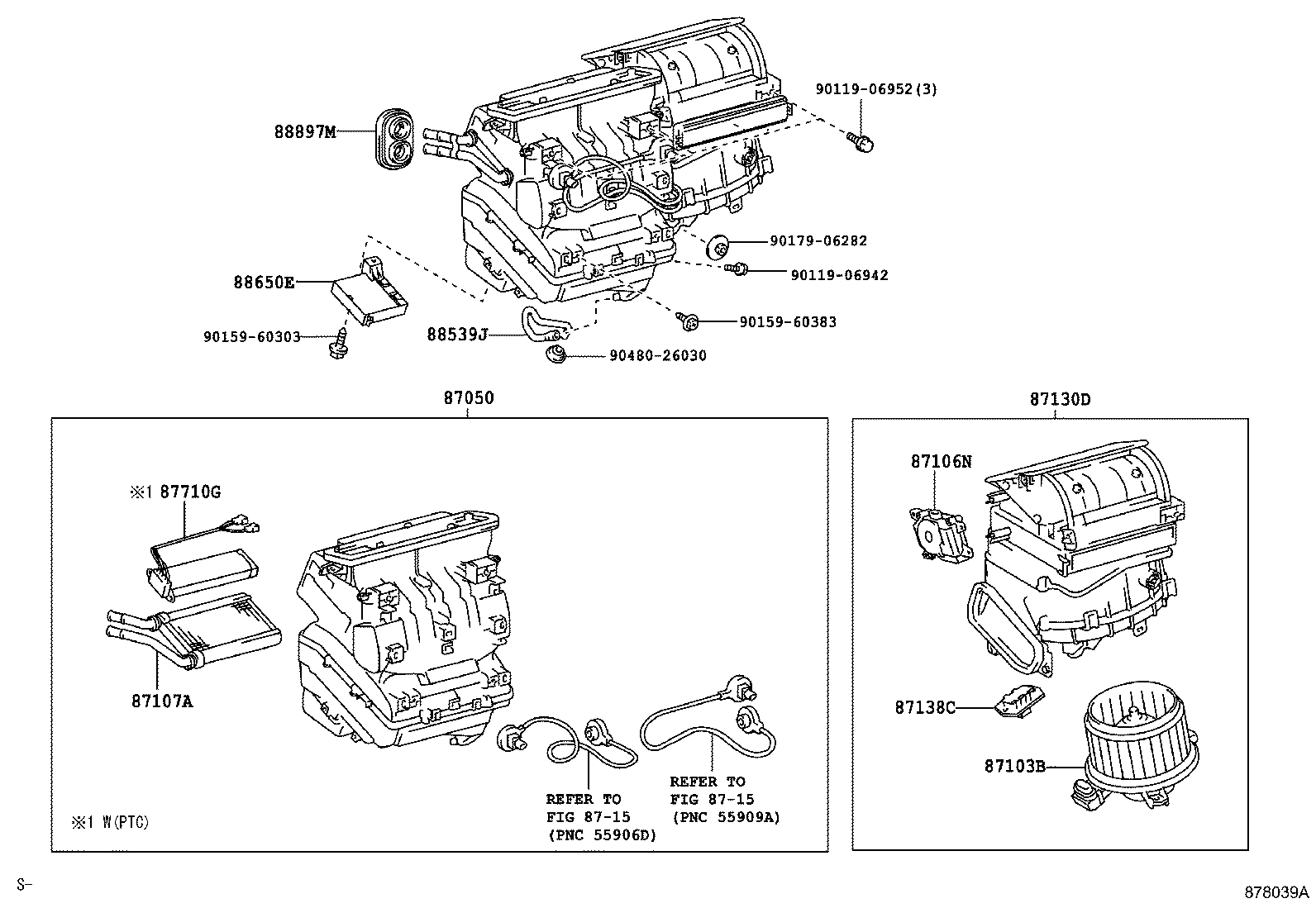

ILLUST NO. 1 OF 2(0511- )ACA30,ALA3#,ZSA3#..LHD

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 87130D 87138C 8715 8715 87710G 88539J 88650E 88897M 9011906942 9011906952 9015960303 9015960383 9017906282 9048026030
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42380

ACA3#..LHD..G

 1
87050-42360

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87050-42400

ACA30..LHD

AIR CONDITIONER-WITHOUT

 1
87050-12390

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87050-12430

ACA30..LHD

AIR CONDITIONER-WITHOUT

 1
87050-12410

ACA30,31,33..LHD..G..(EUR,GCC)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42100

ACA3#,ALA30..LHD..G

 1
87103-42090

ACA30,ALA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87103-42090

ACA30,ALA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87103-42101

ACA30,31,33,ALA30..LHD..G..(EUR,GCC)

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42130

ACA30,ALA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87106-42130

ACA30,ALA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87106-42140

ACA30,31,33,ALA30..LHD..G..(EUR,GCC)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170

ACA33..G..GCC;ACA30,31,ALA30

 1
87130D - BLOWER ASSY
87130-42220

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-42220

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-12550

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-42240

ACA3#..LHD..G

 1
87130-12550

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-12570

ACA3#..LHD..G

 1
87130-12551

ACA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87130-12551

ACA30..LHD..G

AIR CONDITIONER-MANUAL

 1
87130-12571

ACA30,31,33..LHD..G..(EUR,GCC)

 1
87138C - RESISTOR, BLOWER
87138-26160

ACA30,ALA30..LHD..G

AIR CONDITIONER-WITHOUT

 1
87138-26160

ACA30,ALA30..LHD..G

AIR CONDITIONER-MANUAL

 1
88539J - HOSE, DRAIN COOLER
88539-42060

ACA33..G..GCC;ACA30,31,ALA30..LHD

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42240

ACA30,31,33..G..(EUR,GCC)

 1
88650-42240

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
88650-42180

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL

 1
88650-42180

ACA30..G

WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-42010

ACA33..G..GCC;ACA30,31,ALA30

 1
Common parts
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
Linked diagrams
8715
