ACA21R-AWPNKQ (2000)

Toyota Rav4

Production May 2000 - Jul 2003
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )RHD

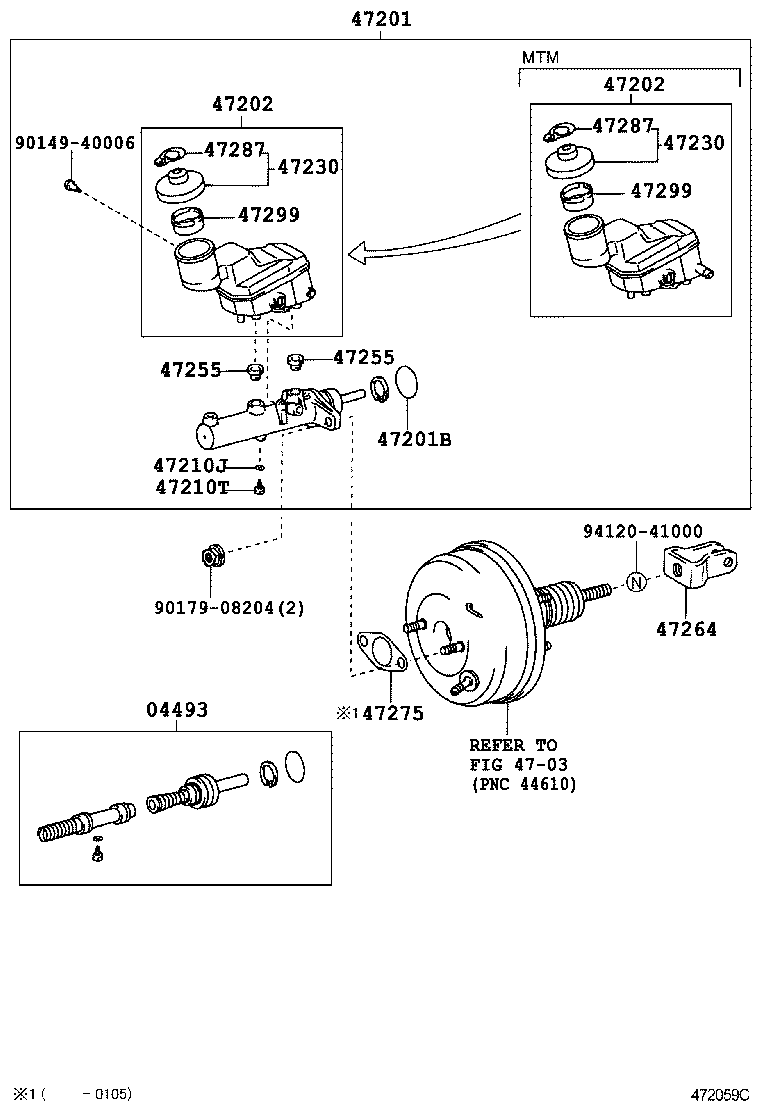

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47202 47210J 47210T 47230 47230 47255 47255 47264 47275 47287 47287 47299 47299 9014940006 9017908204 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-42050

ACA2#..ARL,GCC,GEN

 1
04493-42050

ACA2#..RHD..(ARL,GEN)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-42180

ACA2#..RHD..ATM..(ARL,GEN)

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

ACA2#,CLA2#,ZCA2#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-42070

ACA2#..ATM

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-42070

ACA2#..ATM

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

ACA2#,CLA2#,ZCA2#

 1
90029-43001

ACA2#,CLA2#,ZCA2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

ACA2#,CLA2#,ZCA2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ACA2#,CLA2#,ZCA2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ACA2#,CLA2#,ZCA2#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACA2#,CLA2#,ZCA2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACA2#,CLA2#,ZCA2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-42010

ACA2#,CLA2#,ZCA2#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

ACA2#,ZCA2#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ACA2#,CLA2#,ZCA2#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ACA2#,CLA2#,ZCA2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

ACA2#,CLA2#,ZCA2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

ACA2#,CLA2#,ZCA2#

 1
Common parts
90149-40006
90179-08204
94120-41000
Linked diagrams
4703
