ACA21R-AWMNKQ (2000)

Toyota Rav4

Production May 2000 - Jul 2003
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ACA2#..RHD

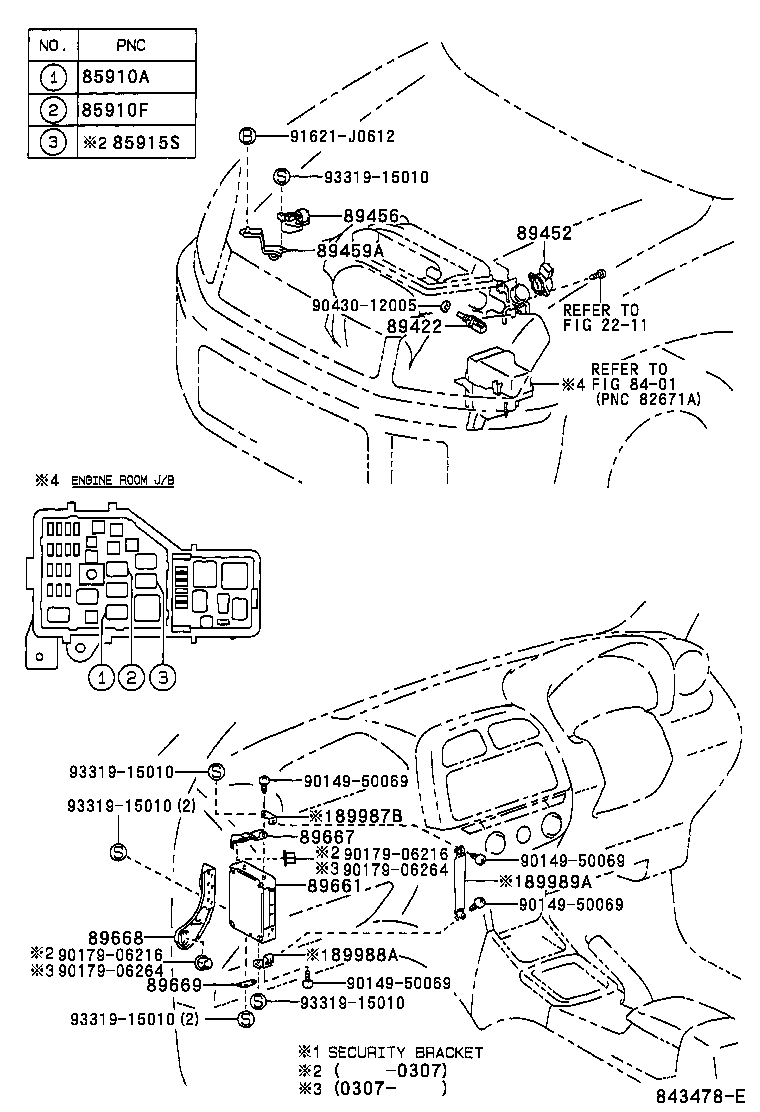

Click highlighted areas on diagram

diagram 2211 8401 85910A 85910F 85915S 89422 89452 89456 89459A 89661 89667 89668 89669 89987B 89988A 89989A 9014950069 9014950069 9014950069 9014950069 9017906216 9017906216 9017906264 9017906264 9043012005 91621J0612 9331915010 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

ACA2#,ZCA2#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

ACA2#,ZCA2#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02012

ACA2#..ARL,EUR

 1
90987-02012

ACA2#..ARL,EUR,GCC

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ACA2#,ZCA2#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

ACA2#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-42690

ACA2#..MTM..ARL

 1
89661-42691

ACA2#..MTM..ARL

 1
89661-42692

ACA2#..MTM..ARL

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-42030

ACA2#,ZCA2#..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42030

ACA2#,ZCA2#..RHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-42040

ACA2#,ZCA2#

 1
Common parts
90149-50069
90179-06216
90179-06264
90430-12005
91621-J0612
93319-15010
Linked diagrams
2211
8401
