ACA21L-AWMNKW (2000)
Toyota Rav4

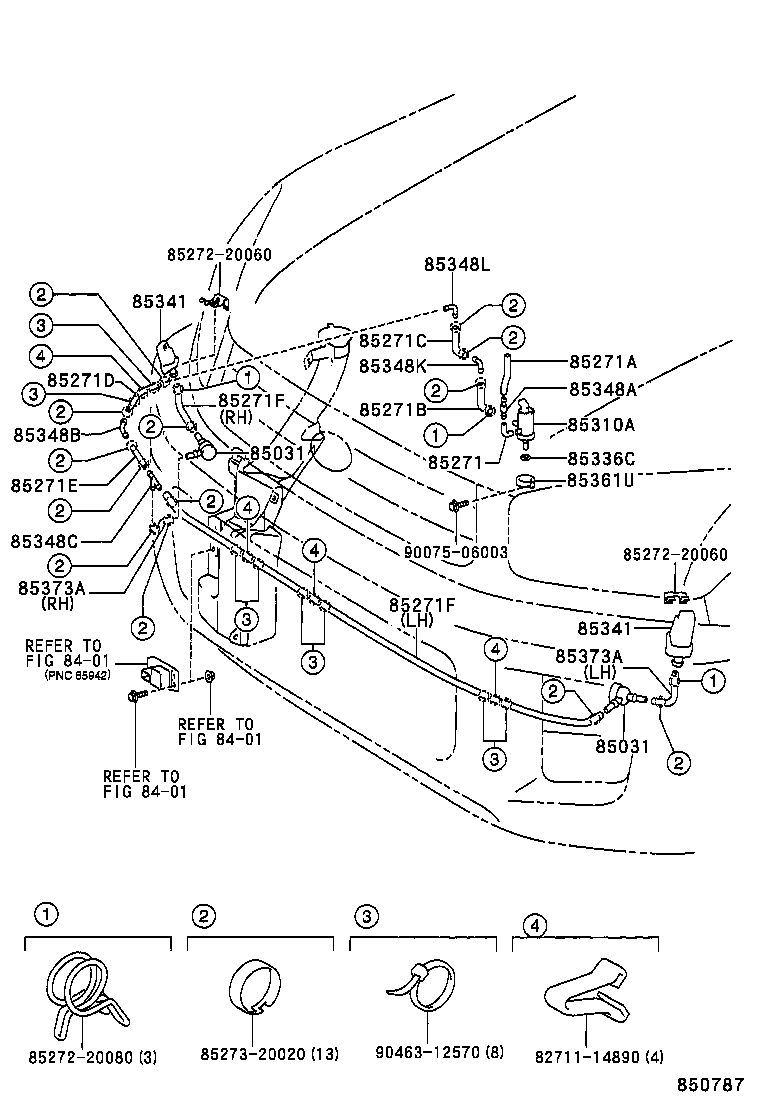

(0005-0307)ACA2#,ZCA2#..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85299-33020 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85299-33020 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85336-12230 |
ACA20,21,ZCA2#..LHD..EUR L=15 |
1 | ||
| 85336-12230 |
ACA2#,ZCA2#..LHD..EUR L=15 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15014 |
ACA2#,ZCA2#..LHD..EUR L=180 |
1 | ||
| 90075-15031 |
ACA20,21,ZCA2#..LHD..EUR L=580 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85375-32011 |
ACA2#,ZCA2#..LHD..EUR L=35 |
1 | ||
| 85343-95700 |
ACA20,21,ZCA2#..LHD..EUR L=135 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85375-89133 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85375-30030 |
ACA20,21,ZCA2#..LHD..EUR L=120 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85375-50020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 90445-14046 |
ACA20,21,ZCA2#..LHD..EUR L=140 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90445-14048 |
ACA2#,ZCA2#..LHD..EUR L=150 |
1 | ||
| 90075-15030 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 85271-14130 |
ACA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 85275-42010 |
ACA20,21,ZCA2#..LHD..EUR L=45 |
1 | ||
| 85375-32011 |
ACA2#,ZCA2#..LHD..EUR L=35,RH |
1 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 85271-14130 |
ACA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 85275-42010 |
ACA20,21,ZCA2#..LHD..EUR L=45 |
1 | ||
| 85375-32011 |
ACA2#,ZCA2#..LHD..EUR L=35,RH |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-30020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85280-50020 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85336-10010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-42040 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85044-42030 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-42040 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85044-42030 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85349-89122 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85349-89122 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-30010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85279-60070 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-33020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85352-12010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85379-22080 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85379-22080 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85379-22080 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85361U - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-33020 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85361-33020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32180 |
ACA2#,ZCA2#..LHD..EUR L=70,RH |
1 | ||
| 90075-15007 |
ACA2#,ZCA2#..LHD..EUR L=52,LH |
1 | ||
| 90075-15007 |
ACA20,21,ZCA2#..LHD..EUR L=52 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32180 |
ACA2#,ZCA2#..LHD..EUR L=70,RH |
1 | ||
| 90075-15007 |
ACA2#,ZCA2#..LHD..EUR L=52,LH |
1 | ||
| 90075-15007 |
ACA20,21,ZCA2#..LHD..EUR L=52 |
2 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 85272-20060 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90075-06003 | ||||
| 90463-12570 | ||||
| Linked diagrams | ||||
| 8401 | ||||

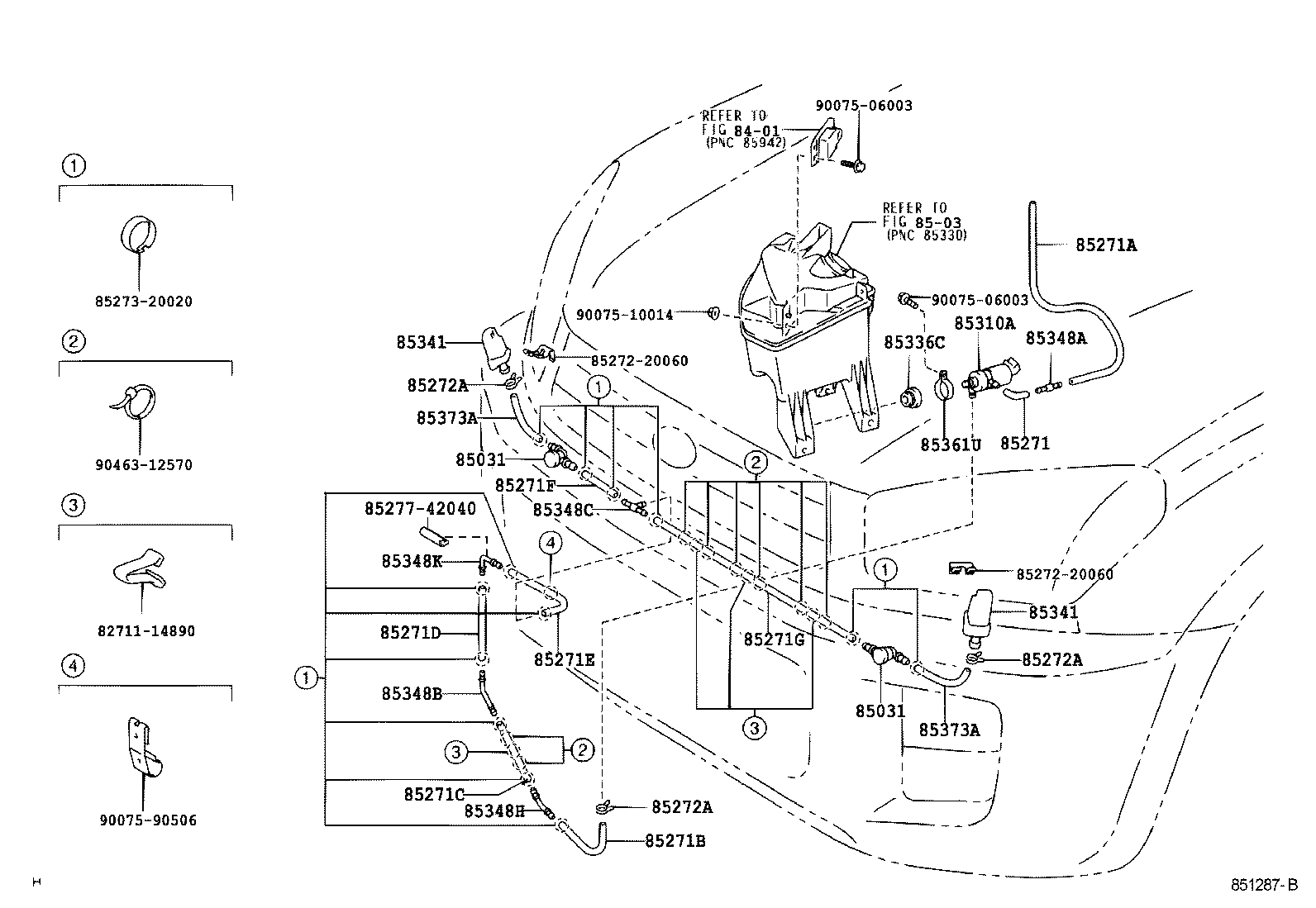

(0307- )ACA20,21,CLA21,ZCA2#..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85299-33020 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85299-33020 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85336-12230 |
ACA20,21,ZCA2#..LHD..EUR L=15 |
1 | ||
| 85336-12230 |
ACA2#,ZCA2#..LHD..EUR L=15 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15014 |
ACA2#,ZCA2#..LHD..EUR L=180 |
1 | ||
| 90075-15031 |
ACA20,21,ZCA2#..LHD..EUR L=580 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85375-32011 |
ACA2#,ZCA2#..LHD..EUR L=35 |
1 | ||
| 85343-95700 |
ACA20,21,ZCA2#..LHD..EUR L=135 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85375-89133 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85375-30030 |
ACA20,21,ZCA2#..LHD..EUR L=120 |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85375-50020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 90445-14046 |
ACA20,21,ZCA2#..LHD..EUR L=140 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90445-14048 |
ACA2#,ZCA2#..LHD..EUR L=150 |
1 | ||
| 90075-15030 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 85271-14130 |
ACA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 85275-42010 |
ACA20,21,ZCA2#..LHD..EUR L=45 |
1 | ||
| 85375-32011 |
ACA2#,ZCA2#..LHD..EUR L=35,RH |
1 | ||
| 85271G - HOSE, HEAD LAMP | ||||
| 90445-14072 |
ACA20,21,ZCA2#..LHD..EUR *H,L=1150 |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-20080 |
ACA20,21,ZCA2#..LHD..EUR |
3 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-20080 |
ACA20,21,ZCA2#..LHD..EUR |
3 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-20080 |
ACA20,21,ZCA2#..LHD..EUR |
3 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-30020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85280-50020 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85336-10010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-42040 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85044-42030 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-42040 |
ACA20,21,ZCA2#..LHD..EUR |
2 | ||
| 85044-42030 |
ACA2#,ZCA2#..LHD..EUR |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85349-89122 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85349-89122 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-30010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85279-60070 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-33020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85352-12010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85279-42040 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85379-22080 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85379-22080 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85361U - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-33020 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85361-33020 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32180 |
ACA2#,ZCA2#..LHD..EUR L=70,RH |
1 | ||
| 90075-15007 |
ACA2#,ZCA2#..LHD..EUR L=52,LH |
1 | ||
| 90075-15007 |
ACA20,21,ZCA2#..LHD..EUR L=52 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85375-32180 |
ACA2#,ZCA2#..LHD..EUR L=70,RH |
1 | ||
| 90075-15007 |
ACA2#,ZCA2#..LHD..EUR L=52,LH |
1 | ||
| 90075-15007 |
ACA20,21,ZCA2#..LHD..EUR L=52 |
2 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 85272-20060 | ||||
| 85273-20020 | ||||
| 85277-42040 | ||||
| 90075-06003 | ||||
| 90075-10014 | ||||
| 90075-90506 | ||||
| 90463-12570 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
