ACA21L-AWMNK (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

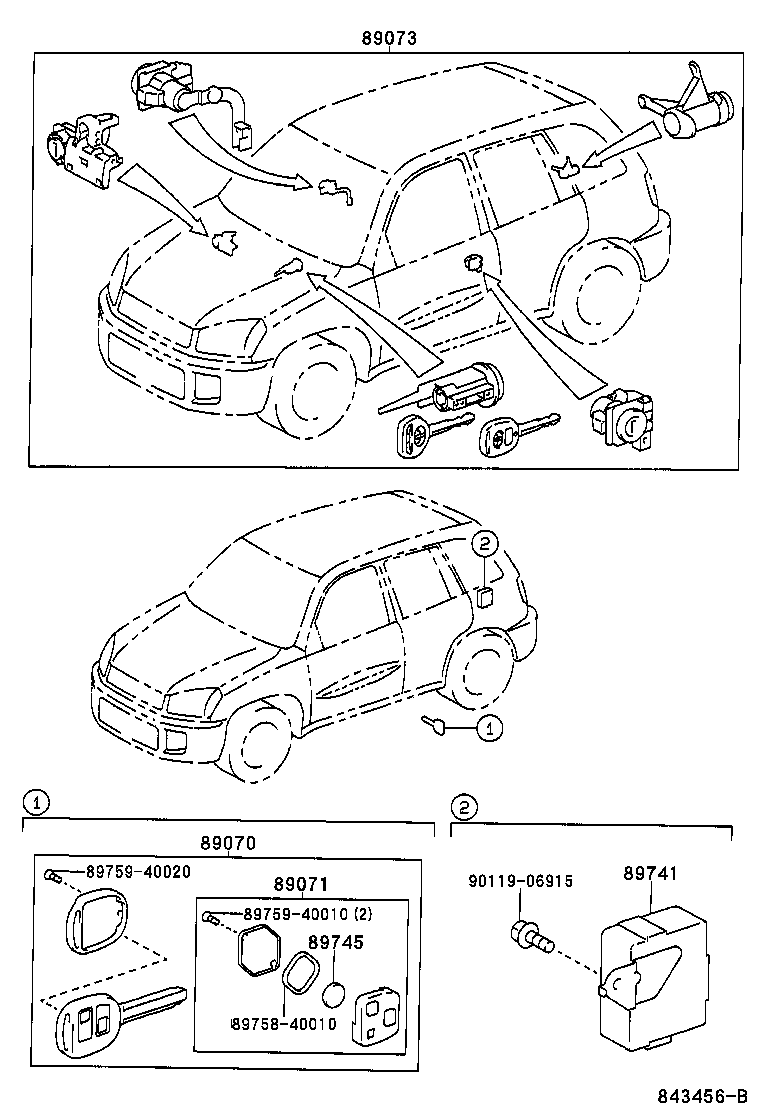

(0005-0307)LHD..EUR ; (0008-0307)GCC,GEN

Click highlighted areas on diagram

W/O(IMMOBILIZER)

diagram 89070 89071 89073 89741 89745 8975840010 8975940010 8975940020 9011906915
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-42340

ACA2#..GEN

 1
89070-42380

ACA21..GEN

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-42030

ACA21..GEN

 2
89071-28040

ACA2#..GEN

 2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-42260

ACA2#..GEN

W(ILLUMINATED ENTRY SYSTEM)

 1
89073-42270

ACA2#..GEN

 1
69005-42370

ACA20,21,ZCA2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-42170

ACA2#..GEN

 1
89741-42200

ACA21..GEN

 1
89745 - BATTERY, TRANSMITTER
89745-40010

ACA2#,CLA2#,ZCA2#

 2
89745-40010

ACA2#,CLA2#,ZCA2#

 2
Common parts
89758-40010
89759-40010
89759-40020
90119-06915

(0307- )ACA20,21,CLA2#,ZCA2#

Click highlighted areas on diagram

W/O(IMMOBILIZER)

diagram 89070 89071 89073 89741 89745 89751 89752 8975840010 8975940010 8975940020 9011906915
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-42340

ACA2#..GEN

 1
89070-42380

ACA21..GEN

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-42030

ACA21..GEN

 2
89071-28040

ACA2#..GEN

 2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-42260

ACA2#..GEN

W(ILLUMINATED ENTRY SYSTEM)

 1
89073-42270

ACA2#..GEN

 1
69005-42370

ACA20,21,ZCA2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-42170

ACA2#..GEN

 1
89741-42200

ACA21..GEN

 1
89745 - BATTERY, TRANSMITTER
89745-40010

ACA2#,CLA2#,ZCA2#

 2
89745-40010

ACA2#,CLA2#,ZCA2#

 2
89751 - COVER, TRANSMITTER HOUSING
89751-28020

ACA21..GEN

 2
89752 - CASE, TRANSMITTER HOUSING
89752-13020

ACA2#,CLA2#,ZCA2#

 1
Common parts
89758-40010
89759-40010
89759-40020
90119-06915

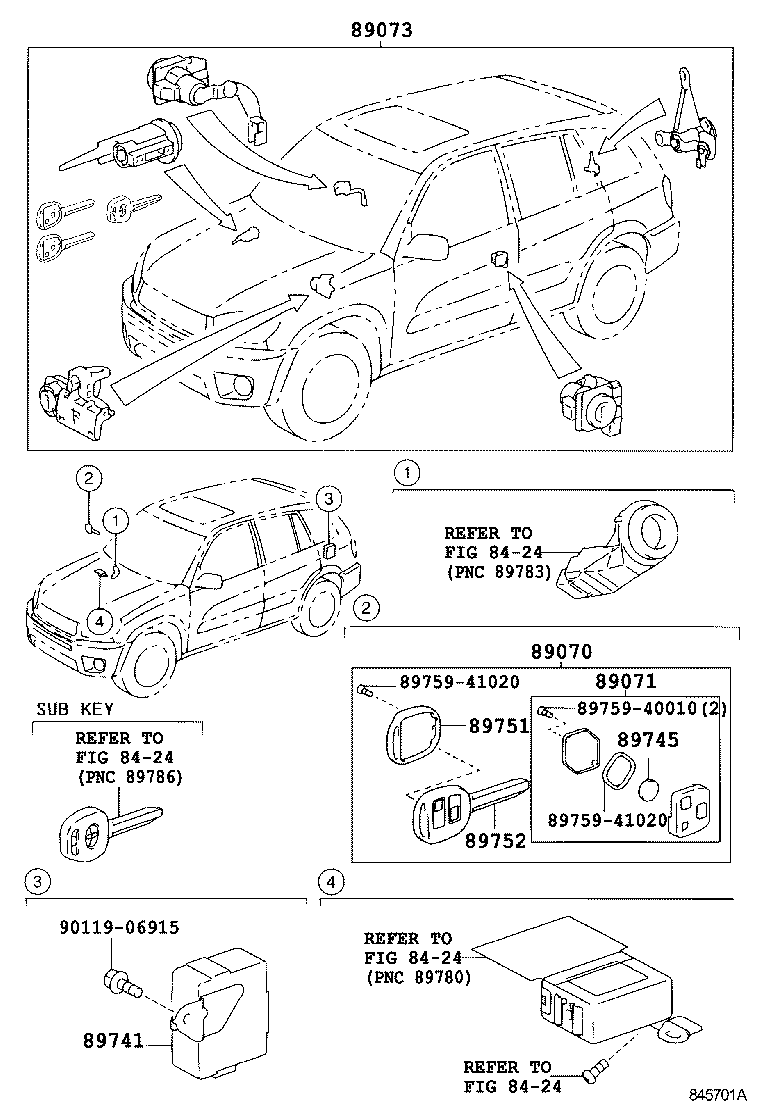

(0307- )ACA21..RHD ; (0307- )ACA20,22,23,CLA2# ; (0307- )ACA21..LHD..EUR,G

Click highlighted areas on diagram

W(IMMOBILIZER)

diagram 8424 8424 8424 8424 89070 89071 89073 89741 89745 89751 89752 8975940010 8975941020 8975941020 9011906915
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-42340

ACA2#..GEN

 1
89070-42380

ACA21..GEN

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-42030

ACA21..GEN

 2
89071-28040

ACA2#..GEN

 2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-42260

ACA2#..GEN

W(ILLUMINATED ENTRY SYSTEM)

 1
89073-42270

ACA2#..GEN

 1
69005-42370

ACA20,21,ZCA2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-42170

ACA2#..GEN

 1
89741-42200

ACA21..GEN

 1
89745 - BATTERY, TRANSMITTER
89745-40010

ACA2#,CLA2#,ZCA2#

 2
89745-40010

ACA2#,CLA2#,ZCA2#

 2
89751 - COVER, TRANSMITTER HOUSING
89751-28020

ACA21..GEN

 2
89752 - CASE, TRANSMITTER HOUSING
89752-13020

ACA2#,CLA2#,ZCA2#

 1
Common parts
89759-40010
89759-41020
90119-06915
Linked diagrams
8424
