ACA20R-AZPNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

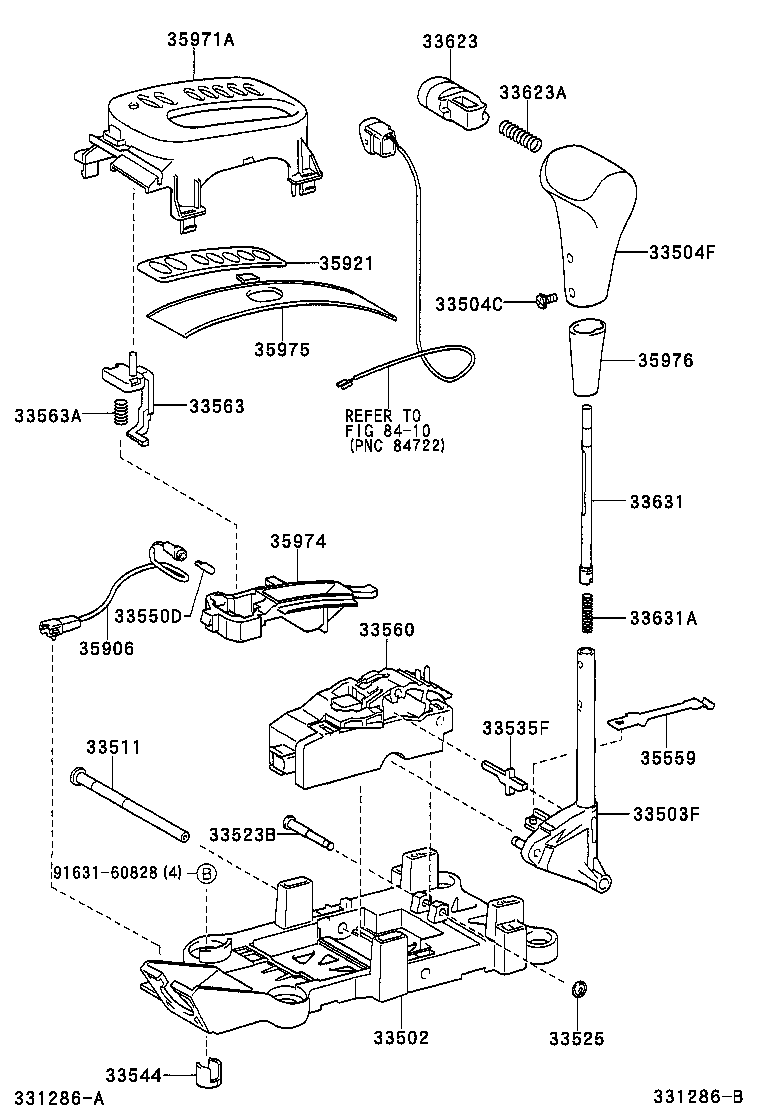

ILLUST NO. 1 OF 2(0005- )RHD..ATM

Click highlighted areas on diagram

diagram 33502 33503F 33504C 33504F 33511 33523B 33525 33535F 33544 33550D 33560 33563 33563A 33623 33623A 33631 33631A 35559 35906 35921 35971A 35974 35975 35976 8410 9163160828
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-42020

ACA2#..ATM

 1
33521-42020

ACA2#..ATM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-42050

ACA2#..RHD..ATM

 1
33055-42050

ACA2#..RHD..ATM

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238

ACA2#..ATM

 2
90159-40238

ACA2#..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-42030

ACA2#..RHD..ATM

LEATHER

 1
33542-42020

ACA2#..RHD..ATM

 1
33542-42020

ACA2#..RHD..ATM

 1
33542-42030

ACA2#..RHD..ATM

LEATHER

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-42020

ACA2#..ATM

 1
33511-42020

ACA2#..ATM

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
33523-42010

ACA2#..ATM

 1
33523-42010

ACA2#..ATM

 1
33525 - SUPPORT, SHIFT LEVER
33525-42010

ACA2#..ATM

 1
33525-42010

ACA2#..ATM

 1
33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535-42010

ACA2#..ATM

 1
33535-42010

ACA2#..ATM

 1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010

ACA2#..ATM

 4
33544-33010

ACA2#..ATM

 4
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ACA2#..ATM

12V 1.2W W/O SOCKET

 1
90981-11018

ACA2#..ATM

12V 1.2W W/O SOCKET

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-42012

ACA2#..ATM

 1
33560-42010

ACA2#..ATM

 1
33560-42010

ACA2#..ATM

 1
33560-42011

ACA2#..ATM

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-42020

ACA2#..RHD..ATM

 1
33563-42020

ACA2#..RHD..ATM

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-06089

ACA2#..ATM

 1
90501-06089

ACA2#..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-42020

ACA2#..RHD..ATM

 1
33623-42020

ACA2#..RHD..ATM

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07144

ACA2#..ATM

 1
90501-07144

ACA2#..ATM

 1
33631 - ROD, DETENT
33631-42010

ACA2#..ATM

 1
33631-42010

ACA2#..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07139

ACA2#..ATM

 1
90501-07139

ACA2#..ATM

 1
35559 - SPRING, MANUAL DETENT
35559-42020

ACA2#..ATM

 1
35559-42020

ACA2#..ATM

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-42030

ACA2#..RHD..ATM

 1
35906-42030

ACA2#..RHD..ATM

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-42030

ACA2#..RHD..ATM

 1
35921-42030

ACA2#..RHD..ATM

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-42020

ACA2#..RHD..ATM

 1
35971-42020

ACA2#..RHD..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-42020

ACA2#..RHD..ATM

 1
35974-42020

ACA2#..RHD..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-42010

ACA2#..ATM

 1
35975-42010

ACA2#..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-12080C0

ACA20..ATM;ACA21..ATM..(EUR,GCC,GEN)

BLACK,TRIM14,15

 1
35976-12080C0

ACA2#..ATM

BLACK,TRIM1#

 1
Common parts
91631-60828
Linked diagrams
8410

ILLUST NO. 2 OF 2(0005- )ATM

Click highlighted areas on diagram

diagram 33574F 33820B 33821A 33823 33826A 3514 3514 9011908760 9017908061 9046812023 9046814016 91611B0816 91621J0612
Part # Description Qty Price
33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33574-42030

ACA2#..ATM

 1
33574-42030

ACA2#..ATM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42090

ACA2#..ATM

 1
33820-42090

ACA2#..ATM

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33577-42030

ACA2#..ATM

 1
33577-42030

ACA2#..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28240

ACA2#..ATM

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-42030

ACA2#..ATM

 1
33826-42030

ACA2#..ATM

 1
Common parts
90119-08760
90179-08061
90468-12023
90468-14016
91611-B0816
91621-J0612
Linked diagrams
3514
