ACA20R-AZMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ACA20,22,CLA20,ZCA25

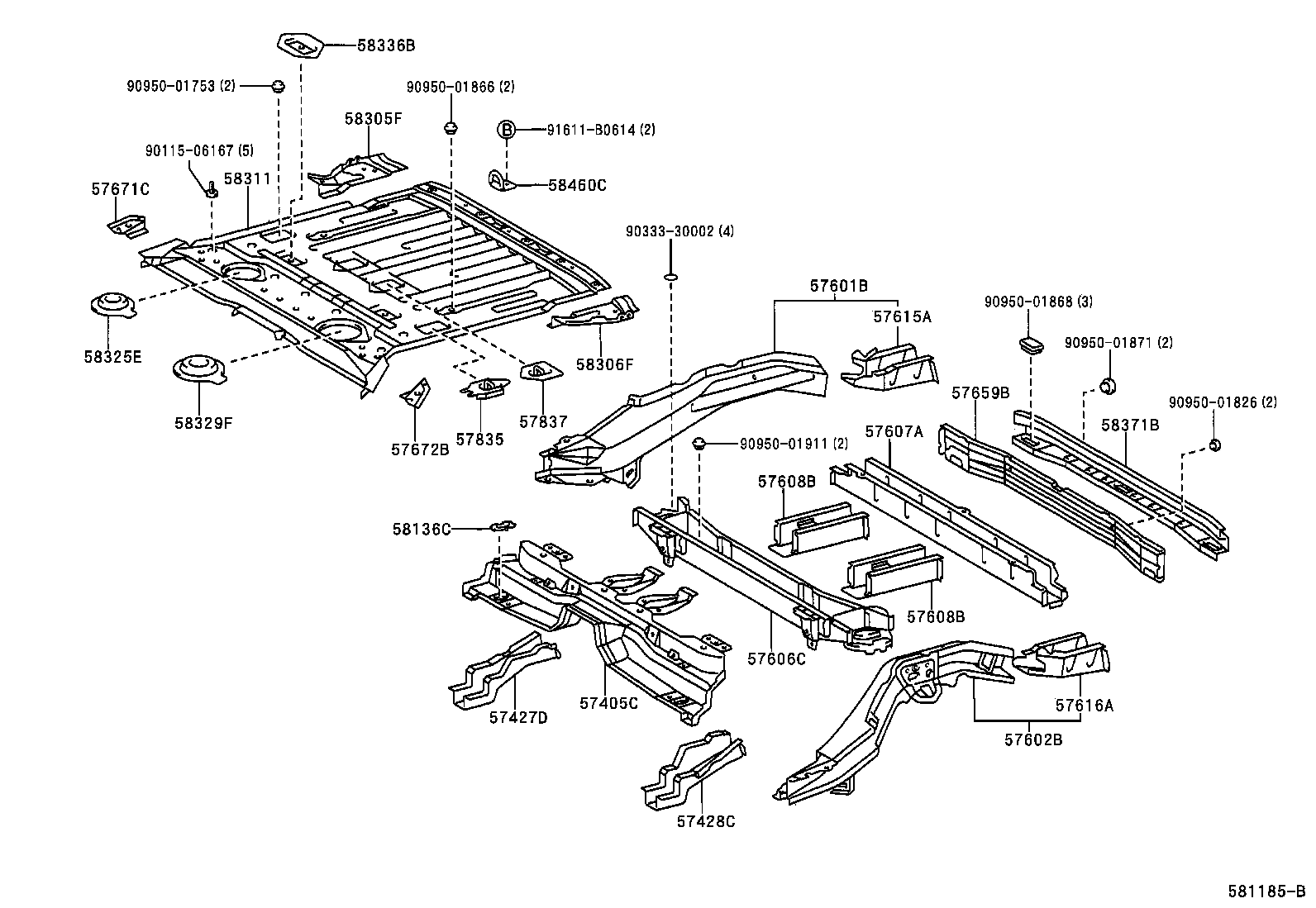

Click highlighted areas on diagram

3D

diagram 57405C 57427D 57428C 57601B 57602B 57606C 57607A 57608B 57608B 57615A 57616A 57659B 57671C 57672B 57835 57837 58136C 58305F 58306F 58311 58325E 58329F 58336B 58371B 58460C 9011506167 9033330002 9095001753 9095001826 9095001866 9095001868 9095001871 9095001911 91611B0614
Part # Description Qty Price
57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57405-42010

ACA20,CLA20,ZCA25

 1
57405-42010

ACA20,22,CLA20,ZCA25

 1
57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-42050

ACA20,CLA20,ZCA25

 1
57427-42050

ACA20,22,CLA20,ZCA25

 1
57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-42040

ACA20,22,CLA20,ZCA25

 1
57428-42040

ACA20,CLA20,ZCA25

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57601-42100

ACA20,22,CLA20,ZCA25

 1
57601-42100

ACA20,CLA20,ZCA25

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57602-42100

ACA20,CLA20,ZCA25

 1
57602-42100

ACA20,22,CLA20,ZCA25

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-42070

ACA2#,CLA2#,ZCA2#

 1
57606-42070

ACA2#,CLA2#,ZCA2#

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-42050

ACA2#,CLA2#,ZCA2#

 1
57607-42050

ACA2#,CLA2#,ZCA2#

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-42020

ACA2#,CLA2#,ZCA2#

 2
57608-42020

ACA2#,CLA2#,ZCA2#

 2
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-42020

ACA2#,CLA2#,ZCA2#

 2
57608-42020

ACA2#,CLA2#,ZCA2#

 2
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-42904

ACA20,22,CLA20,ZCA25

 1
57615-42904

ACA20,CLA20,ZCA25

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-42904

ACA20,22,CLA20,ZCA25

 1
57616-42904

ACA20,CLA20,ZCA25

 1
57659B - MEMBER, REAR FLOOR CROSS, REAR INNER
57659-42030

ACA2#,CLA2#,ZCA2#

 1
57659-42030

ACA2#,CLA2#,ZCA2#

 1
57671C - BRACE, REAR FLOOR NO.1 CROSSMEMBER, RH
57671-42030

ACA20,22,CLA20,ZCA25

 1
57671-42030

ACA20,CLA20,ZCA25

 1
57672B - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH
57672-42030

ACA20,22,CLA20,ZCA25

 1
57672-42030

ACA20,CLA20,ZCA25

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-42020

ACA20,22,CLA20,ZCA25

 2
57835-42020

ACA20,CLA20,ZCA25

 2
57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57837-42010

ACA20,CLA20,ZCA25

 2
57837-42010

ACA20,22,CLA20,ZCA25

 2
58136C - COVER, REAR FLOOR HOLE
58136-30040

ACA20,ZCA25

 2
58136-51010

ACA2#,CLA2#,ZCA2#

 2
58136-51010

ACA2#,CLA2#,ZCA2#

 2
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-42030

ACA20,22,CLA20,ZCA25

 1
58305-42030

ACA20,CLA20,ZCA25

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-42050

ACA20,22,CLA20,ZCA25

 1
58306-42050

ACA20,CLA20,ZCA25

 1
58311 - PAN, REAR FLOOR
58311-42901

ACA20,22,CLA20,ZCA25

 1
58311-42901

ACA20,CLA20,ZCA25

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-42030

ACA2#,CLA2#,ZCA2#

 1
58325-42030

ACA2#,CLA2#,ZCA2#

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-42030

ACA2#,CLA2#,ZCA2#

 1
58329-42030

ACA2#,CLA2#,ZCA2#

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-42040

ACA2#,CLA2#,ZCA2#

 2
58336-42040

ACA2#,CLA2#,ZCA2#

 2
58371B - PANEL, BODY LOWER BACK, OUTER
58371-42030

ACA2#,CLA2#,ZCA2#

 1
58371-42030

ACA2#,CLA2#,ZCA2#

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

ACA20,CLA20,ZCA25

 2
58460-35012

ACA20,22,CLA20,ZCA25

 2
Common parts
90115-06167
90333-30002
90950-01753
90950-01826
90950-01866
90950-01868
90950-01871
90950-01911
91611-B0614
