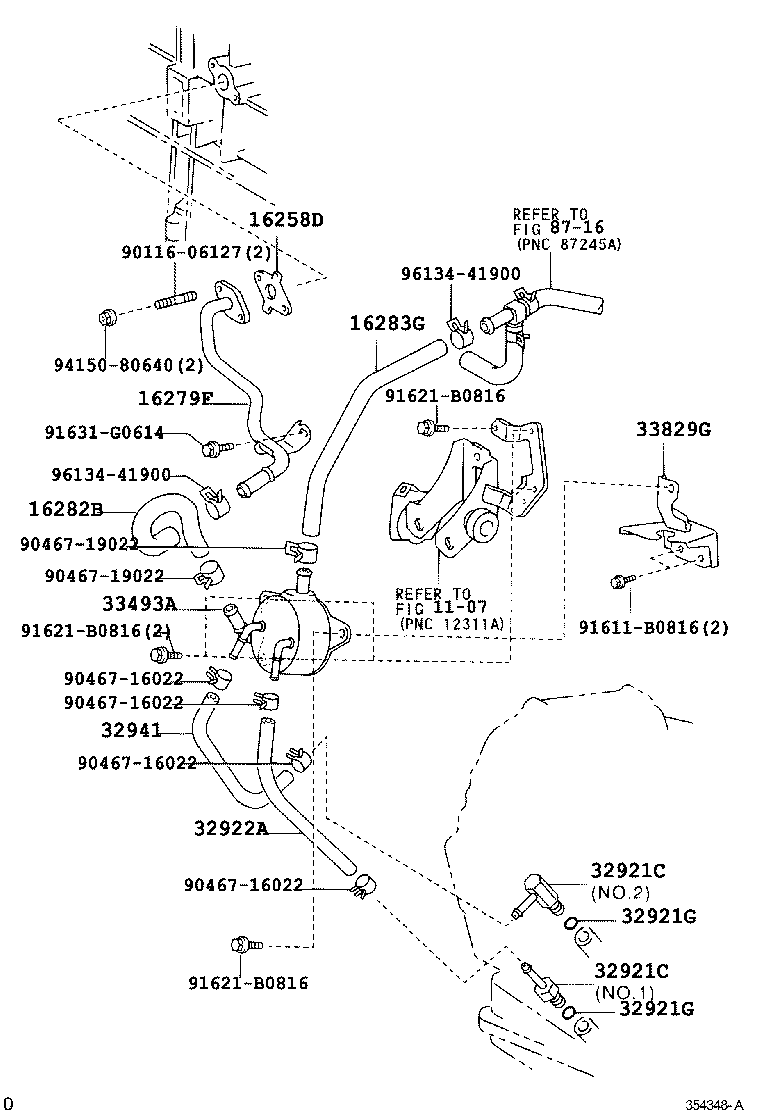

ACA20L-AZPNKW (2000)
Toyota Rav4
(0307- )ATM..EUR
U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258D - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
1AZFE,2AZFE..ACA2#..ATM..(ARL,EUR) |
1 | ||
| 16279F - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-28050 |
1AZFE..ACA20,21..ATM..EUR |
1 | ||
| 16282B - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-28060 |
1AZFE,2AZFE..ACA2#..ATM..(ARL,EUR) |
1 | ||
| 16283G - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-28090 |
1AZFE..ACA20,21..ATM..EUR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
ACA2#..ATM NO.1 |
1 | ||
| 90404-13004 |
ACA2#..ATM..(ARL,EUR) NO.1 |
1 | ||
| 90407-13009 |
ACA2#..ATM..(ARL,EUR) NO.2 |
1 | ||
| 90407-16010 |
ACA2#..ATM NO.2 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
ACA2#..ATM NO.1 |
1 | ||
| 90404-13004 |
ACA2#..ATM..(ARL,EUR) NO.1 |
1 | ||
| 90407-13009 |
ACA2#..ATM..(ARL,EUR) NO.2 |
1 | ||
| 90407-16010 |
ACA2#..ATM NO.2 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17101 |
ACA2#..ATM..(ARL,EUR) |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-42010 |
ACA2#..ATM..(ARL,EUR) |
1 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-42020 |
ACA2#..ATM..(ARL,EUR) |
1 | ||
| 33829G - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-42010 |
ACA2#..ATM..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90467-16022 | ||||
| 90467-19022 | ||||
| 91611-B0816 | ||||
| 91621-B0816 | ||||
| 91631-G0614 | ||||
| 94150-80640 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 8716 | ||||
(0005-0307)ATM ; (0307- )ATM..GCC,GEN
U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-48010 |
ACA2#..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
ACA2#..ATM NO.1 |
1 | ||
| 90404-13004 |
ACA2#..ATM..(ARL,EUR) NO.1 |
1 | ||
| 90407-13009 |
ACA2#..ATM..(ARL,EUR) NO.2 |
1 | ||
| 90407-16010 |
ACA2#..ATM NO.2 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
ACA2#..ATM NO.1 |
1 | ||
| 90404-13004 |
ACA2#..ATM..(ARL,EUR) NO.1 |
1 | ||
| 90407-13009 |
ACA2#..ATM..(ARL,EUR) NO.2 |
1 | ||
| 90407-16010 |
ACA2#..ATM NO.2 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17095 |
ACA2#..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17095 |
ACA2#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 90301-10189 |
ACA2#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ACA2#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ACA2#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ACA2#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
ACA2#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-42050 |
ACA2#..ATM |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12074 |
ACA2#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ACA2#..ATM L=35,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ACA2#..ATM L=35,ID=10 |
2 | ||
| Common parts | ||||
| 91611-G0612 | ||||
