A251RA-GMXFJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine WAVE
Transmission MTM 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

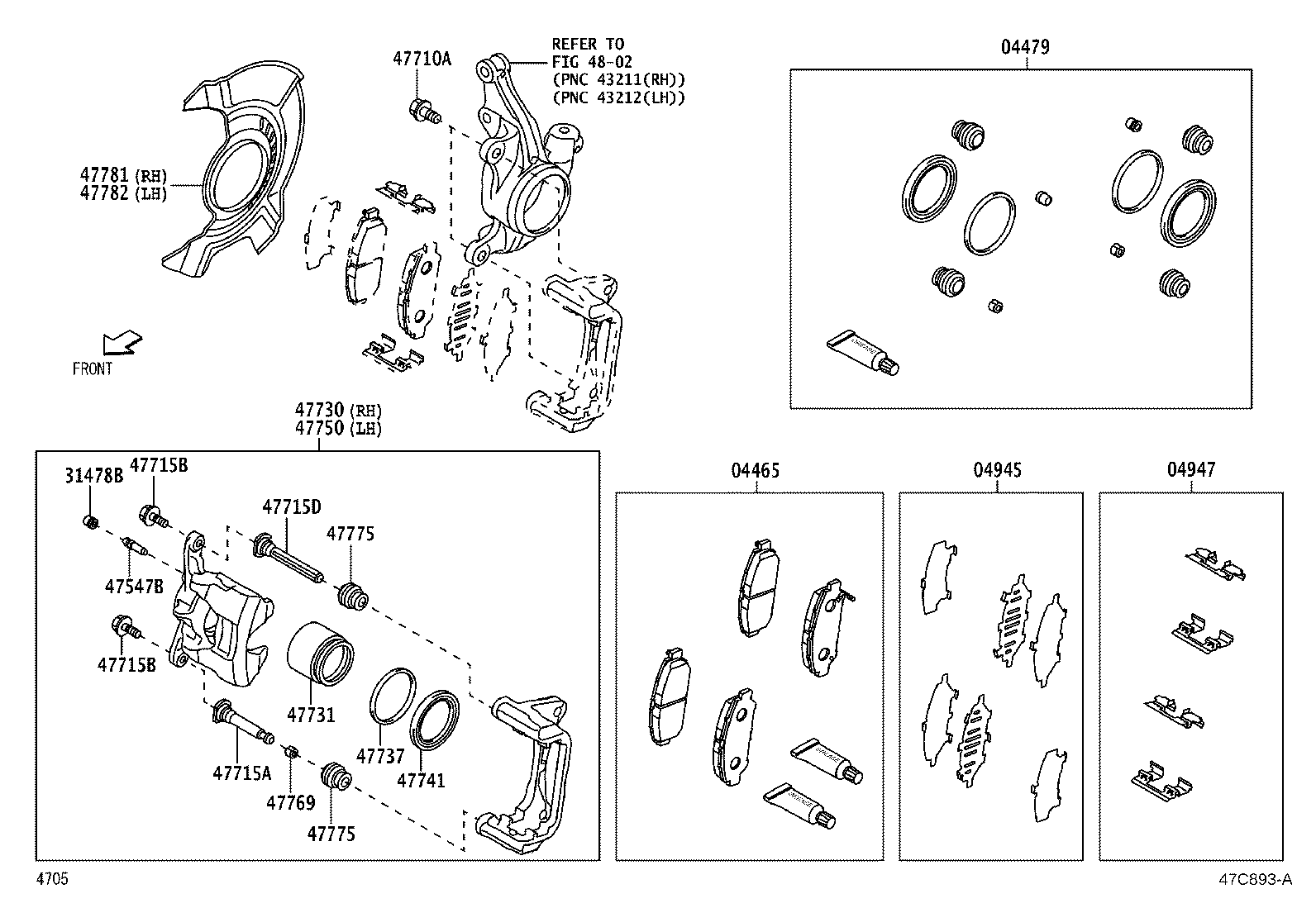

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715B 47715B 47715D 47730 47731 47737 47741 47750 47769 47775 47775 47781 47782 4802
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-BZ300

A25#

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-BZ160

A25#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-BZ090

A25#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-BZ090

A25#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-BZ080

A25#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-BZ050

A25#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
9004A-10274

A25#

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-BZ170

A25#

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
9004A-10110

A25#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
9004A-10110

A25#

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-BZ160

A25#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-BZ130

A25#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-BZ100

A25#

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-BZ010

A25#

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-BZ030

A25#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-BZ130

A25#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-BZ030

A25#

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-BZ010

A25#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-BZ010

A25#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-BZ210

A25#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-BZ210

A25#

 1
Linked diagrams
4802
