A251RA-GMXFJ (2021)
Toyota Raize
Production
Apr 2021
-
Sep 9999
Engine
WAVE
Transmission
MTM 5D
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

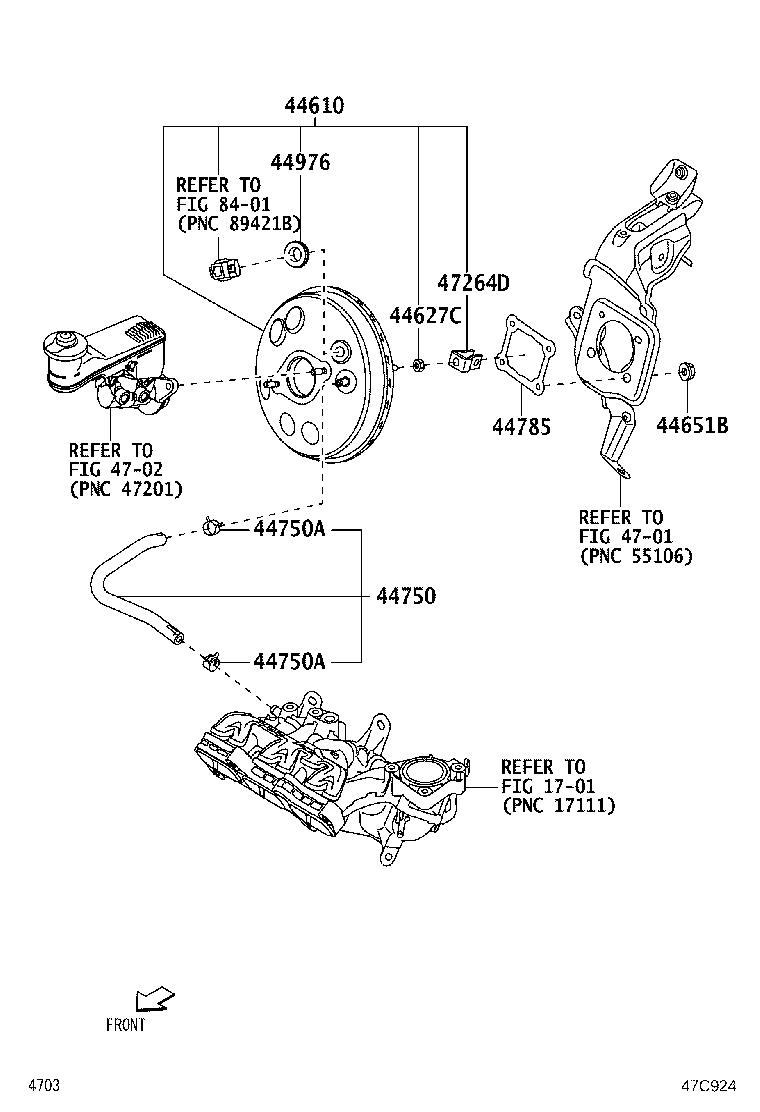

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-BZ820 |
A25# |
1 | ||
| 44627C - NUT, BOOSTER SLEEVE CYLINDER | ||||
| 9004A-17229 |
A25# |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 90041-79300 |
A25# |
4 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-BZ360 |
A25# |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90044-67161 |
A25# |
2 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90044-67161 |
A25# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 47275-BZ010 |
A25# |
1 | ||
| 44976 - SEAL, BOOSTER | ||||
| 44685-B2010 |
A25# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-BZ110 |
A25# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 4701 | ||||
| 4702 | ||||
| 8401 | ||||
