A251RA-GBXFJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine WAVE
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

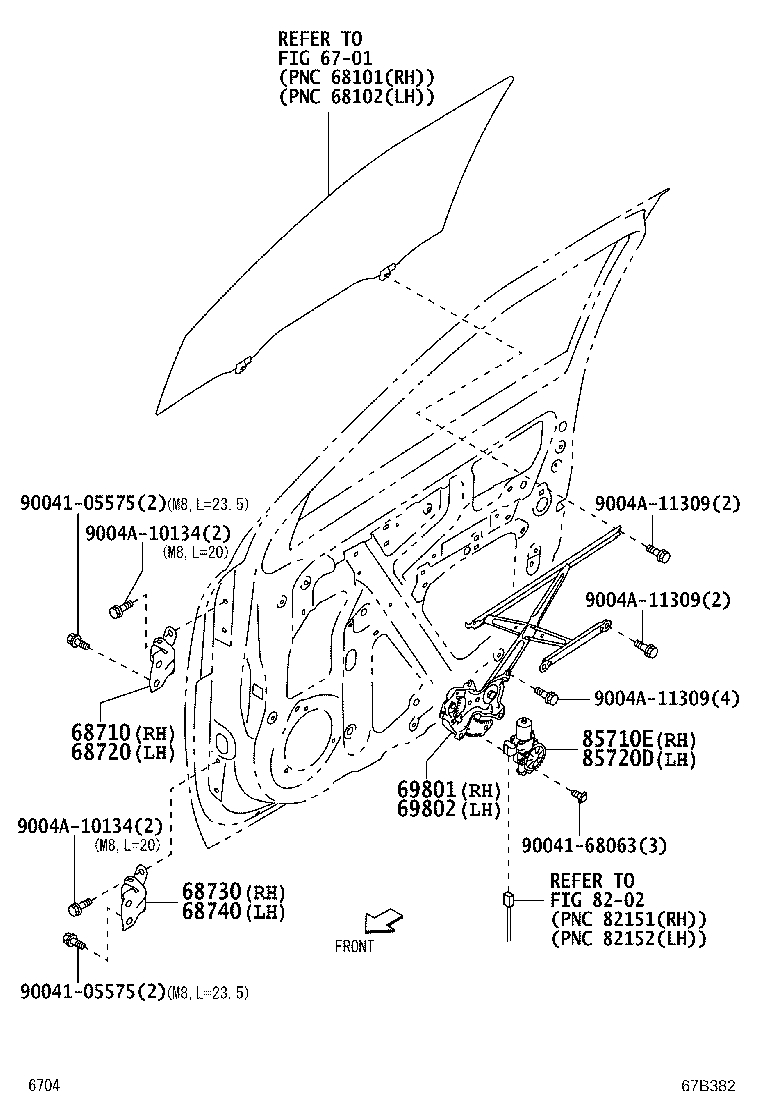

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 8202 85710E 85720D 9004105575 9004105575 9004168063 9004A10134 9004A10134 9004A11309 9004A11309 9004A11309
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-BZ140

A25#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-BZ110

A25#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-BZ110

A25#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-BZ140

A25#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-BZ150

A25#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-BZ150

A25#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-BZ210

A25#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-BZ240

A25#

 1
Common parts
90041-05575
90041-68063
9004A-10134
9004A-11309
Linked diagrams
6701
8202
