A251RA-GBXFJ (2021)
Toyota Raize
Production
Apr 2021
-
Sep 9999
Engine
WAVE
Transmission
CVT 5D
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

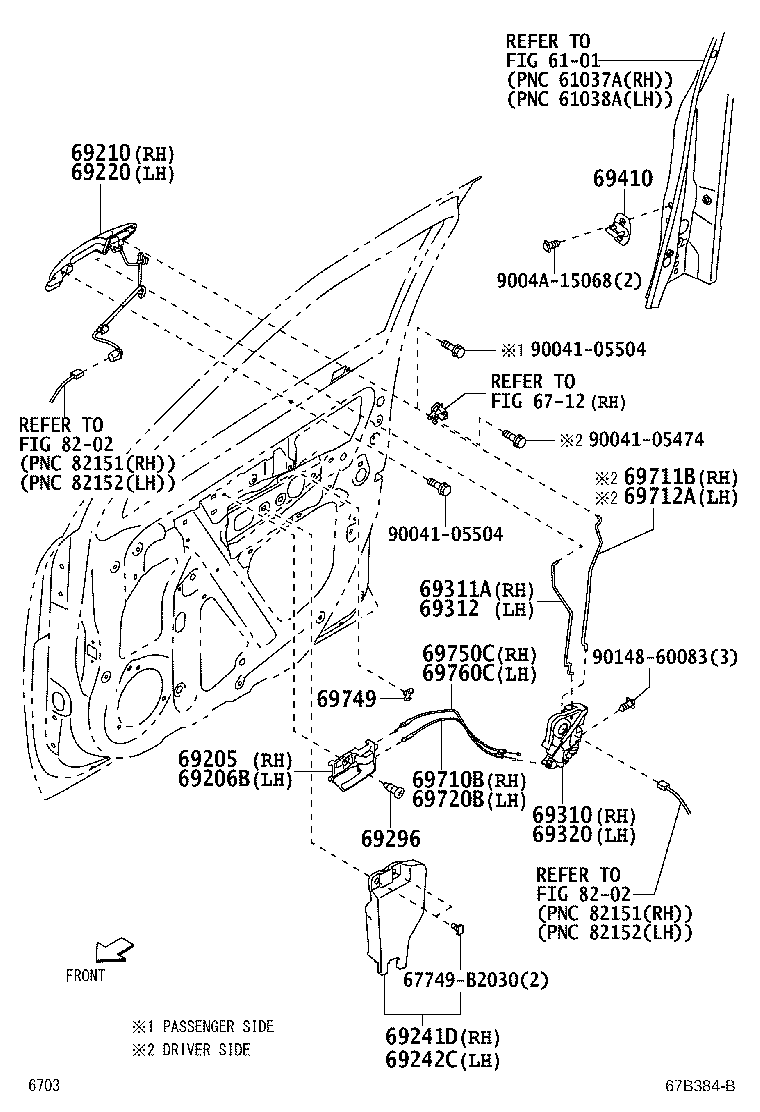

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-BZ160C0 |
A25# BLACK,TRIM2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69280-BZ160C0 |
A25# BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-BZ540A1 |
A251..IDN WHITE,W09 ,XJ7 |
1 | ||
| 69210-BZ540B2 |
A251..IDN GRAY ME.,1G3 |
1 | ||
| 69210-BZ540D1 |
A251..IDN RED,R40 ,XJ9 |
1 | ||
| 69210-BZ540B0 |
A251..IDN SILVER ME.,S28 ,XK4 |
1 | ||
| 69210-BZ540J1 |
A251..IDN TURQUOISE M.M.,B86 ,XJ8 |
1 | ||
| 69210-BZ540F0 |
A251..IDN YELLOW SE.,XK1 ,Y13 |
1 | ||
| 69210-BZ540C0 |
A251..IDN BLACK,X13 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-BZ530A1 |
A251..IDN WHITE,W09 ,XJ7 |
1 | ||
| 69220-BZ530B0 |
A251..IDN SILVER ME.,S28 ,XK4 |
1 | ||
| 69220-BZ530C0 |
A251..IDN BLACK,X13 |
1 | ||
| 69220-BZ530B2 |
A251..IDN GRAY ME.,1G3 |
1 | ||
| 69220-BZ530D1 |
A251..IDN RED,R40 ,XJ9 |
1 | ||
| 69220-BZ530J1 |
A251..IDN TURQUOISE M.M.,B86 ,XJ8 |
1 | ||
| 69220-BZ530F0 |
A251..IDN YELLOW SE.,XK1 ,Y13 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 75787-BZ070 |
A25# |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 75788-BZ070 |
A25# |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 9004A-16093 |
A25# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-BZ530 |
A25# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-BZ120 |
A25# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-BZ120 |
A25# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-BZ320 |
A25# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-BZ010 |
A25# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-BZ130 |
A25# |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-BZ140 |
A25# |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-BZ130 |
A25# |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-BZ100 |
A25# |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-BZ130 |
A25# |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-BZ130 |
A25# |
1 | ||
| Common parts | ||||
| 67749-B2030 | ||||
| 90041-05474 | ||||
| 90041-05504 | ||||
| 9004A-15068 | ||||
| 90148-60083 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6712 | ||||
| 8202 | ||||
