A251RA-GBXFJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine WAVE
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

Click highlighted areas on diagram

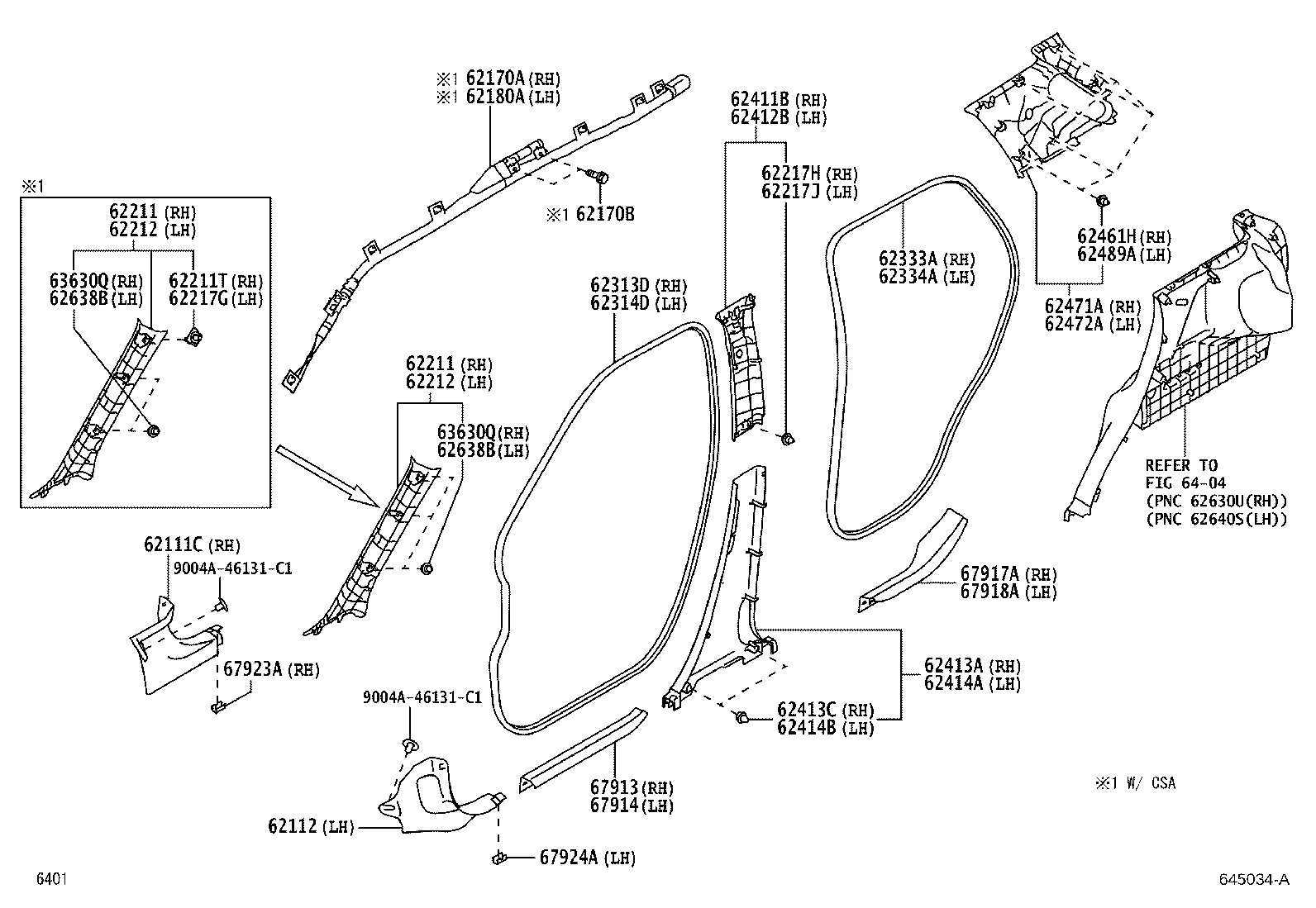

diagram 62111C 62112 62170A 62170B 62180A 62211 62211 62211T 62212 62212 62217G 62217H 62217J 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62413C 62414A 62414B 62461H 62471A 62472A 62489A 62638B 62638B 63630Q 63630Q 6404 67913 67914 67917A 67918A 67923A 67924A 9004A46131C1 9004A46131C1
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-BZ450C0

A25#

BLACK,TRIM2#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-BZ450C0

A25#

BLACK,TRIM2#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-BZ310B0

A25#

LT.GRAY,TRIM2#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-BZ310B0

A25#

LT.GRAY,TRIM2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-BZ310B0

A25#

LT.GRAY,TRIM2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-BZ310B0

A25#

LT.GRAY,TRIM2#

 1
62217H - CLIP, CENTER PILLER GARNISH
9004A-46338

A25#

 1
62217J - CLIP, CENTER PILLER GARNISH
9004A-46338

A25#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-BZ280C0

A25#

BLACK

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-BZ280C0

A25#

BLACK

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-BZ300C0

A25#

BLACK

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-BZ300C0

A25#

BLACK

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-BZ260B0

A25#

LT.GRAY,TRIM2#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-BZ260B0

A25#

LT.GRAY,TRIM2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-BZ260C0

A25#

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
9004A-46338

A25#

 2
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-BZ260C0

A25#

BLACK,TRIM2#

 1
62414B - CLIP (FOR CENTER LOWER GARNISH)
9004A-46338

A25#

 2
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
9004A-46338

A25#

 5
62471A - GARNISH, ROOF SIDE, INNER RH
62471-BZ430B0

A25#

LT.GRAY,TRIM2#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-BZ430B0

A25#

LT.GRAY,TRIM2#

 1
62489A - CLIP, ROOF SIDE INNER GARNISH
9004A-46338

A25#

 5
62638B - CLIP
9004A-46338

A25#

 3
62638B - CLIP
9004A-46338

A25#

 3
63630Q - CLIP
9004A-46338

A25#

 3
63630Q - CLIP
9004A-46338

A25#

 3
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-BZ200C0

A25#

BLACK,TRIM2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-BZ200C0

A25#

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-BZ240C0

A25#

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-BZ240C0

A25#

BLACK,TRIM2#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67924-B2010

A25#

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67924-B2010

A25#

 1
Common parts
9004A-46131C1
Linked diagrams
6404
