A251RA-GBXFJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine WAVE
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

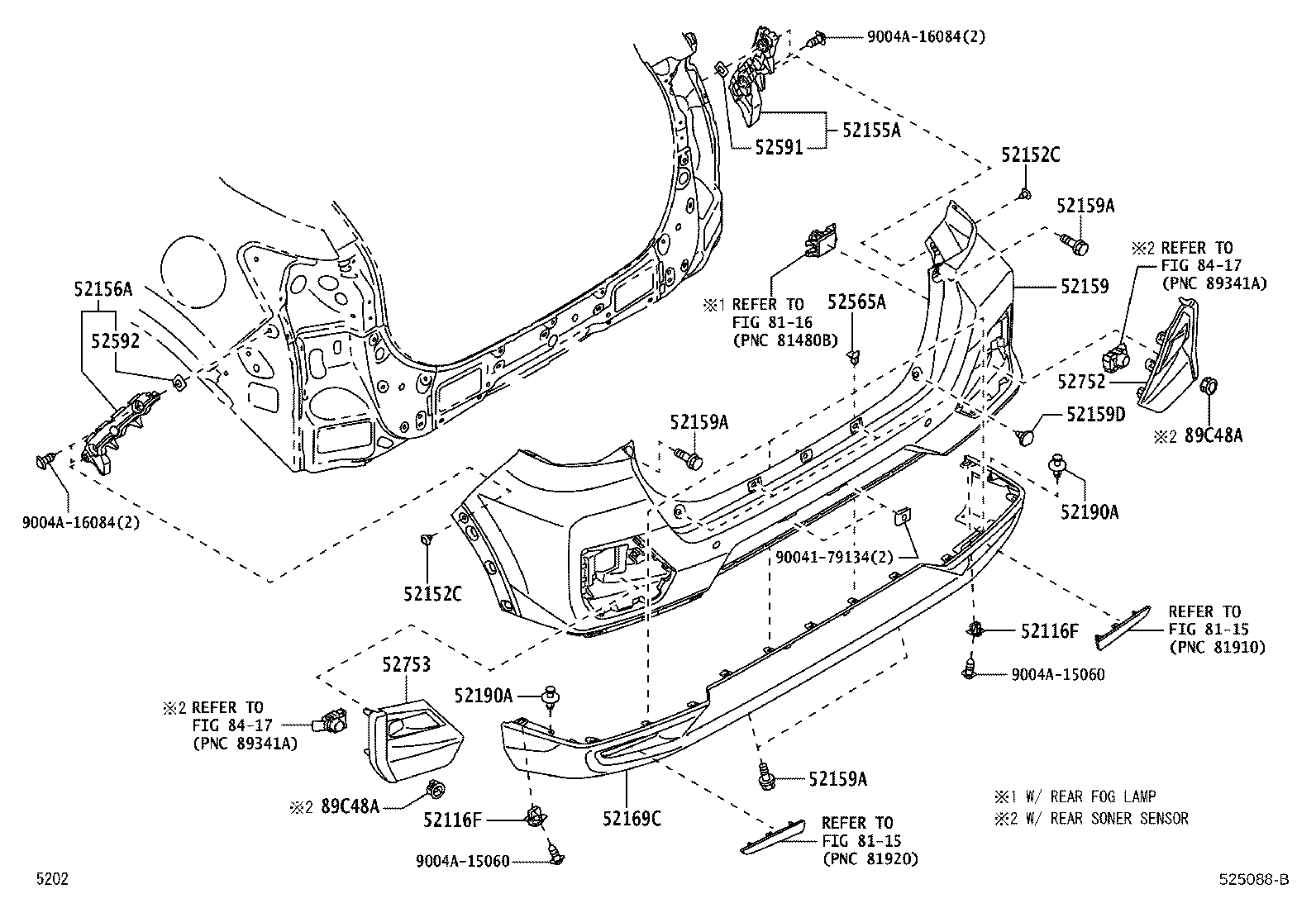

Click highlighted areas on diagram

diagram 52116F 52116F 52152C 52152C 52155A 52156A 52159 52159A 52159A 52159A 52159D 52169C 52190A 52190A 52565A 52591 52592 52752 52753 8115 8115 8116 8417 8417 89C48A 89C48A 9004179134 9004A15060 9004A15060 9004A16084 9004A16084
Part # Description Qty Price
52116F - RETAINER, REAR BUMPER
52116-B1070

A25#

 2
52116F - RETAINER, REAR BUMPER
52116-B1070

A25#

 2
52152C - CLIP, REAR BUMPER SIDE
9004A-46380

A25#

 2
52152C - CLIP, REAR BUMPER SIDE
9004A-46380

A25#

 2
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-BZ190

A25#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-BZ190

A25#

 1
52159 - COVER, REAR BUMPER
52159-BZP50

A25#

PAINT REQ.,W/SENSOR HOLE

 1
52159A - BOLT(FOR REAR BUMPER COVER)
90041-05546

A25#

M6,L=18

 4
52159A - BOLT(FOR REAR BUMPER COVER)
90041-05546

A25#

M6,L=18

 4
52159A - BOLT(FOR REAR BUMPER COVER)
90041-05546

A25#

M6,L=18

 4
52159D - CLIP, REAR BUMPER COVER
90044-68381

A25#

 4
52169C - COVER, REAR BUMPER, LOWER
52169-BZ060

A25#

NO PAINT REQ.

 1
52190A - CLIP
9004A-46380

A25#

 2
52190A - CLIP
9004A-46380

A25#

 2
52565A - RETAINER, REAR BUMPER, LOWER
76854-BZ010

A25#

 4
52591 - SEAL, REAR BUMPER SIDE, RH
15528-BZ030

A25#

 3
52592 - SEAL, REAR BUMPER SIDE, LH
15528-BZ030

A25#

 3
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-BZ080

A25#

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-BZ080

A25#

 1
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-BZ110B1

A25#

GRAY ME.,1G3

 2
89348-BZ110A0

A25#

WHITE,W09 ,XJ7

 2
89348-BZ110B0

A25#

SILVER ME.,S28 ,XK4

 2
89348-BZ110D0

A25#

RED,R40 ,XJ9

 2
89348-BZ110J0

A25#

TURQUOISE M.M.,B86 ,XJ8

 2
89348-BZ110F0

A25#

YELLOW SE.,XK1 ,Y13

 2
89348-BZ110C0

A25#

BLACK,X13

 2
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-BZ110B1

A25#

GRAY ME.,1G3

 2
89348-BZ110A0

A25#

WHITE,W09 ,XJ7

 2
89348-BZ110B0

A25#

SILVER ME.,S28 ,XK4

 2
89348-BZ110D0

A25#

RED,R40 ,XJ9

 2
89348-BZ110J0

A25#

TURQUOISE M.M.,B86 ,XJ8

 2
89348-BZ110F0

A25#

YELLOW SE.,XK1 ,Y13

 2
89348-BZ110C0

A25#

BLACK,X13

 2
Common parts
90041-79134
9004A-15060
9004A-16084
Linked diagrams
8115
8116
8417
