A251RA-GBXFJ (2021)
Toyota Raize
Production
Apr 2021
-
Sep 9999
Engine
WAVE
Transmission
CVT 5D
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

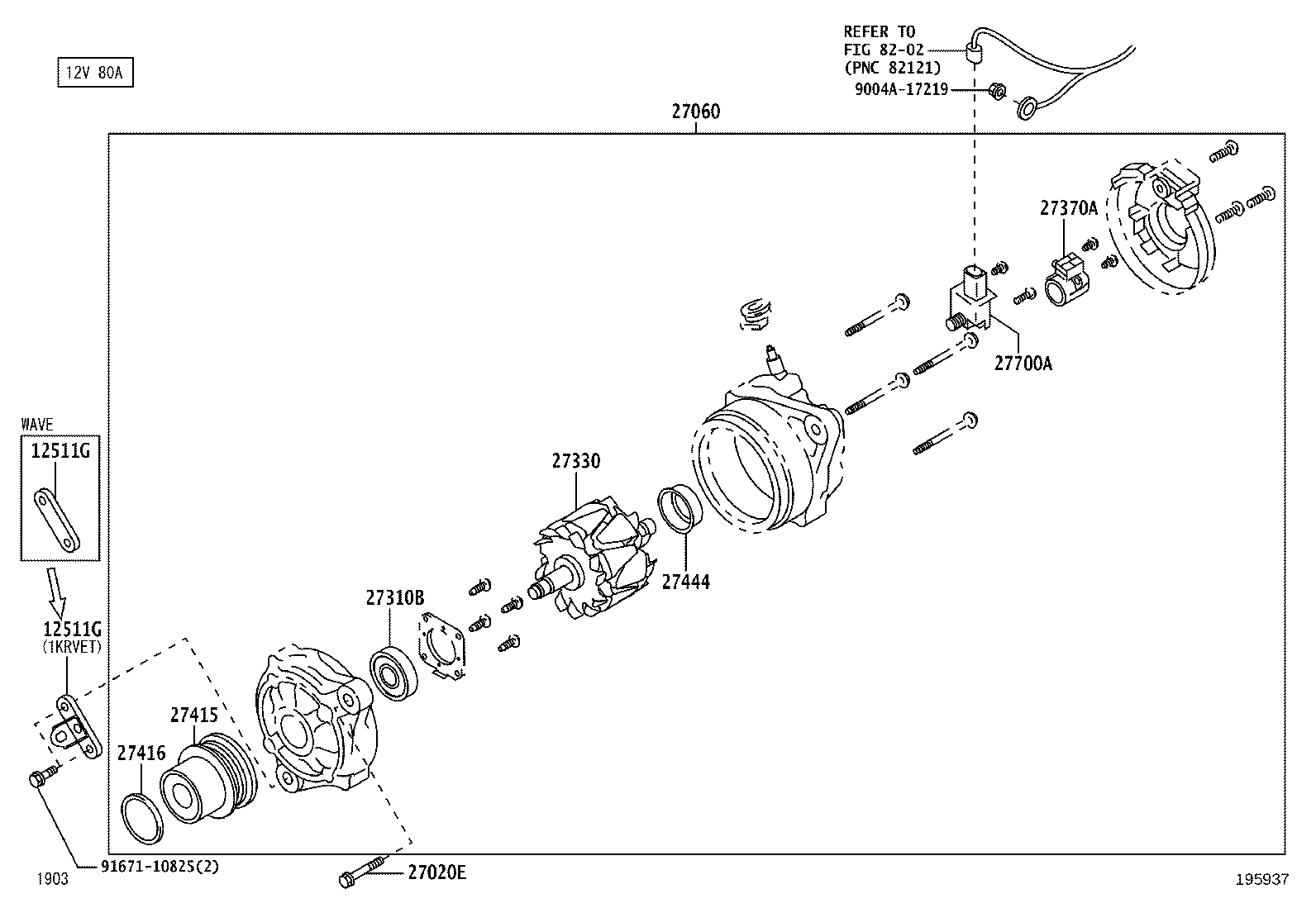

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12511G - BRACKET, ALTERNATOR, NO.2 | ||||
| 12511-BZ040 |
WAVE..A251 |
1 | ||
| 12511G - BRACKET, ALTERNATOR, NO.2 | ||||
| 12511-BZ040 |
WAVE..A251 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81075 |
WAVE,1KRVET..A25# |
1 | ||
| 27060 - ALTERNATOR ASSY, W/REGULATOR | ||||
| 27060-BZ430 |
WAVE..A251 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 9004C-37008 |
WAVE,1KRVET..A25# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-BZ060 |
WAVE,1KRVET..A25# |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-BZ020 |
WAVE,1KRVET..A25# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-B1040 |
WAVE..A251 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-B0010 |
WAVE..A251 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-BZ010 |
WAVE,1KRVET..A25# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-BZ140 |
WAVE..A251 |
1 | ||
| Common parts | ||||
| 9004A-17219 | ||||
| 91671-10825 | ||||
| Linked diagrams | ||||
| 8202 | ||||
