A251RA-GBXFJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine WAVE
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )WAVE

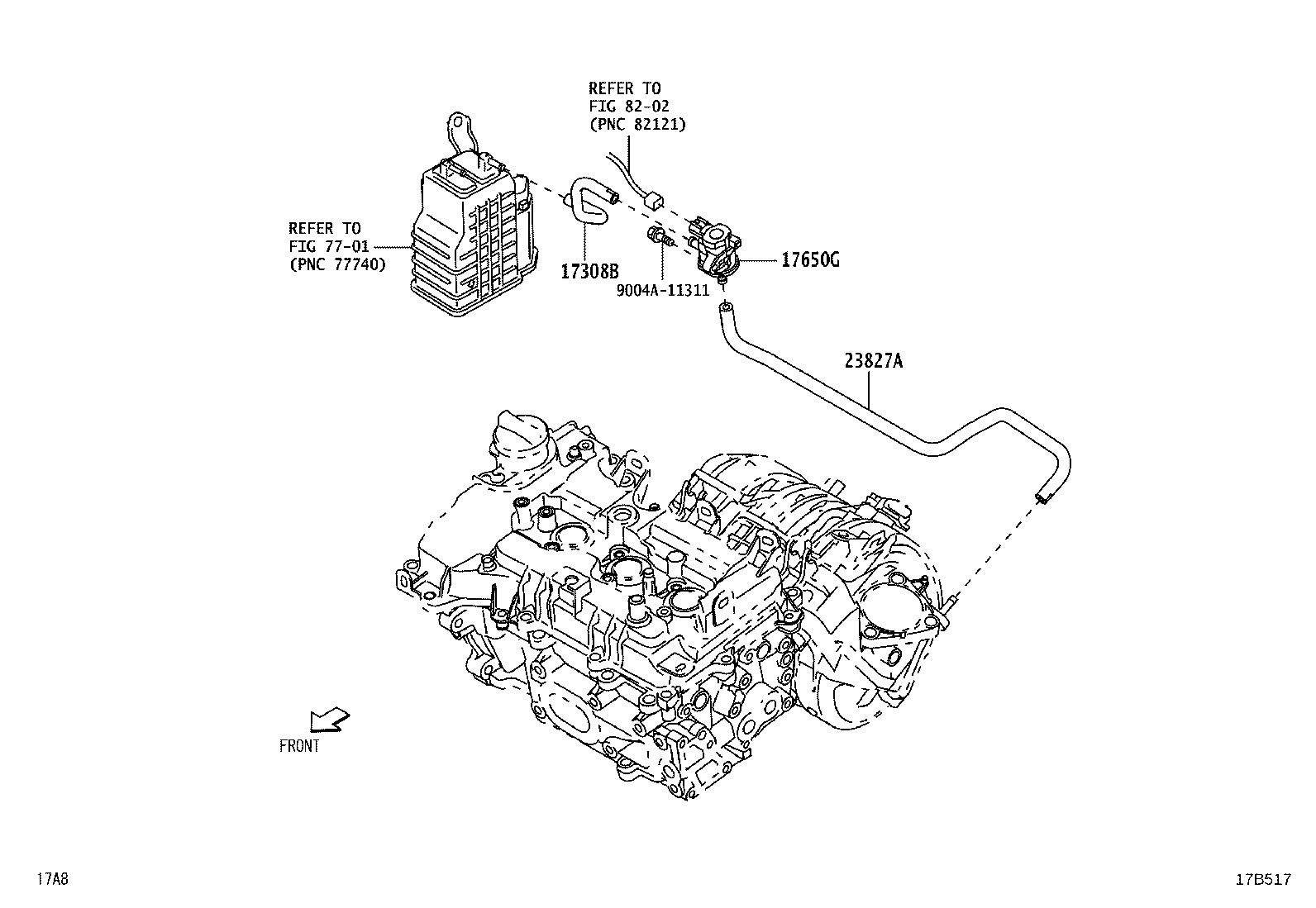

Click highlighted areas on diagram

diagram 17308B 17650G 23827A 7701 8202 9004A11311
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
77754-BZ400

WAVE..A251

 1
17650G - VALVE, DUTY VACUUM SWITCHING
9004A-91069

WAVE..A251

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-BZ150

WAVE..A251

 1
Common parts
9004A-11311
Linked diagrams
7701
8202
