A250RA-GMXVJ (2021)
Toyota Raize
Production
Apr 2021
-
Sep 9999
Engine
1KRVET
Transmission
MTM 5D
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

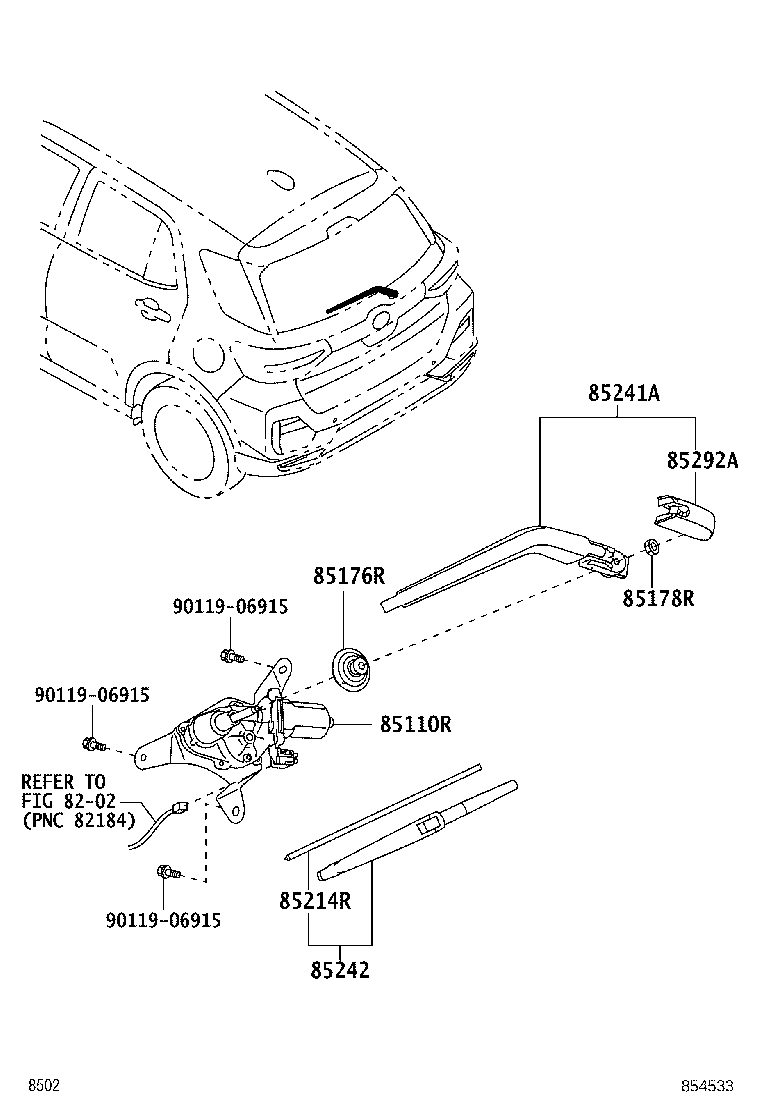

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-BZ180 |
A25# |
1 | ||
| 85176R - CAP, REAR WIPER LINK | ||||
| 85176-BZ050 |
A25# |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 9004A-17218 |
A25# |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85243-BZ100 |
A25# |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-BZ150 |
A25# |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-BZ110 |
A25# |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-BZ080 |
A25# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8202 | ||||
