A250RA-GMXVJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine 1KRVET
Transmission MTM 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

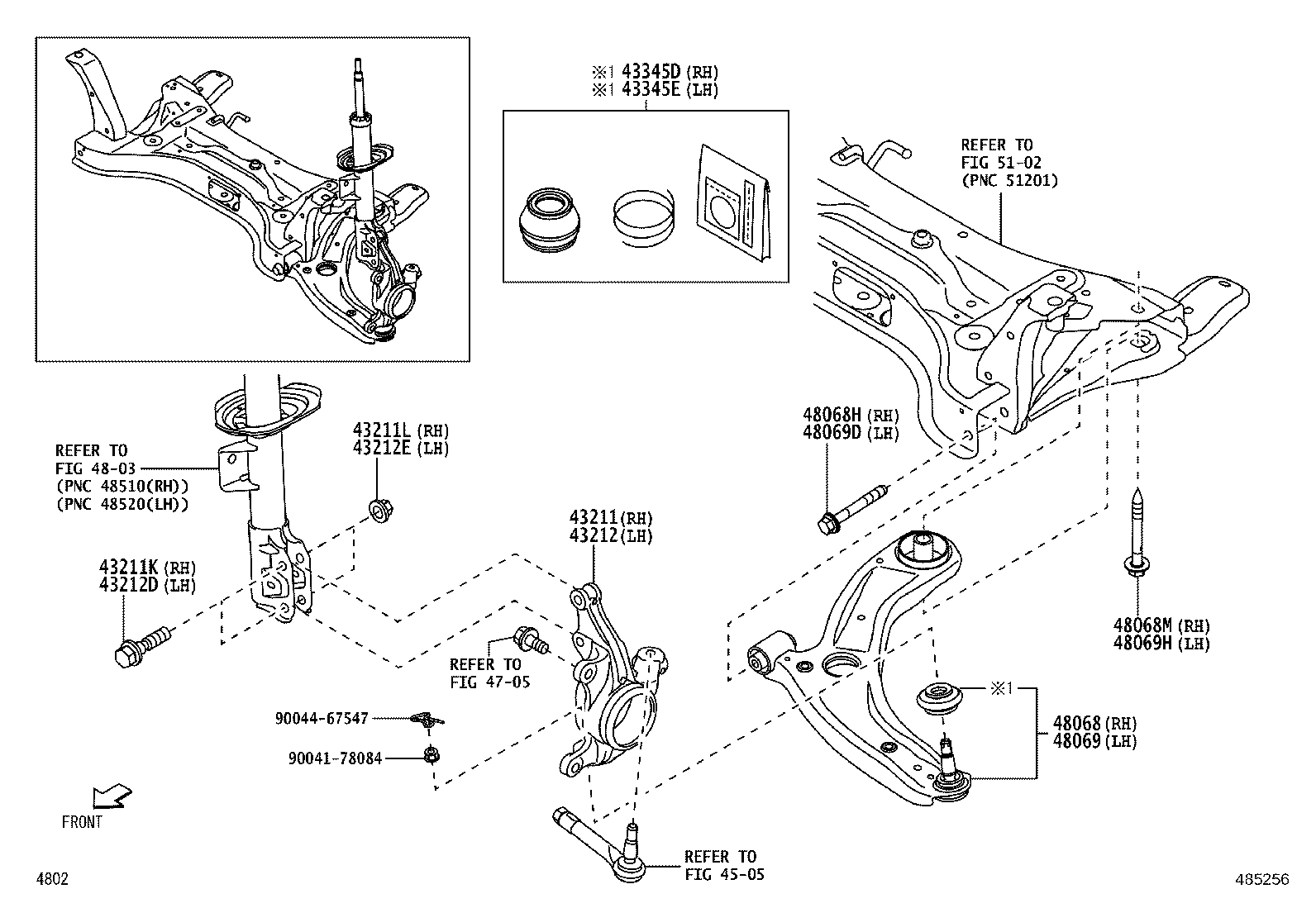

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43345D 43345E 4505 4705 4803 48068 48068H 48068M 48069 48069D 48069H 5102 9004178084 9004467547
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-BZ310

A25#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90041-01720

A25#

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90041-70393

A25#

 2
43212 - KNUCKLE, STEERING, LH
43212-BZ310

A25#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90041-01720

A25#

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90041-70393

A25#

 2
43345D - COVER, LOWER BALL JOINT DUST, RH
43345-B9050

A25#

 1
43345E - COVER, LOWER BALL JOINT DUST, LH
43345-B9050

A25#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-BZ330

A25#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90041-20192

A25#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90041-05475

A25#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-BZ330

A25#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90041-20192

A25#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90041-05475

A25#

 1
Common parts
90041-78084
90044-67547
Linked diagrams
4505
4705
4803
5102
