A250RA-GMXVJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine 1KRVET
Transmission MTM 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )1KRVET

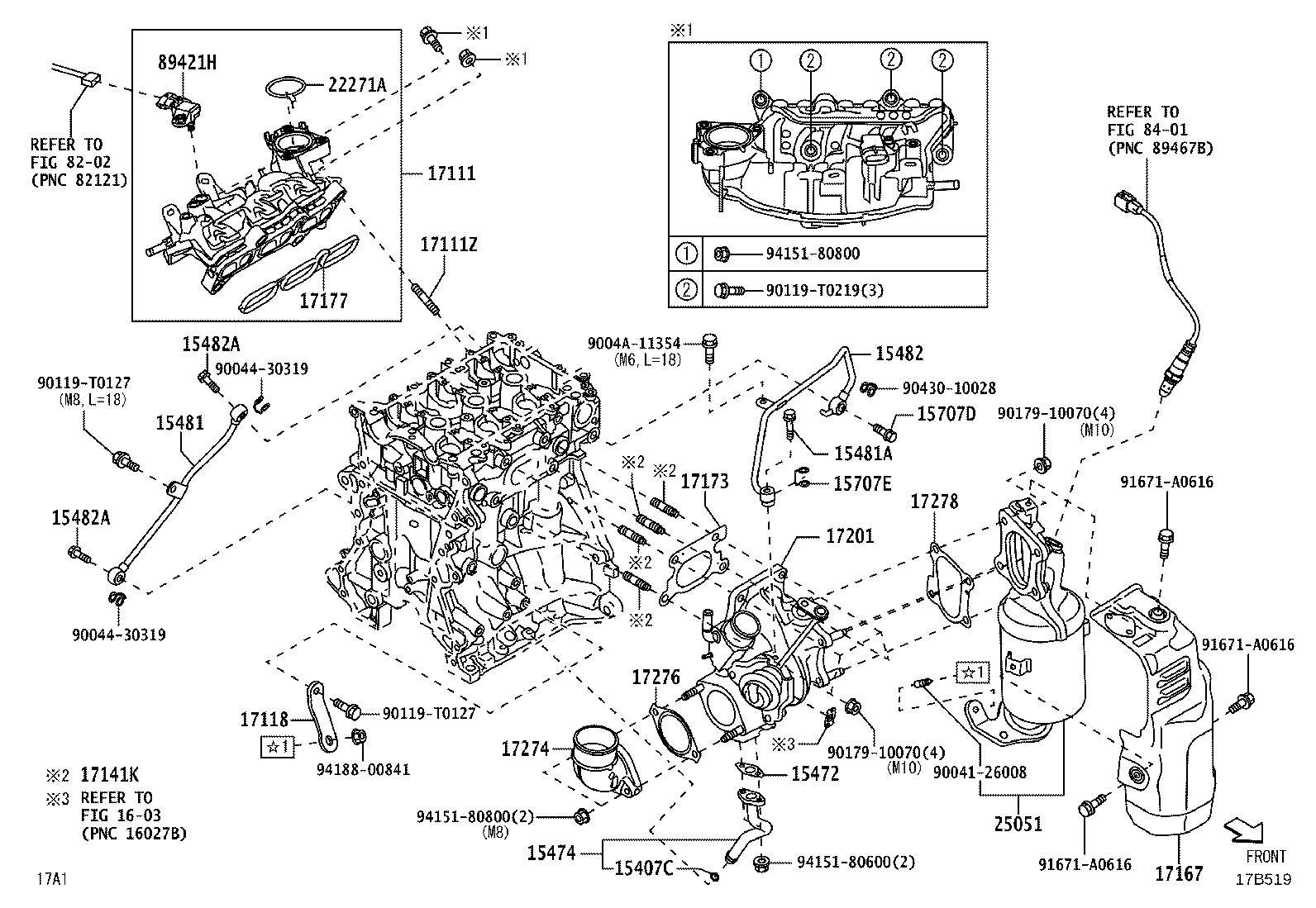

Click highlighted areas on diagram

diagram 15407C 15472 15474 15481 15481A 15482 15482A 15482A 15707D 15707E 1603 17111 17111Z 17118 17141K 17167 17173 17177 17201 17274 17276 17278 22271A 25051 8202 8401 89421H 9004126008 9004430319 9004430319 9004A11354 90119T0127 90119T0127 90119T0219 9017910070 9017910070 9043010028 91671A0616 91671A0616 91671A0616 9415180600 9415180800 9415180800 9418800841
Part # Description Qty Price
15407C - RING, O(FOR TURBO OIL PIPE)
90043-01346

1KRVET..A250

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-B2010

1KRVET..A250

 1
15474 - PIPE, TURBO OIL OUTLET
15474-B1010

1KRVET..A250

 1
15481 - PIPE, TURBO OIL, NO.1
15481-B1010

1KRVET..A250

 1
15481A - BOLT, UNION, NO.1
90044-01474

1KRVET..A250

M8,L=33.5

 1
15482 - PIPE, TURBO OIL, NO.2
15482-B1010

1KRVET..A250

 1
15482A - BOLT, UNION, NO.2
90044-01480

1KRVET..A250

M8,L=25.5

 2
15482A - BOLT, UNION, NO.2
90044-01480

1KRVET..A250

M8,L=25.5

 2
15707D - BOLT, UNION(FOR OIL PIPE)
90044-01473

1KRVET..A250

M10,L=25

 1
15707E - GASKET(FOR OIL PIPE)
90044-30316

1KRVET..A250

 1
17111 - MANIFOLD, INTAKE
17120-B1080

1KRVET..A250

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80828

1KRVET..A250

 1
17118 - STAY, MANIFOLD
17118-B1050

1KRVET..A250

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90116-10175

1KRVET..A250

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-B1071

1KRVET..A250

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-B1020

1KRVET..A250

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B1030

1KRVET..A250

 1
17201 - TURBOCHARGER SUB-ASSY
17201-B6010

1KRVET..A250

 1
17274 - ELBOW, COMPRESSOR INLET
17274-B1010

1KRVET..A250

 1
17276 - GASKET, COMPRESSOR INLET
17276-B1010

1KRVET..A250

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-BZ010

1KRVET..A250

 1
22271A - GASKET, THROTTLE BODY
22271-40030

1KRVET..A250

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-B6010

1KRVET..A250

 1
89421H - SENSOR, VACUUM
89421-B1020

A250

 1
Common parts
90041-26008
90044-30319
9004A-11354
90119-T0127
90119-T0219
90179-10070
90430-10028
91671-A0616
94151-80600
94151-80800
94188-00841
Linked diagrams
1603
8202
8401
