A250RA-GBXVJ (2021)
Toyota Raize
Production
Apr 2021
-
Sep 9999
Engine
1KRVET
Transmission
CVT 5D
Displacement
2500cc
Power
168 HP (125 kW)

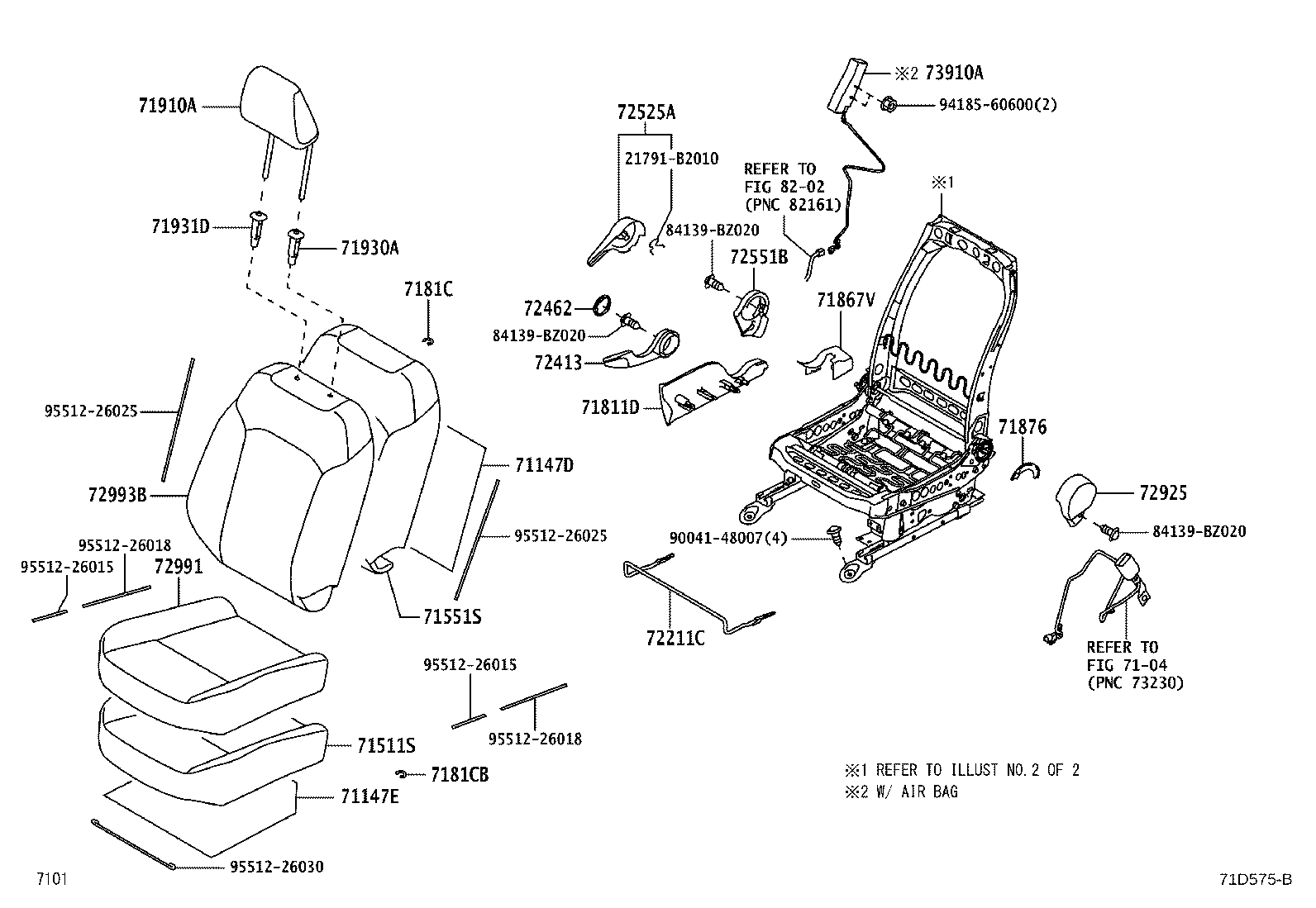

ILLUST NO. 1 OF 2(2104- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2160 |
A25# |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
A25# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-BZ550 |
A25# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-BZ600 |
A250..V..IDN SMART ASSIST(OVERSEAS) |
1 | ||
| 71505-BZ550 |
A25# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-BZ330C0 |
A25# BLACK,TRIM2# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 9004A-46143 |
A25# |
10 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 9004A-46143 |
A25# |
11 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-B1010C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-B2060C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-BZG60C5 |
A250..V BLACK,TRIM2# |
1 | ||
| 71910-BZG50C5 |
A25#..X -,TRIM2# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2030C0 |
A25# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-B2030C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2150 |
A25# |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-BZ070C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-BZ060C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-BZ140C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-BZ070C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72925 - COVER, FRONT SEAT CUSHION | ||||
| 72991-BZ250C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 71071-BZP40C4 |
A250..V BLACK,TRIM2# |
1 | ||
| 71071-BZP20C5 |
A25#..X BLACK,TRIM2# |
1 | ||
| 72993B - COVER, FRONT SEAT BACK, RH | ||||
| 71073-BZQ30C2 |
A25#..X BLACK,TRIM2# |
1 | ||
| 71073-BZQ60C3 |
A250..V..IDN SMART ASSIST(OVERSEAS),BLACK,TRIM2# |
1 | ||
| 71073-BZQ50C4 |
A250..V..IDN BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-BZ040 |
A250..V..IDN SMART ASSIST(OVERSEAS) |
1 | ||
| Common parts | ||||
| 21791-B2010 | ||||
| 84139-BZ020 | ||||
| 90041-48007 | ||||
| 94185-60600 | ||||
| 95512-26015 | ||||
| 95512-26018 | ||||
| 95512-26025 | ||||
| 95512-26030 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||

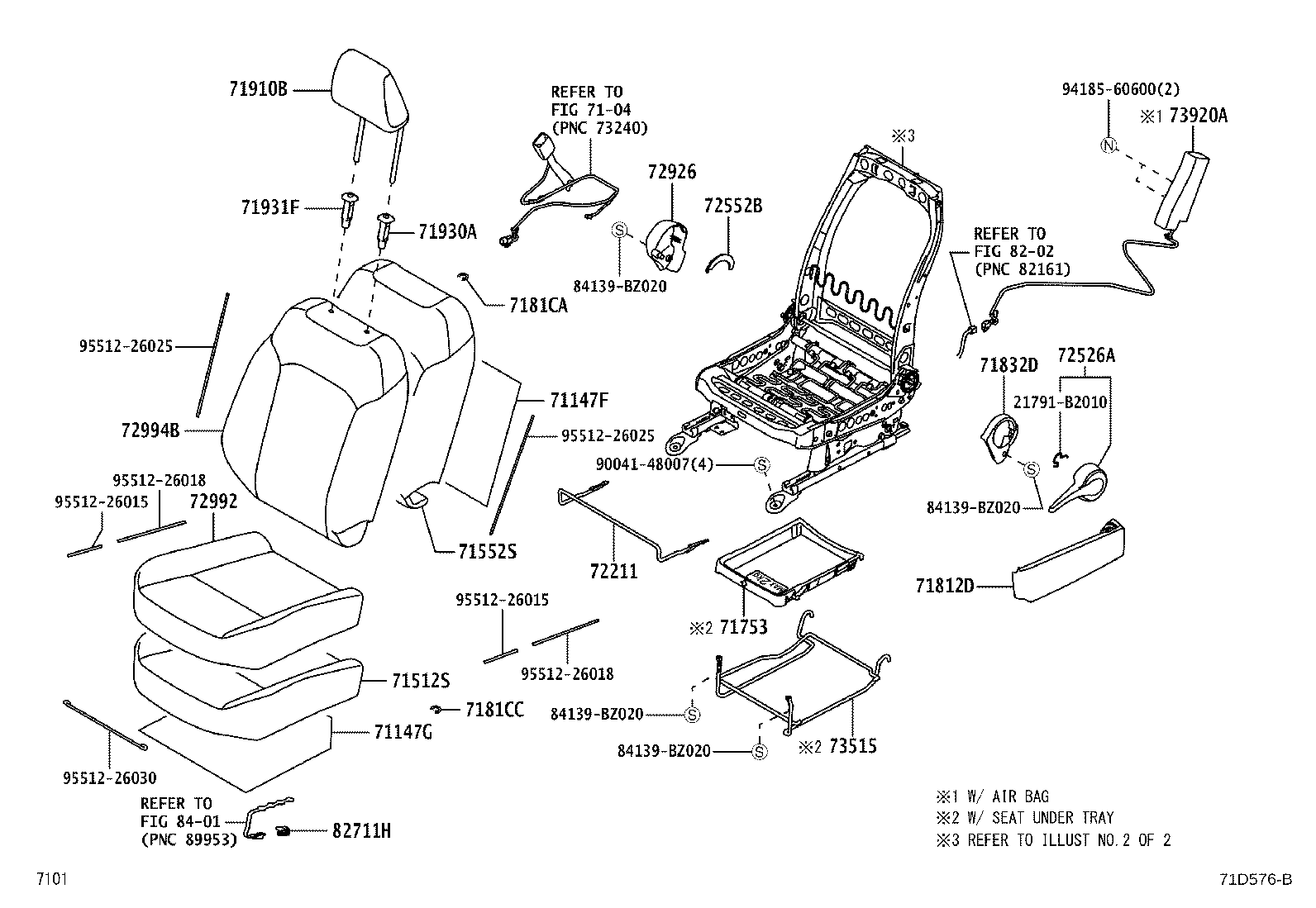

ILLUST NO. 1 OF 2(2104- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2160 |
A25# |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
A25# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-BZ550 |
A25# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-BZ470 |
A250..V..IDN SMART ASSIST(OVERSEAS) |
1 | ||
| 71506-BZ420 |
A25# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-BZ030 |
A250 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-BZ280C0 |
A25# BLACK,TRIM2# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 9004A-46143 |
A25# |
10 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 9004A-46143 |
A25# |
11 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-BZ100C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-BZG60C5 |
A250..V BLACK,TRIM2# |
1 | ||
| 71910-BZG50C5 |
A25#..X -,TRIM2# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2030C0 |
A25# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931F - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71931-B2030C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2150 |
A25# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-BZ110C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72552-B1010C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72926 - COVER, FRONT SEAT CUSHION, NO.1 | ||||
| 72991-B1060C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 71072-BZP20C3 |
A25#..X BLACK,TRIM2# |
1 | ||
| 71072-BZP30C4 |
A250..V BLACK,TRIM2# |
1 | ||
| 72994B - COVER, FRONT SEAT BACK, LH | ||||
| 71074-BZQ50C0 |
A250..V..IDN SMART ASSIST(OVERSEAS),BLACK,TRIM2# |
1 | ||
| 71074-BZM50C1 |
A250..V..IDN BLACK,TRIM2# |
1 | ||
| 71074-BZQ30C0 |
A25#..X BLACK,TRIM2# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B1020 |
A250 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-BZ040 |
A250..V..IDN SMART ASSIST(OVERSEAS) |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-B2530 |
A25# |
1 | ||
| Common parts | ||||
| 21791-B2010 | ||||
| 84139-BZ020 | ||||
| 90041-48007 | ||||
| 94185-60600 | ||||
| 95512-26015 | ||||
| 95512-26018 | ||||
| 95512-26025 | ||||
| 95512-26030 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

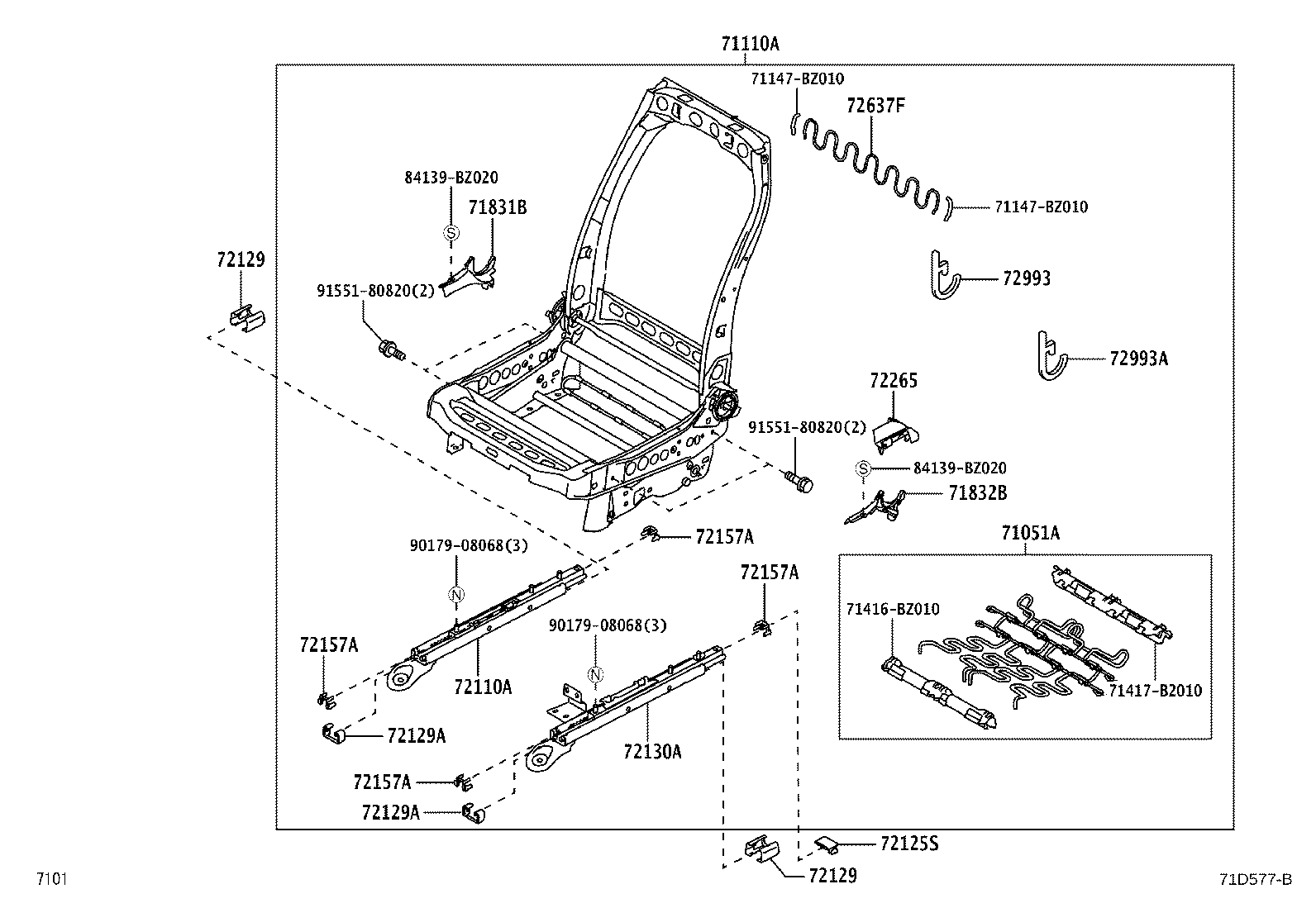

ILLUST NO. 2 OF 2(2104- )
Click highlighted areas on diagram
RH(SEAT FRAME)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-BZ010 |
A25# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-BZ320C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-BZ100C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-BZ130C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B1030 |
A25# |
1 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-B1030C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B1010C0 |
A25# BLACK,TRIM2# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B1010C0 |
A25# BLACK,TRIM2# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-BZ100 |
A25# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-BZ100 |
A25# |
2 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-BZ290 |
A25# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72266-B1020C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 71441-BZ060 |
A25# |
1 | ||
| 72993 - COVER, FRONT SEAT BACK | ||||
| 72993-B2010C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72993A - COVER, FRONT SEAT BACK | ||||
| 72994-B2010C0 |
A25# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71147-BZ010 | ||||
| 71416-BZ010 | ||||
| 71417-B2010 | ||||
| 84139-BZ020 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||

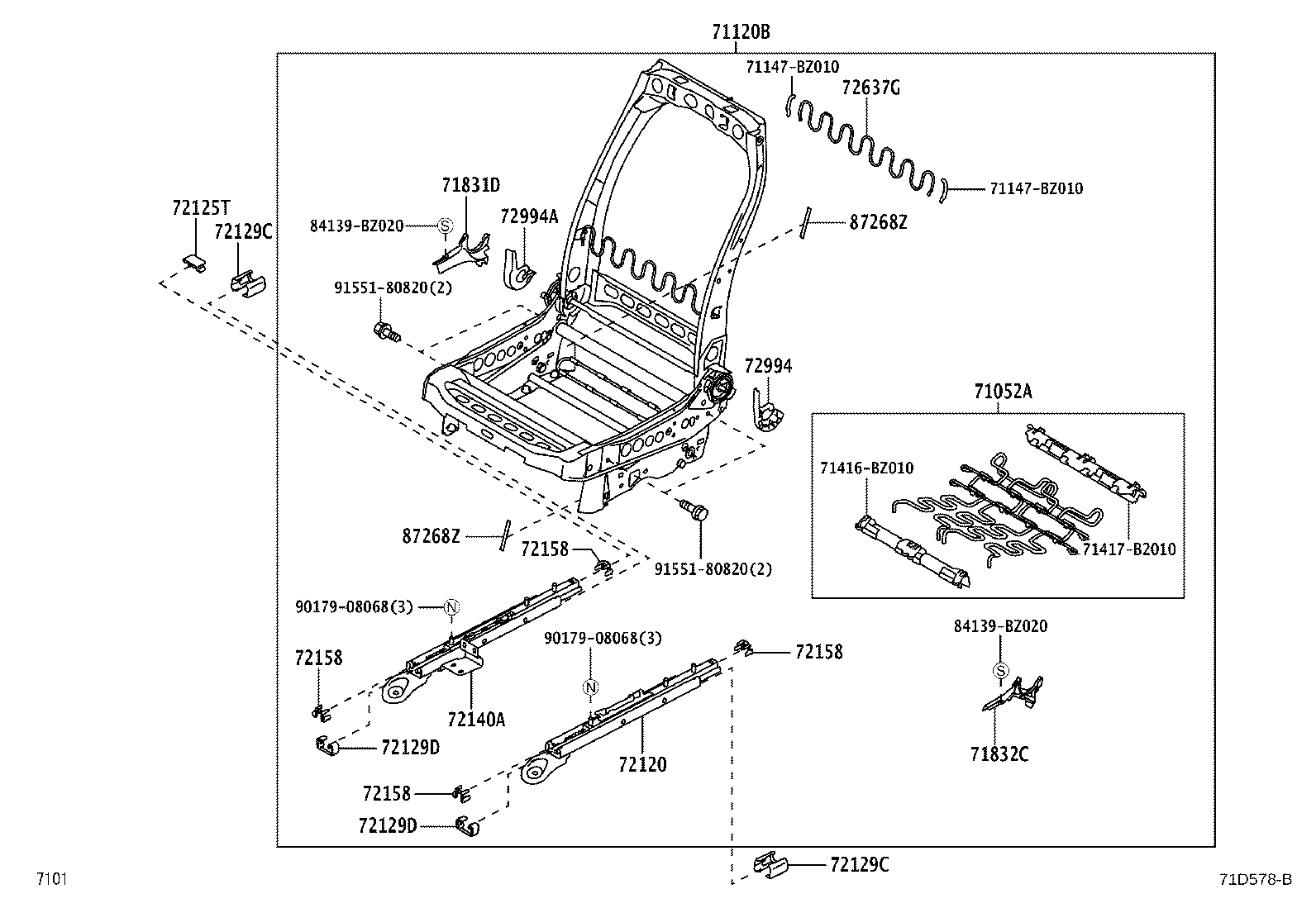

ILLUST NO. 2 OF 2(2104- )
Click highlighted areas on diagram
LH(SEAT FRAME)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-BZ010 |
A25# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-BZ270C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-BZ130C0 |
A25# BLACK,TRIM2# |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71831-BZ100C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-B1040 |
A25# |
1 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-B1030C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72129C - PROTECTOR, SEAT TRACK LOWER RAIL, NO.3 | ||||
| 72129-B1010C0 |
A25# BLACK,TRIM2# |
2 | ||
| 72129C - PROTECTOR, SEAT TRACK LOWER RAIL, NO.3 | ||||
| 72129-B1010C0 |
A25# BLACK,TRIM2# |
2 | ||
| 72129D - PROTECTOR, SEAT TRACK LOWER RAIL, NO.4 | ||||
| 72129-BZ100 |
A25# |
2 | ||
| 72129D - PROTECTOR, SEAT TRACK LOWER RAIL, NO.4 | ||||
| 72129-BZ100 |
A25# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-BZ270 |
A25# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-BZ100 |
A25# |
4 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 71441-BZ060 |
A25# |
1 | ||
| 72994 - COVER, FRONT SEAT BACK | ||||
| 72993-B2010C0 |
A25# BLACK,TRIM2# |
1 | ||
| 72994A - COVER, FRONT SEAT BACK | ||||
| 72994-B2010C0 |
A25# BLACK,TRIM2# |
1 | ||
| 87268Z - PROTECTOR | ||||
| 71695-BZ030 |
A25# |
2 | ||
| 87268Z - PROTECTOR | ||||
| 71695-BZ030 |
A25# |
2 | ||
| Common parts | ||||
| 71147-BZ010 | ||||
| 71416-BZ010 | ||||
| 71417-B2010 | ||||
| 84139-BZ020 | ||||
| 90179-08068 | ||||
| 91551-80820 | ||||
