A250RA-GBVVJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine 1KRVET
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )A250 ; (2104- )A251

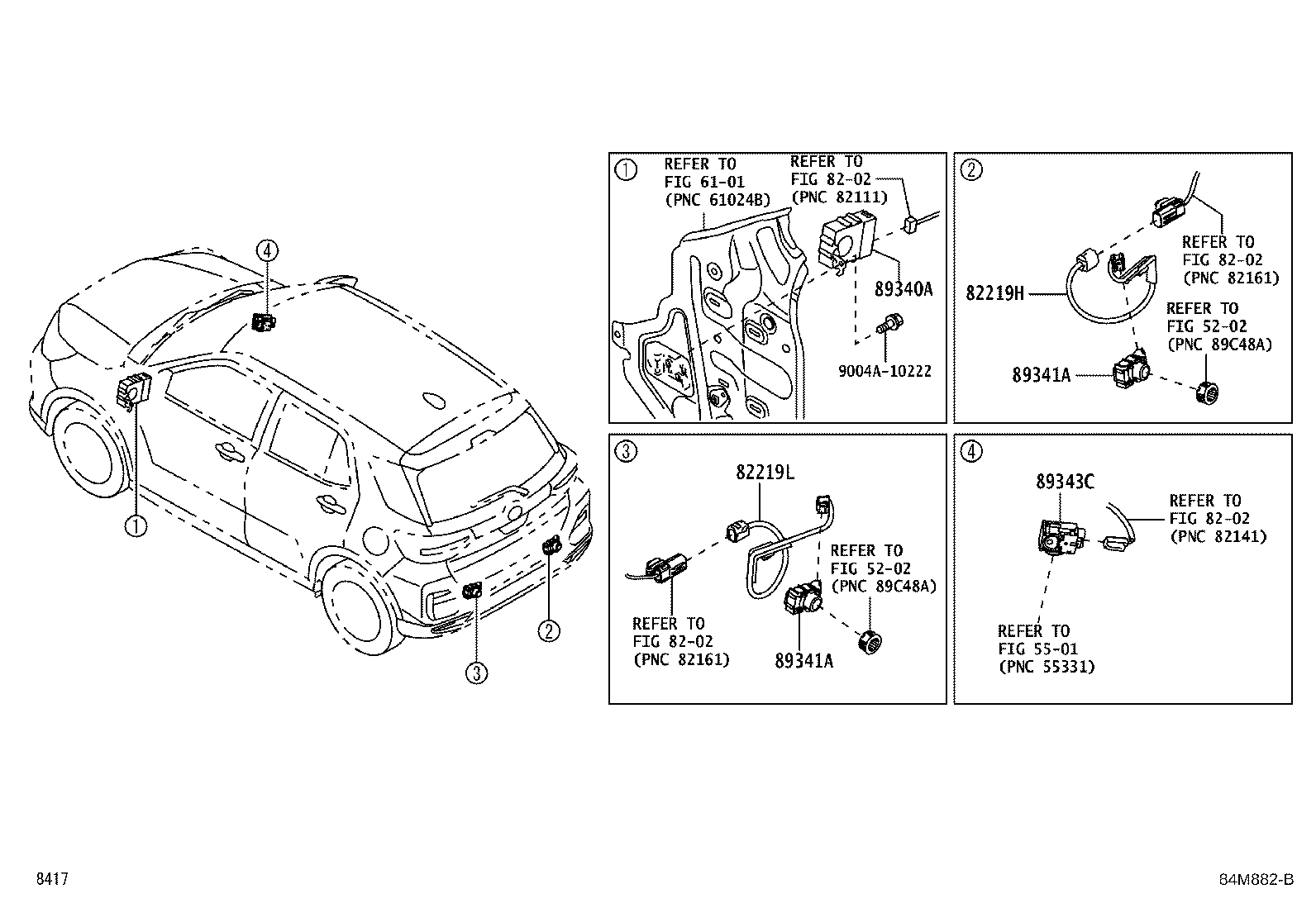

Click highlighted areas on diagram

diagram 5202 5202 5501 6101 8202 8202 8202 8202 82219H 82219L 89340A 89341A 89341A 89343C 9004A10222
Part # Description Qty Price
82219H - WIRE, SENSOR
82219-BZ140

A25#

L/RR FOG LAMP

 1
82219L - WIRE, SENSOR
82219-BZ150

A25#

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-BZ320

A25#

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-BZ350A0

A25#

WHITE,W09 ,XJ7

 2
89341-BZ350C0

A250..IDN

BLACK,1G3 ,B86 ,R40 ,S28 ,W09 ,X13 ,XJ7 ,XJ8 ,XJ9 ,XK1 ,XK4 ,Y13

 2
89341-BZ350F0

A25#

YELLOW SE.,XK1 ,Y13

 2
89341-BZ350B1

A25#

GRAY ME.,1G3

 2
89341-BZ350D0

A25#

RED,R40 ,XJ9

 2
89341-BZ350B0

A25#

SILVER ME.,S28 ,XK4

 2
89341-BZ350J0

A25#

TURQUOISE M.M.,B86 ,XJ8

 2
89341A - SENSOR, ULTRASONIC, NO.1
89341-BZ350A0

A25#

WHITE,W09 ,XJ7

 2
89341-BZ350C0

A250..IDN

BLACK,1G3 ,B86 ,R40 ,S28 ,W09 ,X13 ,XJ7 ,XJ8 ,XJ9 ,XK1 ,XK4 ,Y13

 2
89341-BZ350F0

A25#

YELLOW SE.,XK1 ,Y13

 2
89341-BZ350B1

A25#

GRAY ME.,1G3

 2
89341-BZ350D0

A25#

RED,R40 ,XJ9

 2
89341-BZ350B0

A25#

SILVER ME.,S28 ,XK4

 2
89341-BZ350J0

A25#

TURQUOISE M.M.,B86 ,XJ8

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

A25#

 1
Common parts
9004A-10222
Linked diagrams
5202
5501
6101
8202
