A250RA-GBVVJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine 1KRVET
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

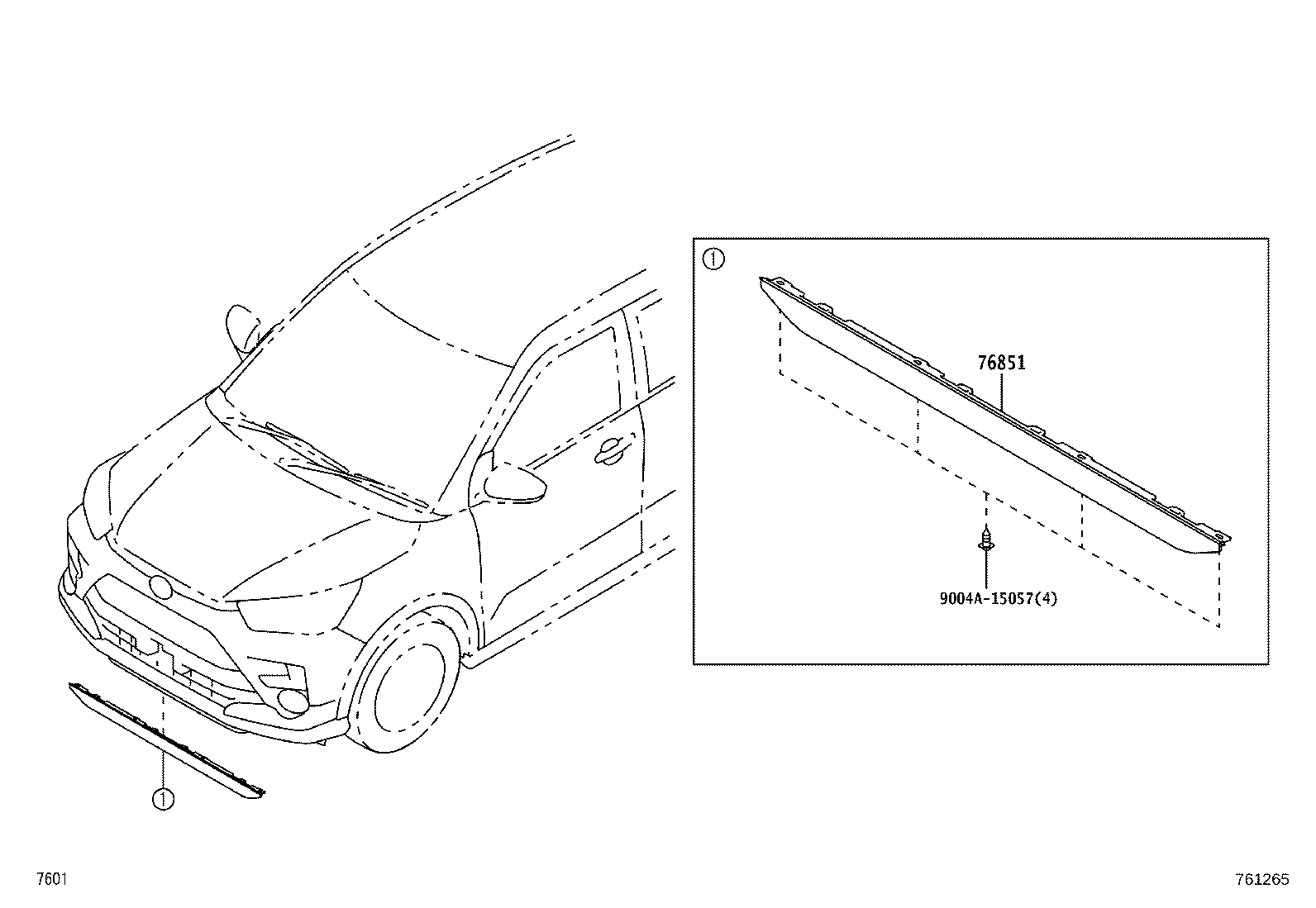

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

FRONT SPOILER

diagram 76851 9004A15057
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-BZ110

A25#

 1
Common parts
9004A-15057

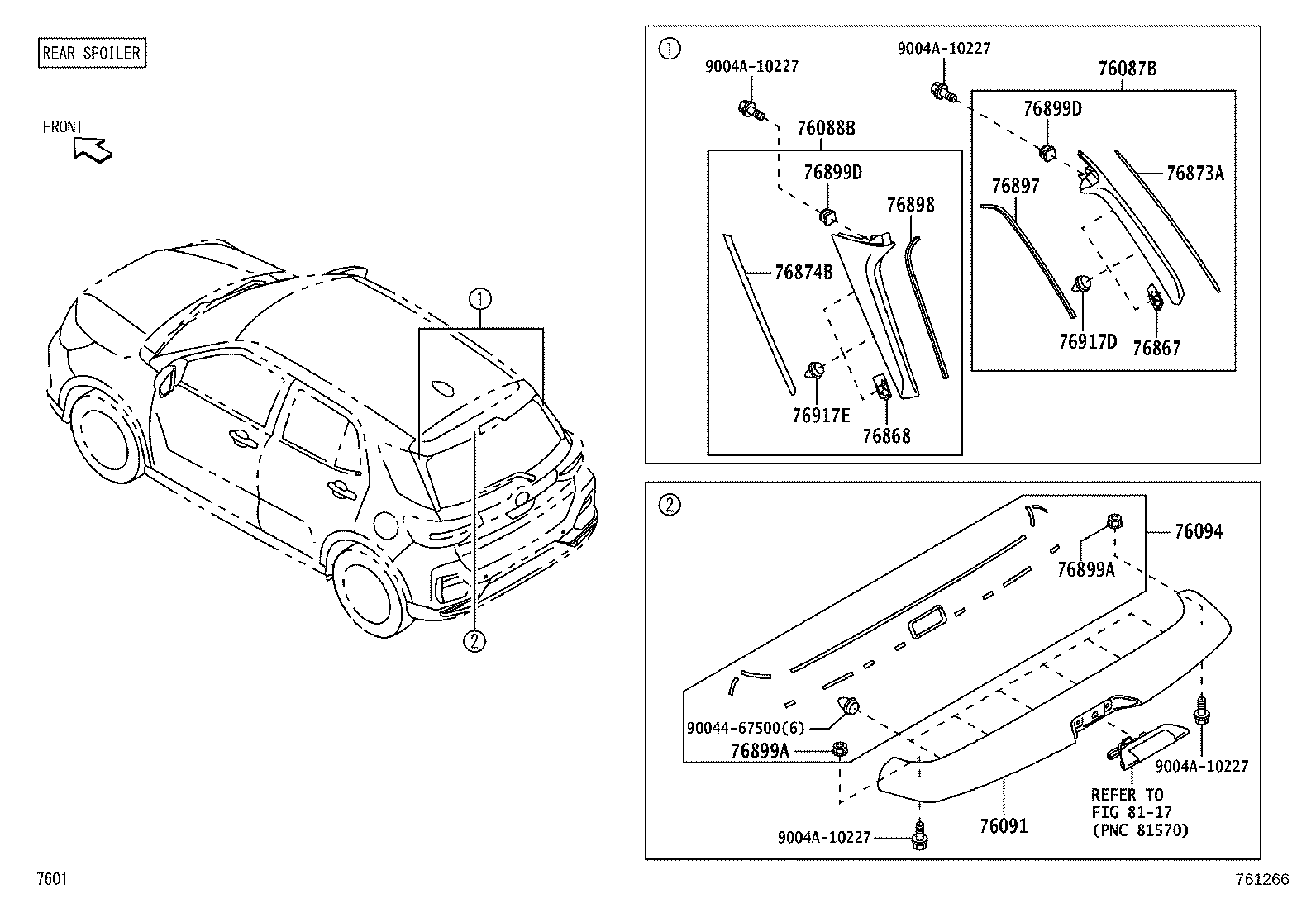

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

REAR SPOILER

diagram 76087B 76088B 76091 76094 76867 76868 76873A 76874B 76897 76898 76899A 76899A 76899D 76899D 76917D 76917E 8117 9004467500 9004A10227 9004A10227 9004A10227 9004A10227
Part # Description Qty Price
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-BZ060

A25#

 1
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-BZ050

A25#

 1
76091 - SPOILER SUB-ASSY, REAR UPPER
76091-BZ330

A25#

 1
76094 - SPOILER SET, RR
76094-BZ160

A25#

 1
76867 - RETAINER, REAR SPOILER SIDE, RH
76867-BZ040

A25#

 1
76868 - RETAINER, REAR SPOILER SIDE, LH
76868-BZ030

A25#

 1
76873A - PROTECTOR, REAR SPOILER, RH
76873-BZ030

A25#

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-BZ020

A25#

 1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76887-BZ110

A25#

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76887-BZ110

A25#

 1
76899A - NUT, REAR SPOILER
76899-B0010

A25#

 2
76899A - NUT, REAR SPOILER
76899-B0010

A25#

 2
76899D - NUT, REAR SPOILER, NO.1
76899-B0010

A25#

 2
76899D - NUT, REAR SPOILER, NO.1
76899-B0010

A25#

 2
76917D - CLIP
90044-67500

A25#

 3
76917E - CLIP
90044-67500

A25#

 3
Common parts
90044-67500
9004A-10227
Linked diagrams
8117
