A250RA-GBVVJ (2021)

Toyota Raize

Production Apr 2021 - Sep 9999
Engine 1KRVET
Transmission CVT 5D
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

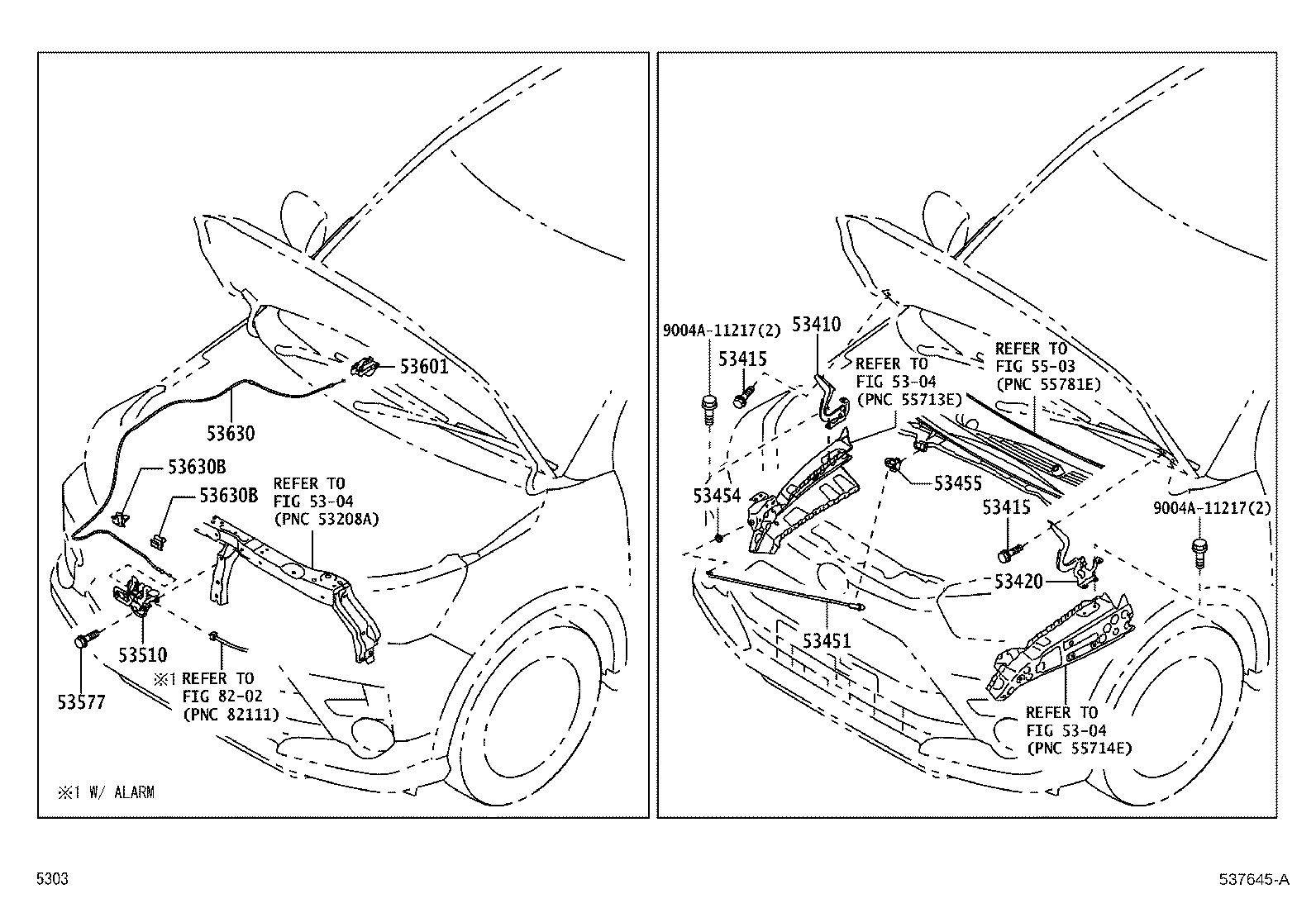

Click highlighted areas on diagram

RHD

diagram 5304 5304 5304 53410 53415 53415 53420 53451 53454 53455 53510 53577 53601 53630 53630B 53630B 5503 8202 9004A11217 9004A11217
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-BZ070

A25#

 1
53415 - BOLT, HOOD HINGE
9004A-11217

A25#

M6,L=14

 4
53415 - BOLT, HOOD HINGE
9004A-11217

A25#

M6,L=14

 4
53420 - HINGE ASSY, HOOD, LH
53402-BZ080

A25#

 1
53451 - ROD, HOOD SUPPORT
53440-BZ120

A25#

 1
53454 - CLIP, HOOD SUPPORT ROD
90044-80679

A25#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-BZ140

A25#

 1
53510 - LOCK ASSY, HOOD
53510-BZ300

A25#

 1
53577 - BOLT, HOOD LOCK
90041-05589

A25#

M6,L=12

 3
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-BZ030C0

A25#

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-BZ290

A25#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09043

A25#

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09043

A25#

 2
Common parts
9004A-11217
Linked diagrams
5304
5503
8202
