A250RA-GBVVJ (2021)
Toyota Raize

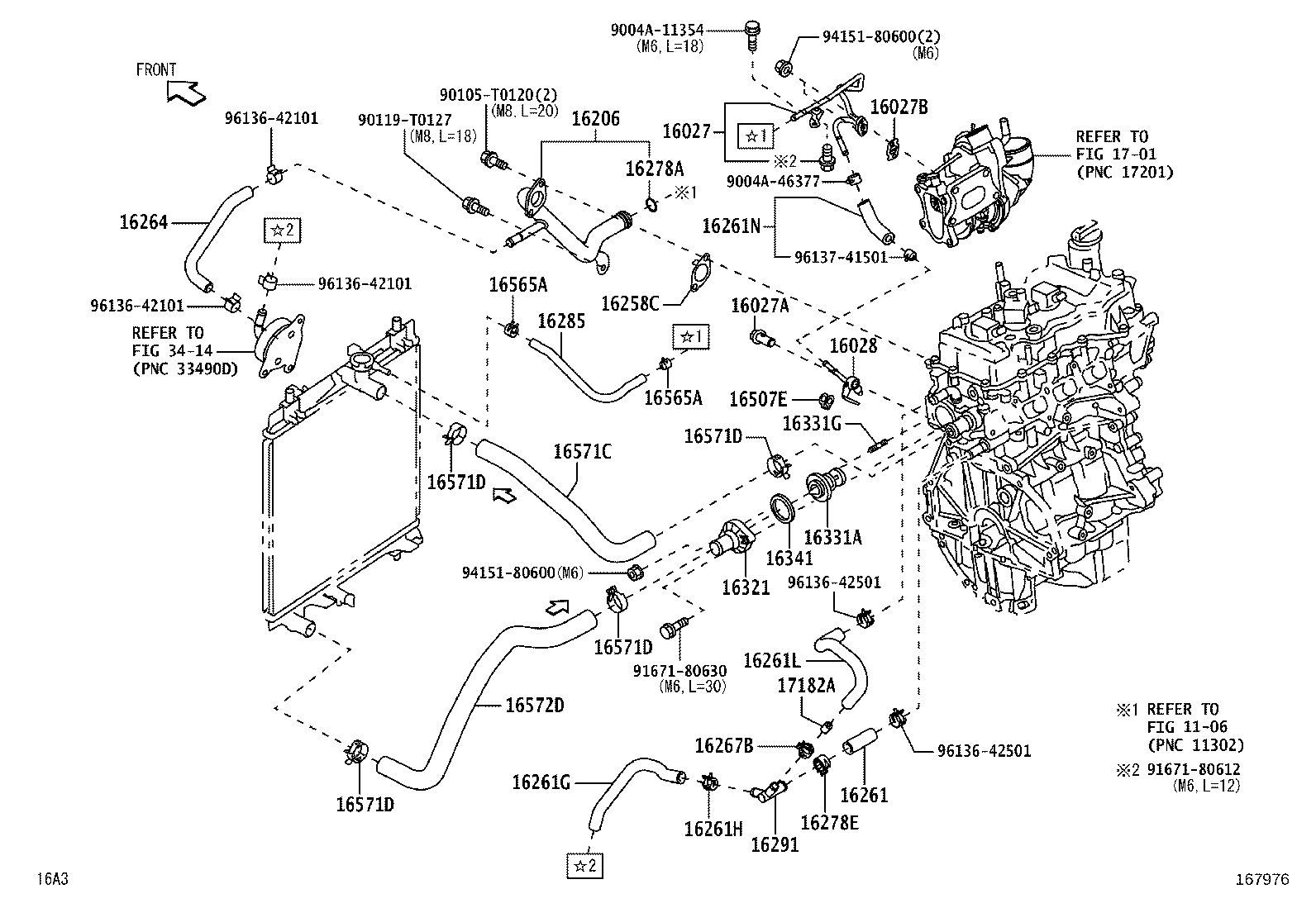

ILLUST NO. 2 OF 2(2104- )1KRVET..CVT
HOSE L/HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-BZ020 |
1KRVET..A250 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90044-01475 |
1KRVET..A250 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 16258-B2090 |
1KRVET..A250 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-BZ020 |
1KRVET..A250 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-BZ041 |
1KRVET..A250..CVT |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40021 |
1KRVET..A250 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ460 |
1KRVET..A250..CVT |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ580 |
1KRVET..A250..CVT |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42101 |
1KRVET..A250..CVT |
1 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-BZ620 |
1KRVET..A250..CVT |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16280-B1010 |
1KRVET..A250 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-BZ280 |
1KRVET..A250..CVT |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1KRVET..A250..CVT |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16258-40030 |
1KRVET..A250 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KRVET..A250..CVT |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-BZ010 |
1KRVET..A250 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-BZ140 |
1KRVET..A250..CVT |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRVET..A250 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03150 |
1KRVET..A250 *WAX 80-93 |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92132-80625 |
1KRVET..A250 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRVET..A250 |
1 | ||
| 16507E - GASKET | ||||
| 90044-30331 |
1KRVET..A250 |
1 | ||
| 16565A - CLIP | ||||
| 9004A-46377 |
1KRVET..A250 |
2 | ||
| 16565A - CLIP | ||||
| 9004A-46377 |
1KRVET..A250 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-BZ420 |
1KRVET..A250 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-53601 |
1KRVET..A250 |
4 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-53601 |
1KRVET..A250 |
4 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-53601 |
1KRVET..A250 |
4 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-53601 |
1KRVET..A250 |
4 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-BZ360 |
1KRVET..A250 |
1 | ||
| 17182A - ORIFICE, WATER | ||||
| 17182-BZ050 |
1KRVET..A250..CVT |
1 | ||
| Common parts | ||||
| 9004A-11354 | ||||
| 9004A-46377 | ||||
| 90105-T0120 | ||||
| 90119-T0127 | ||||
| 91671-80612 | ||||
| 91671-80630 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| 96136-42501 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 3414 | ||||

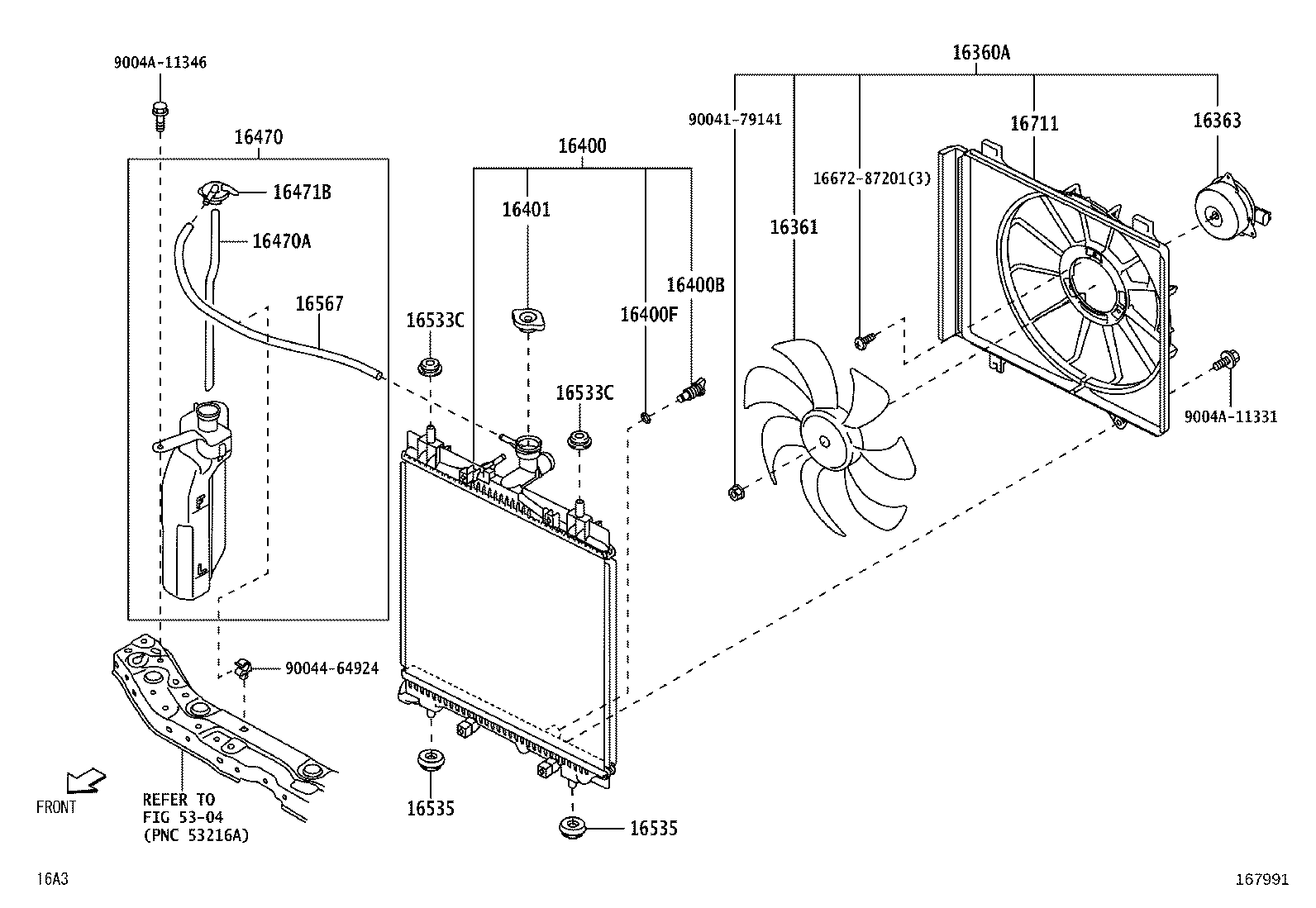

ILLUST NO. 1 OF 2(2104- )1KRVET ; (2104- )WAVE
(80W) RADIATOR RESERVE TANKU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ370 |
WAVE,1KRVET..A25# |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ140 |
WAVE,1KRVET..A25# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ150 |
WAVE,1KRVET..A25# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZB00 |
1KRVET..A250..IDN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
WAVE,1KRVET..A25# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
WAVE,1KRVET..A25# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ180 |
WAVE,1KRVET..A25# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ280 |
WAVE,1KRVET..A25# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ130 |
WAVE,1KRVET..A25# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16471-BZ110 |
WAVE,1KRVET..A25# |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 9004A-48017 |
WAVE,1KRVET..A25# |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 9004A-48017 |
WAVE,1KRVET..A25# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
WAVE,1KRVET..A25# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
WAVE,1KRVET..A25# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ120 |
WAVE,1KRVET..A25# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-BZ180 |
WAVE,1KRVET..A25# |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 90041-79141 | ||||
| 90044-64924 | ||||
| 9004A-11331 | ||||
| 9004A-11346 | ||||
| Linked diagrams | ||||
| 5304 | ||||
