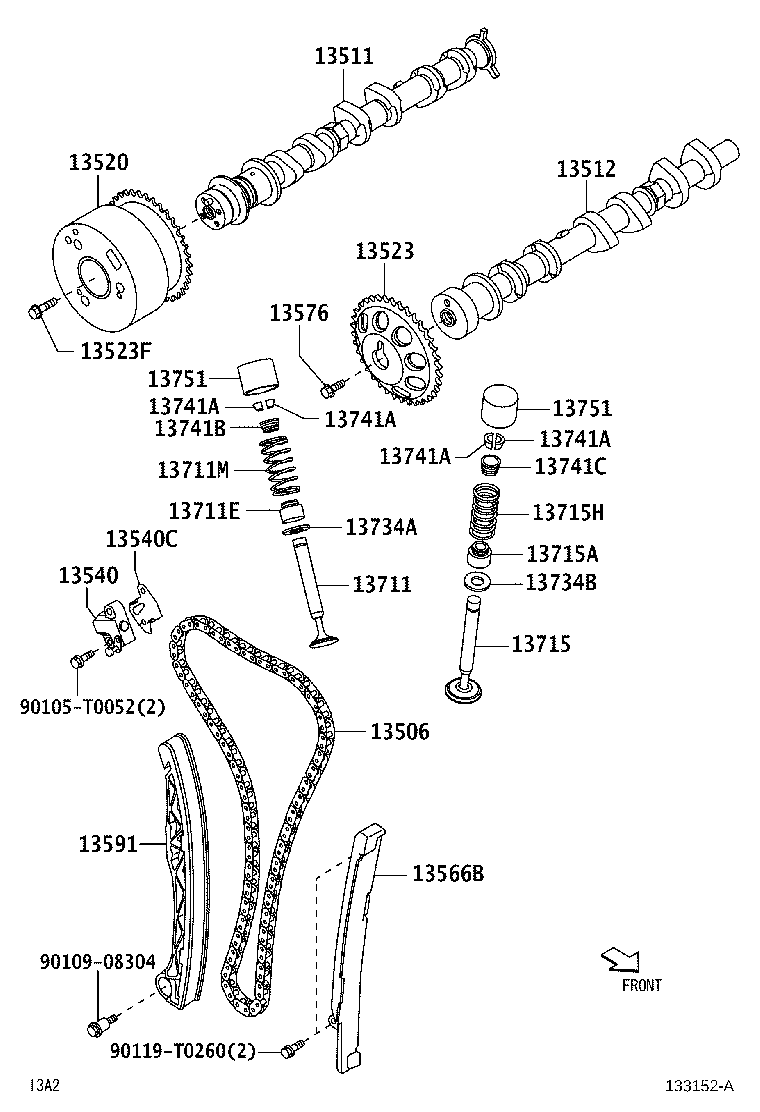

A250RA-GBVVJ (2021)
Toyota Raize
(2104- )1KRVET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-40020 |
1KRVET..A250 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-B1040 |
1KRVET..A250 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-B1010 |
1KRVET..A250 |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-B1031 |
1KRVET..A250 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
1KRVET..A250 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90105-10461 |
1KRVET..A250 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-BZ030 |
1KRVET..A250 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-40010 |
1KRVET..A250 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-40031 |
1KRVET..A250 |
1 | ||
| 13576 - BOLT, CAMSHAFT TIMING GEAR | ||||
| 90119-10889 |
1KRVET..A250 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-40041 |
1KRVET..A250 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-40050 |
1KRVET..A250 |
6 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90048-12028 |
1KRVET..A250 |
6 | ||
| 13711M - SPRING, COMPRESSION(FOR INTAKE VALVE) | ||||
| 90501-25069 |
1KRVET..A250 |
6 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-40050 |
1KRVET..A250 |
6 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90048-12027 |
1KRVET..A250 |
6 | ||
| 13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE) | ||||
| 90501-25069 |
1KRVET..A250 |
6 | ||
| 13734A - SEAT, INTAKE VALVE SPRING | ||||
| 13734-40010 |
1KRVET..A250 |
6 | ||
| 13734B - SEAT, EXHAUST VALVE SPRING | ||||
| 13734-40010 |
1KRVET..A250 |
6 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRVET..A250 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRVET..A250 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRVET..A250 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRVET..A250 |
24 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-22021 |
1KRVET..A250 |
6 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-22021 |
1KRVET..A250 |
6 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-BZ360 |
1KRVET..A250 T=5.16 |
12 | ||
| 13751-BZ380 |
1KRVET..A250 T=5.20 |
12 | ||
| 13751-BZ390 |
1KRVET..A250 T=5.22 |
12 | ||
| 13751-BZ430 |
1KRVET..A250 T=5.30 |
12 | ||
| 13751-BZ440 |
1KRVET..A250 T=5.32 |
12 | ||
| 13751-BZ490 |
1KRVET..A250 T=5.42 |
12 | ||
| 13751-BZ410 |
1KRVET..A250 T=5.26 |
12 | ||
| 13751-BZ370 |
1KRVET..A250 T=5.18 |
12 | ||
| 13751-BZ350 |
1KRVET..A250 T=5.14 |
12 | ||
| 13751-BZ460 |
1KRVET..A250 T=5.36 |
12 | ||
| 13751-BZ400 |
1KRVET..A250 T=5.24 |
12 | ||
| 13751-BZ450 |
1KRVET..A250 T=5.34 |
12 | ||
| 13751-BZ470 |
1KRVET..A250 T=5.38 |
12 | ||
| 13751-BZ340 |
1KRVET..A250 T=5.12 |
12 | ||
| 13751-BZ590 |
1KRVET..A250 T=5.62 |
12 | ||
| 13751-BZ420 |
1KRVET..A250 T=5.28 |
12 | ||
| 13751-BZ480 |
1KRVET..A250 T=5.40 |
12 | ||
| 13751-BZ540 |
1KRVET..A250 T=5.52 |
12 | ||
| 13751-BZ610 |
1KRVET..A250 T=5.66 |
12 | ||
| 13751-BZ600 |
1KRVET..A250 T=5.64 |
12 | ||
| 13751-BZ560 |
1KRVET..A250 T=5.56 |
12 | ||
| 13751-BZ520 |
1KRVET..A250 T=5.48 |
12 | ||
| 13751-BZ550 |
1KRVET..A250 T=5.54 |
12 | ||
| 13751-BZ500 |
1KRVET..A250 T=5.44 |
12 | ||
| 13751-BZ580 |
1KRVET..A250 T=5.60 |
12 | ||
| 13751-BZ570 |
1KRVET..A250 T=5.58 |
12 | ||
| 13751-BZ510 |
1KRVET..A250 T=5.46 |
12 | ||
| 13751-BZ530 |
1KRVET..A250 T=5.50 |
12 | ||
| 13751-BZ620 |
1KRVET..A250 T=5.68 |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-BZ360 |
1KRVET..A250 T=5.16 |
12 | ||
| 13751-BZ380 |
1KRVET..A250 T=5.20 |
12 | ||
| 13751-BZ390 |
1KRVET..A250 T=5.22 |
12 | ||
| 13751-BZ430 |
1KRVET..A250 T=5.30 |
12 | ||
| 13751-BZ440 |
1KRVET..A250 T=5.32 |
12 | ||
| 13751-BZ490 |
1KRVET..A250 T=5.42 |
12 | ||
| 13751-BZ410 |
1KRVET..A250 T=5.26 |
12 | ||
| 13751-BZ370 |
1KRVET..A250 T=5.18 |
12 | ||
| 13751-BZ350 |
1KRVET..A250 T=5.14 |
12 | ||
| 13751-BZ460 |
1KRVET..A250 T=5.36 |
12 | ||
| 13751-BZ400 |
1KRVET..A250 T=5.24 |
12 | ||
| 13751-BZ450 |
1KRVET..A250 T=5.34 |
12 | ||
| 13751-BZ470 |
1KRVET..A250 T=5.38 |
12 | ||
| 13751-BZ340 |
1KRVET..A250 T=5.12 |
12 | ||
| 13751-BZ590 |
1KRVET..A250 T=5.62 |
12 | ||
| 13751-BZ420 |
1KRVET..A250 T=5.28 |
12 | ||
| 13751-BZ480 |
1KRVET..A250 T=5.40 |
12 | ||
| 13751-BZ540 |
1KRVET..A250 T=5.52 |
12 | ||
| 13751-BZ610 |
1KRVET..A250 T=5.66 |
12 | ||
| 13751-BZ600 |
1KRVET..A250 T=5.64 |
12 | ||
| 13751-BZ560 |
1KRVET..A250 T=5.56 |
12 | ||
| 13751-BZ520 |
1KRVET..A250 T=5.48 |
12 | ||
| 13751-BZ550 |
1KRVET..A250 T=5.54 |
12 | ||
| 13751-BZ500 |
1KRVET..A250 T=5.44 |
12 | ||
| 13751-BZ580 |
1KRVET..A250 T=5.60 |
12 | ||
| 13751-BZ570 |
1KRVET..A250 T=5.58 |
12 | ||
| 13751-BZ510 |
1KRVET..A250 T=5.46 |
12 | ||
| 13751-BZ530 |
1KRVET..A250 T=5.50 |
12 | ||
| 13751-BZ620 |
1KRVET..A250 T=5.68 |
12 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90109-08304 | ||||
| 90119-T0260 | ||||
