SCP100R-CHXNKH (2009)
Toyota Ractis
Production
Oct 2009
-
Aug 2010
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

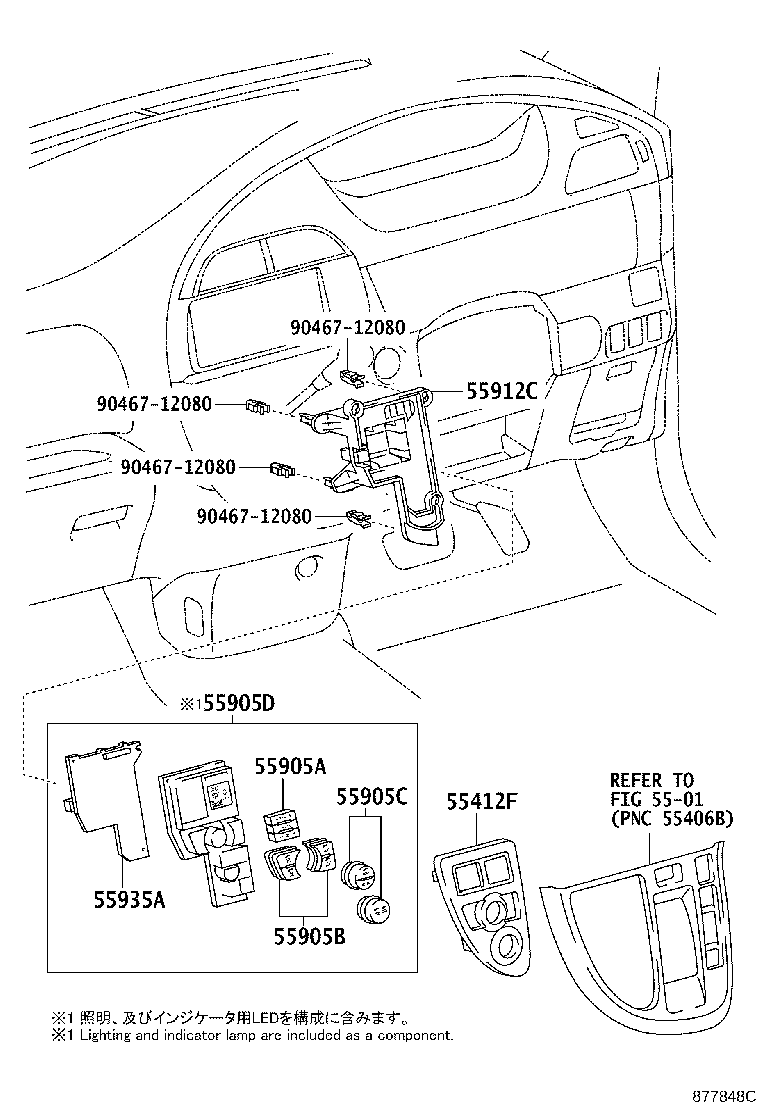

ILLUST NO. 1 OF 3(0910- )
Click highlighted areas on diagram
CONTROL PANEL---AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55410-52120 |
SCP100 L PACKAGE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52430 |
SCP100 L PACKAGE |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52440 |
SCP100 L PACKAGE |
1 | ||
| 55903-52130 |
SCP100 |
1 | ||
| 55903-52130 |
SCP100 L PACKAGE |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-52450 |
SCP100 L PACKAGE |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-52490 |
SCP100 L PACKAGE |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-52100 |
SCP100 L PACKAGE |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-52100 |
SCP100 L PACKAGE |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 5501 | ||||

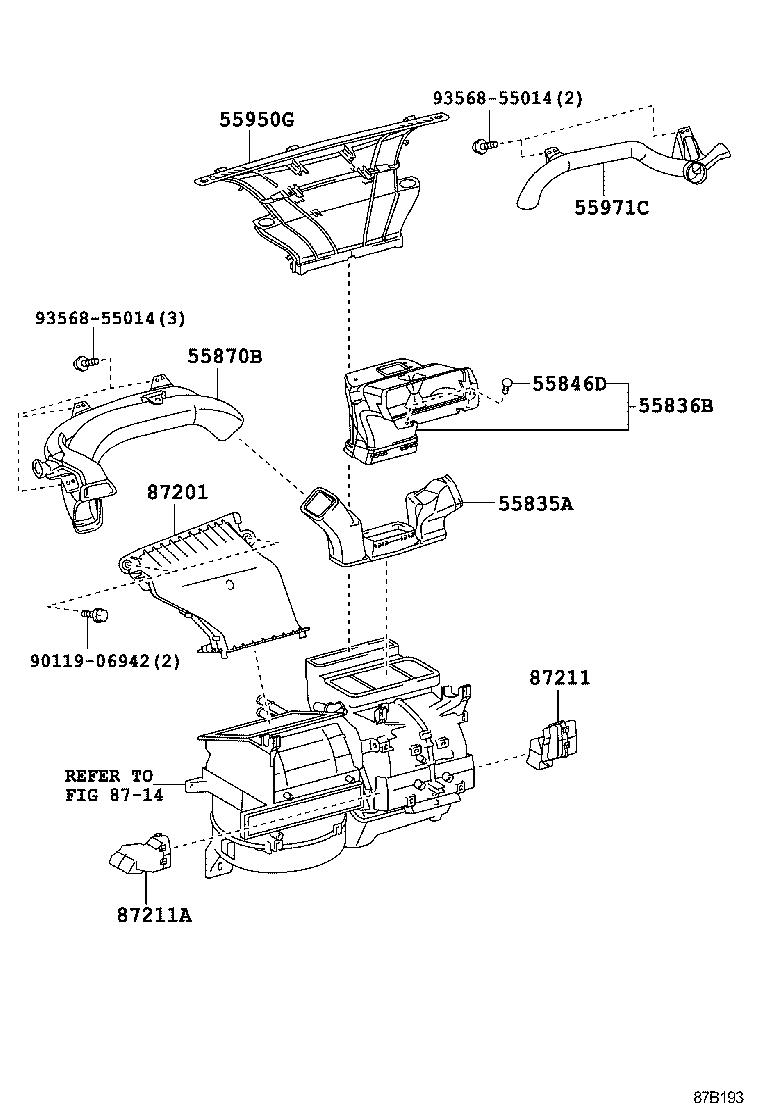

ILLUST NO. 2 OF 3(0910- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-52040 |
SCP100 |
1 | ||
| 55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2 | ||||
| 55836-52040 |
SCP100 |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05162C0 |
SCP100 BLACK |
2 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-52030 |
SCP100 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52130 |
SCP100 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-52040 |
SCP100 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52060 |
SCP100 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52010 |
SCP100 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52020 |
SCP100 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(0910- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-47021 |
SCP100 L PACKAGE |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
SCP100 L PACKAGE |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
SCP100 |
1 | ||

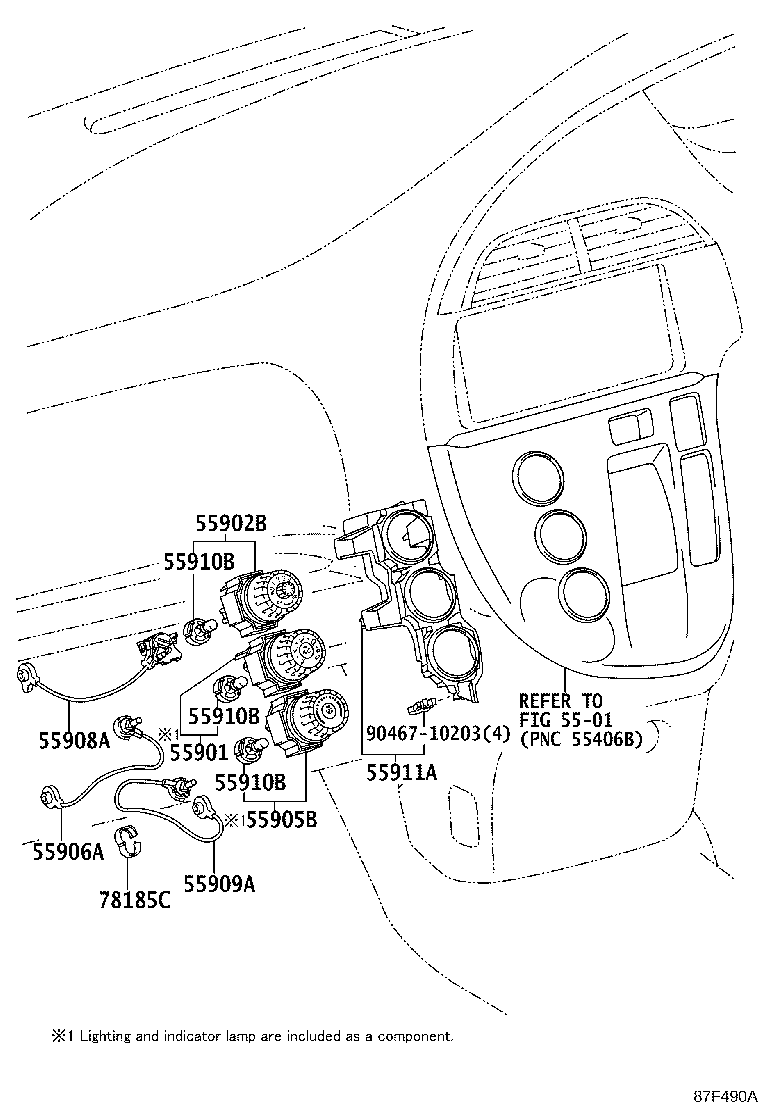

ILLUST NO. 1 OF 3(0910- )
Click highlighted areas on diagram
CONTROL PANEL---MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52180 |
SCP100 |
1 | ||
| 55901-52180 |
SCP100 L PACKAGE |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-52050 |
SCP100 L PACKAGE |
1 | ||
| 55902-52050 |
SCP100 |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52440 |
SCP100 L PACKAGE |
1 | ||
| 55903-52130 |
SCP100 |
1 | ||
| 55903-52130 |
SCP100 L PACKAGE |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
SCP100 |
1 | ||
| 55906-52132 |
SCP100 L PACKAGE |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
SCP100 |
1 | ||
| 55908-52130 |
SCP100 L PACKAGE |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
SCP100 L PACKAGE |
1 | ||
| 55909-52120 |
SCP100 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
SCP100 L PACKAGE |
1 | ||
| 90010-01113 |
SCP100 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
SCP100 L PACKAGE |
1 | ||
| 90010-01113 |
SCP100 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
SCP100 L PACKAGE |
1 | ||
| 90010-01113 |
SCP100 |
1 | ||
| 55911A - BASE, HEATER CONTROL | ||||
| 55911-52010 |
SCP100 |
1 | ||
| 78185C - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78185-20080 |
SCP100 |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||
