SCP100R-CHXNKH (2009)
Toyota Ractis
Production
Oct 2009
-
Aug 2010
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0910- )

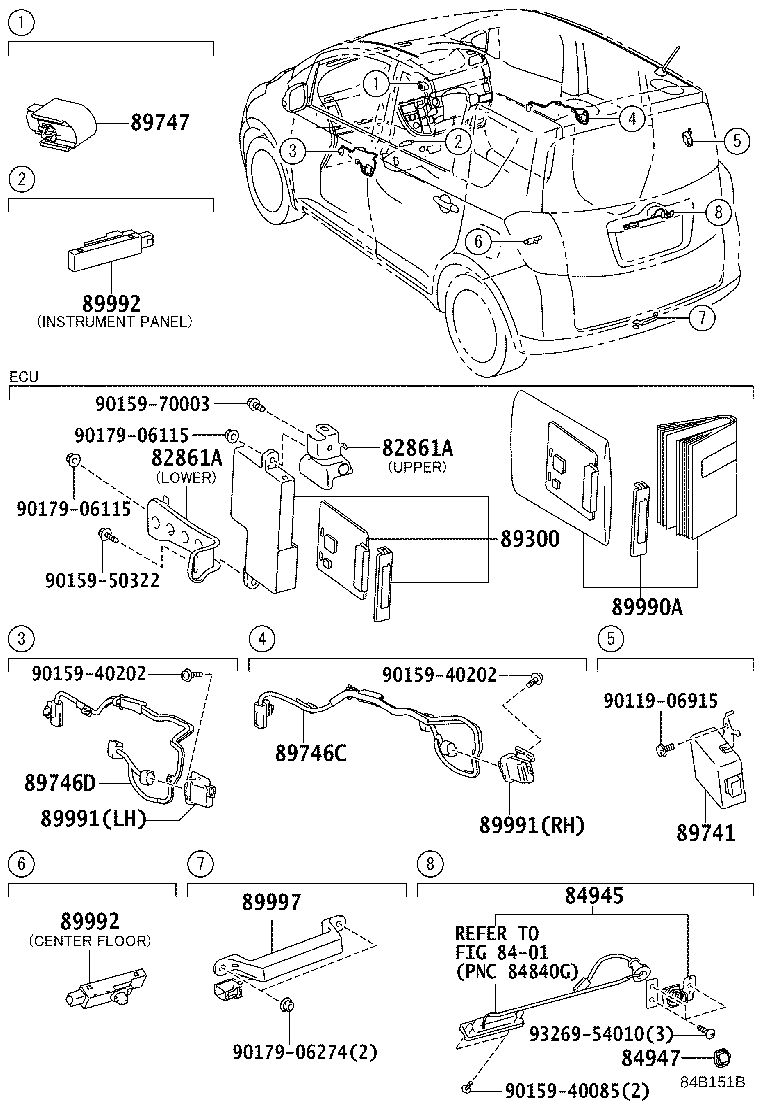

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52020 |
SCP100 L PACKAGE,LOWER |
1 | ||
| 82861-52010 |
SCP100 L PACKAGE,UPPER |
1 | ||
| 82861A - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-52020 |
SCP100 L PACKAGE,LOWER |
1 | ||
| 82861-52010 |
SCP100 L PACKAGE,UPPER |
1 | ||
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84905-52030 |
SCP100 L PACKAGE |
1 | ||
| 84947 - COVER, DOOR ELECTRICAL KEY SWITCH | ||||
| 84947-50010 |
SCP100 L PACKAGE |
1 | ||
| 89300 - BOX ASSY, ECU AGGREGATION | ||||
| 89300-52120 |
SCP100 L PACKAGE |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-52200 |
SCP100 L PACKAGE |
1 | ||
| 89741-52270 |
SCP100 L PACKAGE |
1 | ||
| 89741-52270 |
SCP100 |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-52080 |
SCP100 L PACKAGE |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-52090 |
SCP100 L PACKAGE |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
SCP100 L PACKAGE |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52230 |
SCP100 L PACKAGE |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
SCP100 L PACKAGE,LH |
1 | ||
| 89991-30040 |
SCP100 L PACKAGE,RH |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30050 |
SCP100 L PACKAGE,LH |
1 | ||
| 89991-30040 |
SCP100 L PACKAGE,RH |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
SCP100 L PACKAGE,CENTER FLOOR |
1 | ||
| 89992-52010 |
SCP100 L PACKAGE,INSTRUMENT PANEL |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
SCP100 L PACKAGE,CENTER FLOOR |
1 | ||
| 89992-52010 |
SCP100 L PACKAGE,INSTRUMENT PANEL |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-52010 |
SCP100 L PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-40085 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 93269-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
