SCP100R-CHXNKH (2009)
Toyota Ractis
Production
Oct 2009
-
Aug 2010
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0910- )

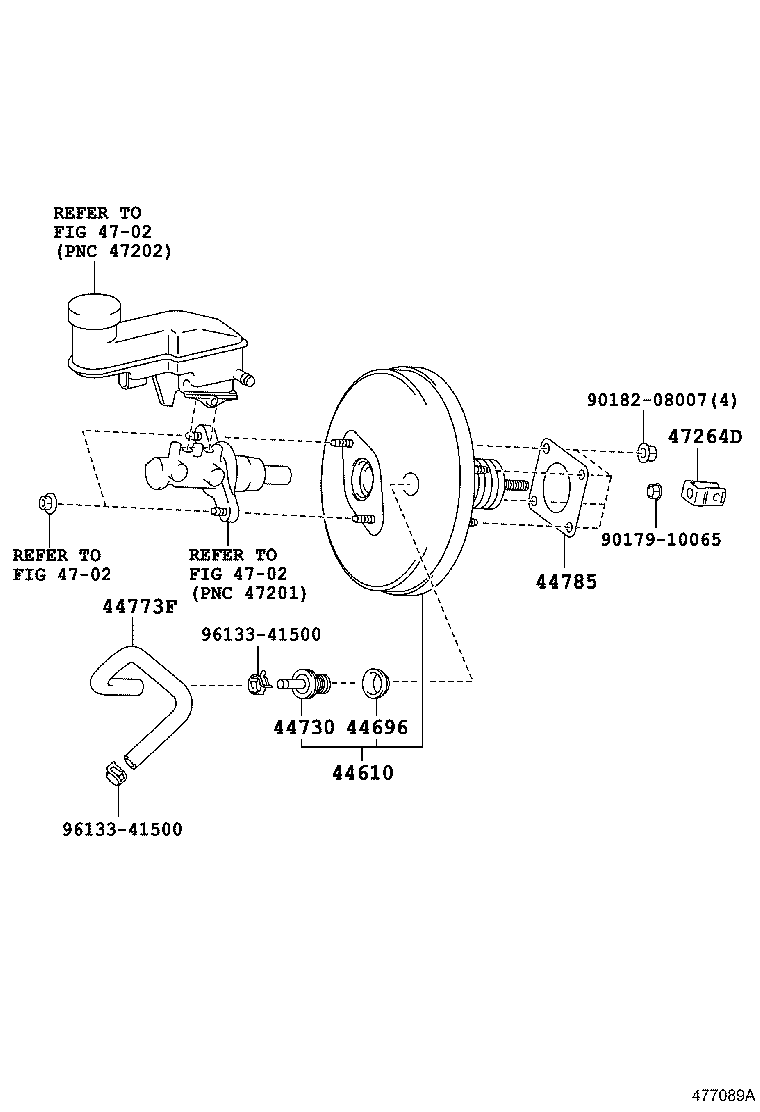

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52480 |
SCP100 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
SCP100 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-28030 |
SCP100 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-52180 |
SCP100 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
SCP100 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
SCP100 |
1 | ||
| Common parts | ||||
| 90179-10065 | ||||
| 90182-08007 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
