SCP100R-CHXNKH (2009)
Toyota Ractis
Production
Oct 2009
-
Aug 2010
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0910- )

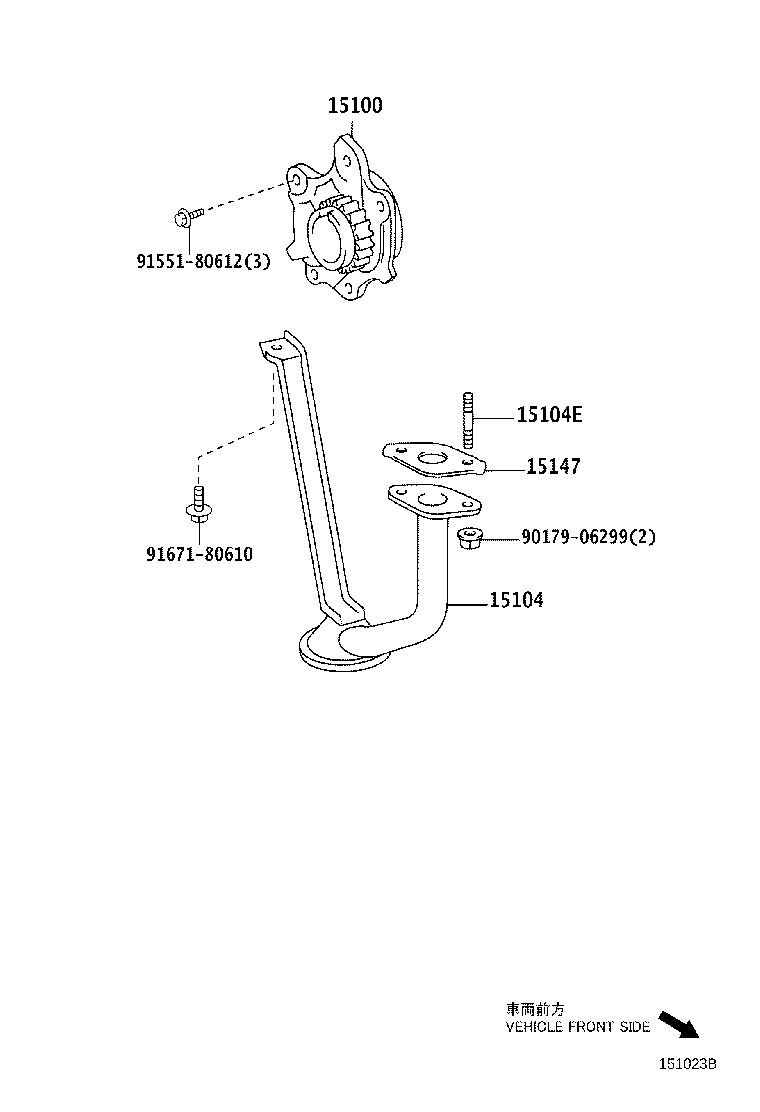

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-23040 |
2SZFE..SCP100 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-23070 |
2SZFE..SCP100 |
1 | ||
| 15104E - BOLT, STUD(FOR OIL STRAINER) | ||||
| 92122-B0614 |
2SZFE..SCP100 |
2 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-23020 |
2SZFE..SCP100 |
1 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 91551-80612 | ||||
| 91671-80610 | ||||
