NCP120R-CHXXKH (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

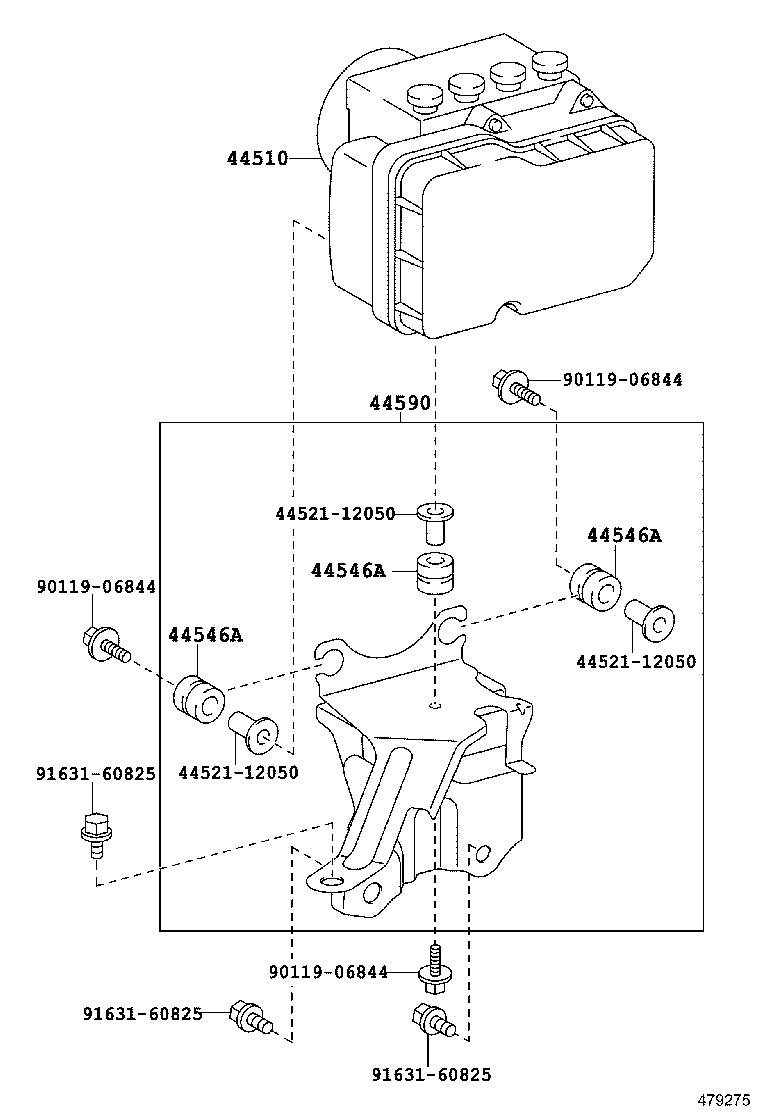

ILLUST NO. 2 OF 2(1405- )

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52D30

NCP120

 1
44050-52K83

NCP120

 1
44050-52K84

NCP120

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP120

 3
44546-12110

NCP120

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP120

 3
44546-12110

NCP120

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP120

 3
44546-12110

NCP120

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52180

NCP120

 1
44590-52230

NCP120

 1
Common parts
44521-12050
90119-06844
91631-60825

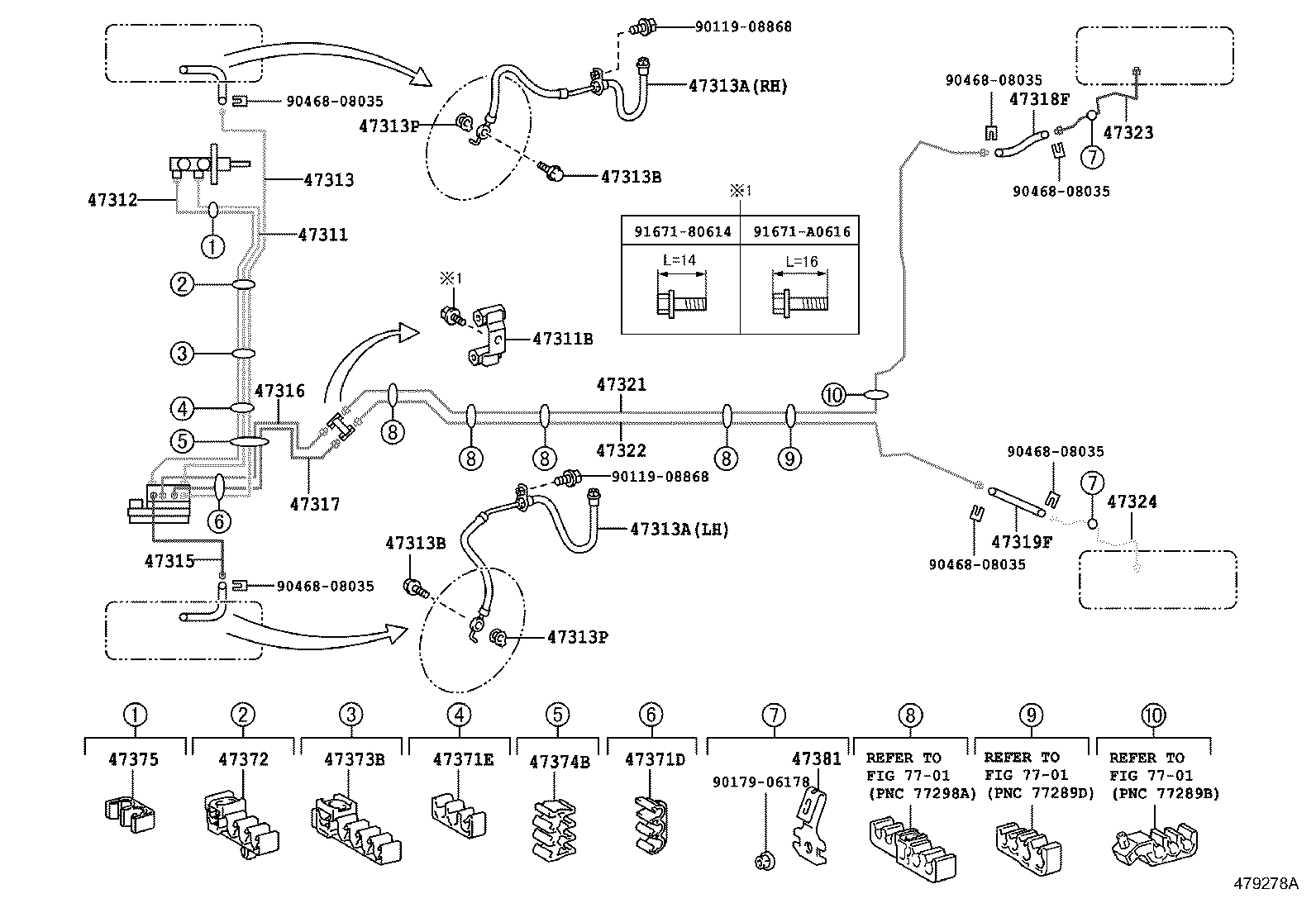

ILLUST NO. 1 OF 2(1405- )

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371D 47371E 47372 47373B 47374B 47375 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470

NCP120

 1
47311-52610

NCP120

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP120

 1
90412-10260

NCP120

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52430

NCP120

 1
47312-52420

NCP120

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52231

NCP120

 1
47313-52220

NCP120

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E08

NCP120

LH

 1
90947-02H36

NCP120

LH

 1
90947-02H35

NCP120

RH

 1
90947-02E07

NCP120

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E08

NCP120

LH

 1
90947-02H36

NCP120

LH

 1
90947-02H35

NCP120

RH

 1
90947-02E07

NCP120

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP120

 2
90401-10058

NCP120

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP120

 2
90401-10058

NCP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP120

 2
47389-50020

NCP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP120

 2
47389-50020

NCP120

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52220

NCP120

 1
47315-52231

NCP120

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52191

NCP120

 1
47316-52150

NCP120

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150

NCP120

 1
47317-52191

NCP120

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP120

 1
90947-02H31

NCP120

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H32

NCP120

 1
90947-02E10

NCP120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NCP120

 1
47321-52321

NCP120

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NCP120

 1
47322-52301

NCP120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NCP120

 1
47323-52131

NCP120

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52121

NCP120

 1
47324-52120

NCP120

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D92

NCP120

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D93

NCP120

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D94

NCP120

 1
90949-01D02

NCP120

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D83

NCP120

 1
90949-01D97

NCP120

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D98

NCP120

 1
90949-01969

NCP120

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00899

NCP120

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP120

 2
47381-52020

NCP120

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701
