NCP120R-CHXXKH (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

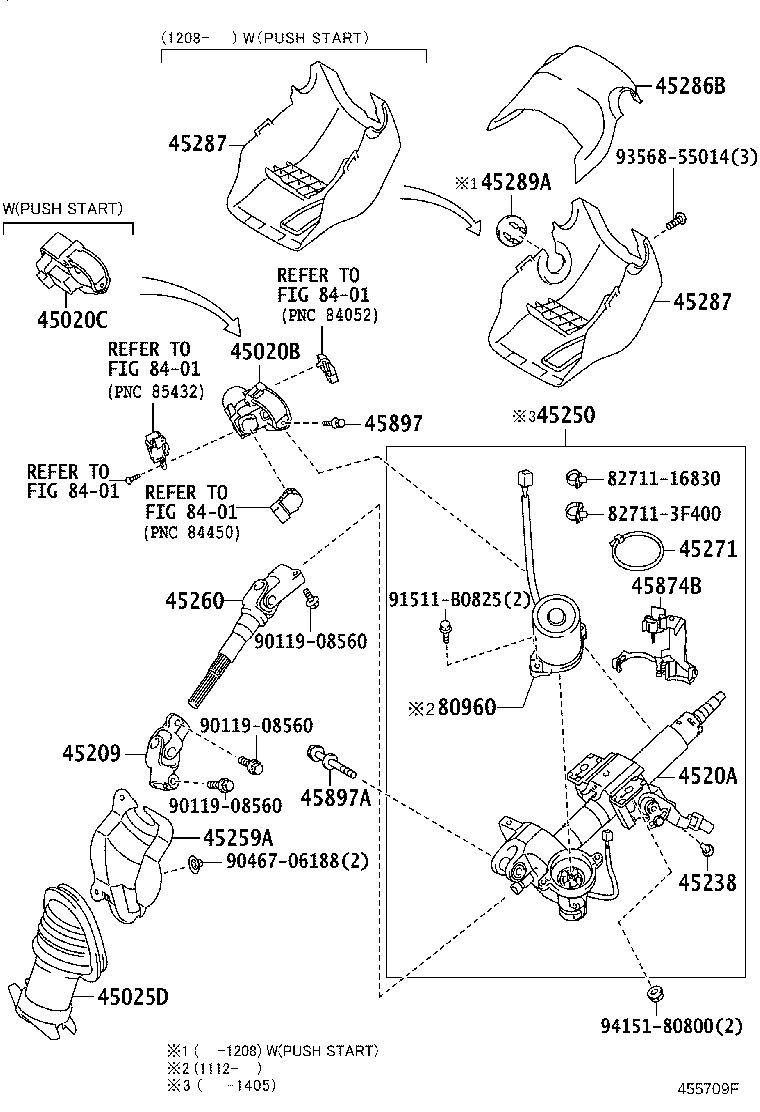

Click highlighted areas on diagram

diagram 45020B 45020C 45025D 45209 4520A 45238 45250 45259A 45260 45271 45286B 45287 45287 45289A 45874B 45897 45897A 80960 8271116830 827113F400 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046706188 91511B0825 9356855014 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-52100

NCP120..TERRA

 1
45280-52100

NCP120..TERRA

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140

NCP120

 1
45025-52170

NCP120

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52050

NCP120

 1
45209-52050

NCP120

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-52132

NCP120..TERRA

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

NCP120

 1
45250 - COLUMN ASSY, STEERING
45250-52792

NCP120..TERRA

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52010

NCP120

 1
45259-52010

NCP120

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52201

NCP120

 1
45260-52201

NCP120

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040

NCP120

 1
45286B - COVER, STEERING COLUMN, UPR
45286-52160C0

NCP120..TERRA

BLACK,TRIM2#

 1
45286-52160C0

NCP120..TERRA

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-52190C0

NCP120..TERRA

BLACK,TRIM2#

 1
45287-52190C0

NCP120..TERRA

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-52190C0

NCP120..TERRA

BLACK,TRIM2#

 1
45287-52190C0

NCP120..TERRA

BLACK,TRIM2#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-52040

NCP120

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP120

 1
45897-12020

NCP120

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

NCP120

 1
90119-10980

NCP120

 1
80960 - MOTOR ASSY, POWER STEERING
80960-52110

NCP120

 1
Common parts
82711-16830
82711-3F400
90119-08560
90467-06188
91511-B0825
93568-55014
94151-80800
Linked diagrams
8401
