NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1011- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

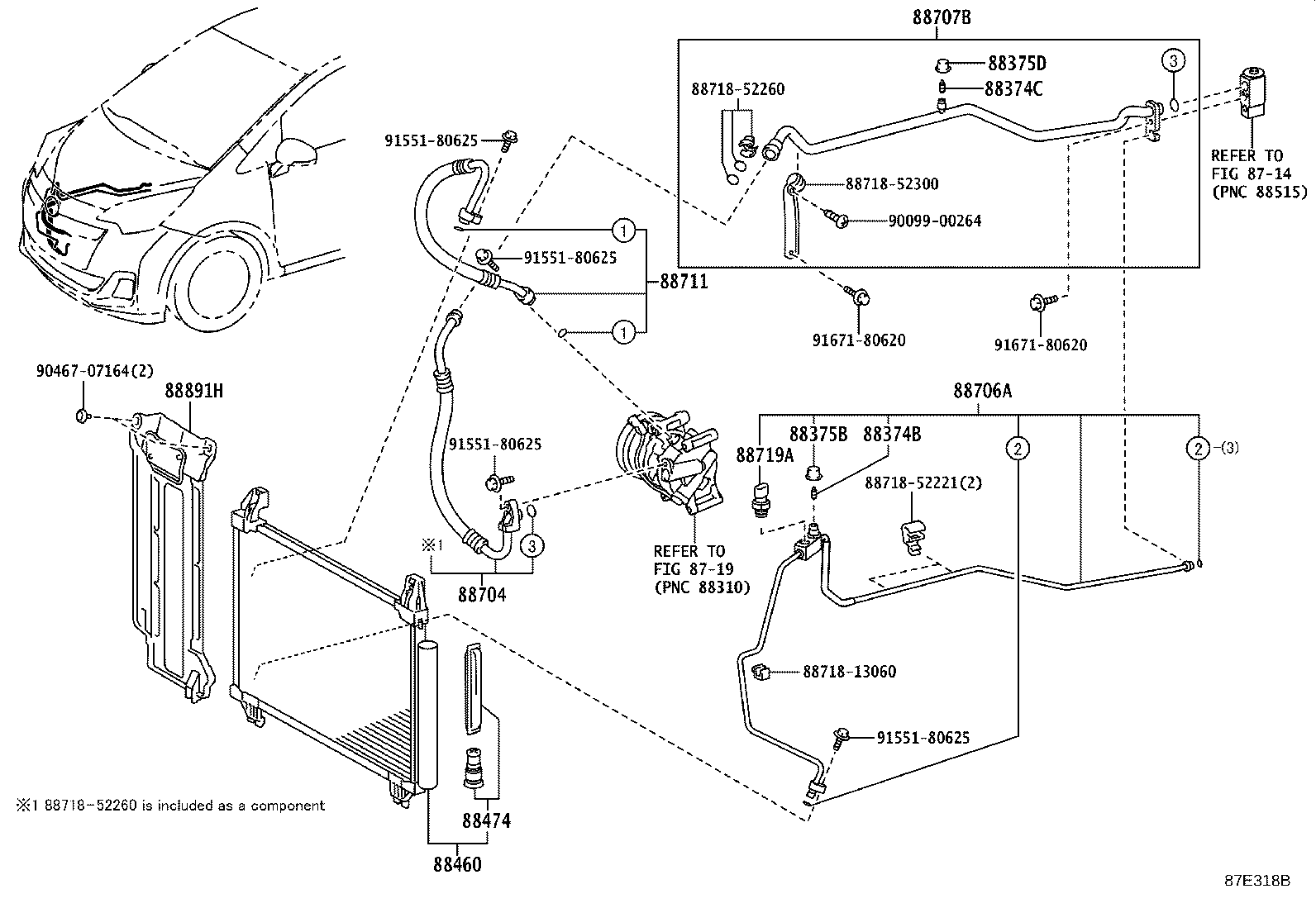

ILLUST NO. 1 OF 2(1011-1405)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP120 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP120 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP120 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP120 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52130 |
NCP120 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
NCP120 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-52230 |
NCP120 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52540 |
NCP120 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-52300 |
NCP120 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52380 |
NCP120 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NCP120 |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52100 |
NCP120 |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 88718-52260 | ||||
| 88718-52300 | ||||
| 90099-00264 | ||||
| 90467-07164 | ||||
| 91551-80625 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
