NCP120R-CHXGKH (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )LUNA

Click highlighted areas on diagram

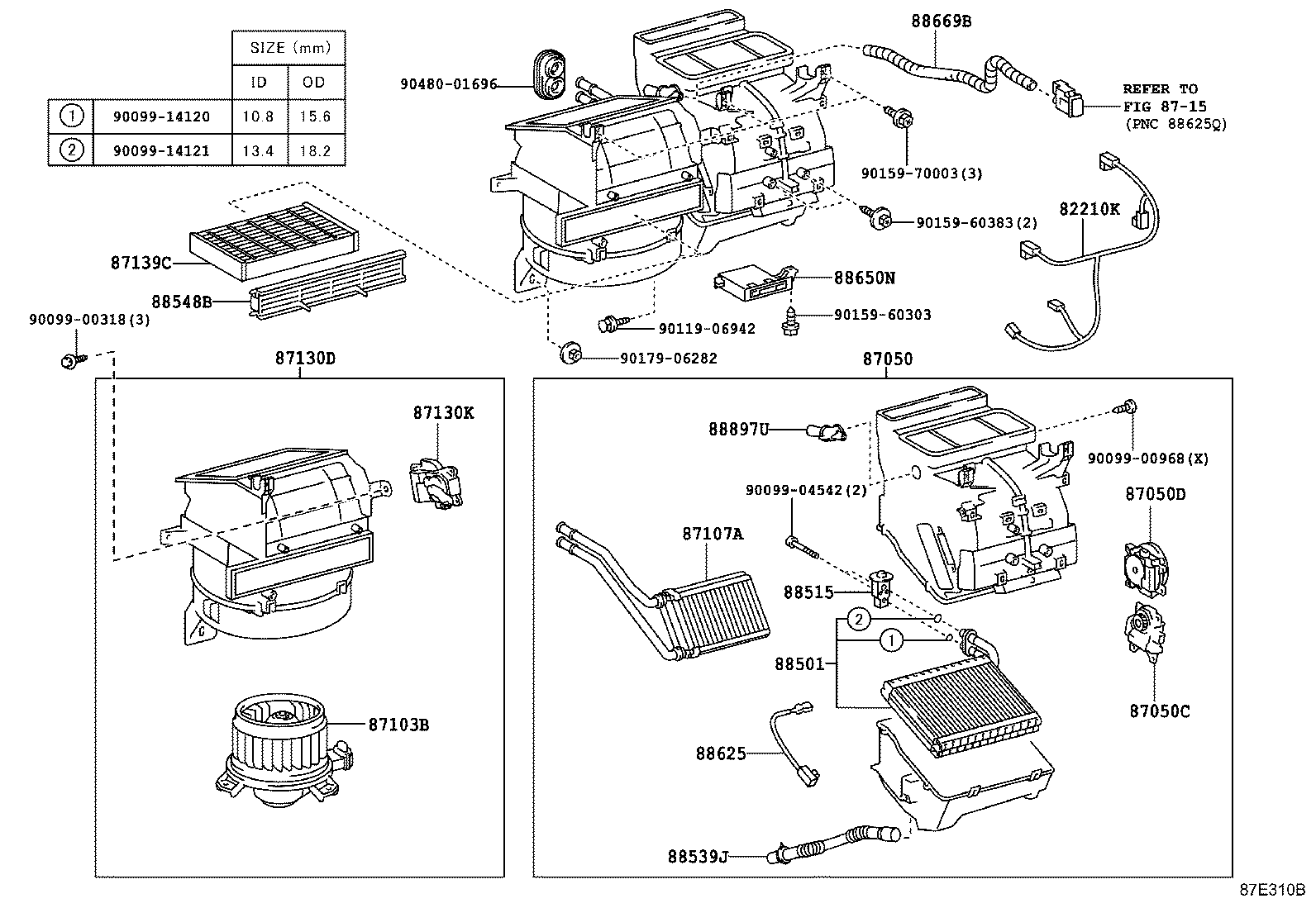

AUTO AIR CONDITIONER

diagram 82210K 87050 87050C 87050D 87103B 87107A 87130D 87130K 87139C 8715 88501 88515 88539J 88548B 88625 88650N 88669B 88897U 9009900318 9009900968 9009904542 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52030

NCP120..LUNA

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52141

NCP120..LUNA

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-52080

NCP120..LUNA

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-52090

NCP120..LUNA

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52131

NCP120..LUNA

 1
87103-52132

NCP120..LUNA

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP120

 1
87130D - BLOWER ASSY
87130-52061

NCP120..LUNA

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52100

NCP120..LUNA

 1
87139C - FILTER, CLEAN AIR
87139-30040

NCP120

POLLEN FILTER

 1
87139-50100

NCP120

*DPF

 1
87139-52020

NCP120

MICRO DUST FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52102

NCP120

 1
88501-52103

NCP120

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP120

 1
88539J - HOSE, DRAIN COOLER
88539-52030

NCP120

 1
88539-52020

NCP120

 1
88548B - CASE, AIR FILTER
88548-52040

NCP120

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP120

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52A10

NCP120..LUNA

 1
88650-52710

NCP120..LUNA

 1
88669B - HOSE, COOLER AIR
88669-52050

NCP120..LUNA

 1
88897U - PIPE, ASPIRATOR
88897-32090

NCP120..LUNA

 1
Common parts
90099-00318
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715
